Subwoofer Speaker: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH loadspace trim panel. Refer to: Loadspace Trim Panel .

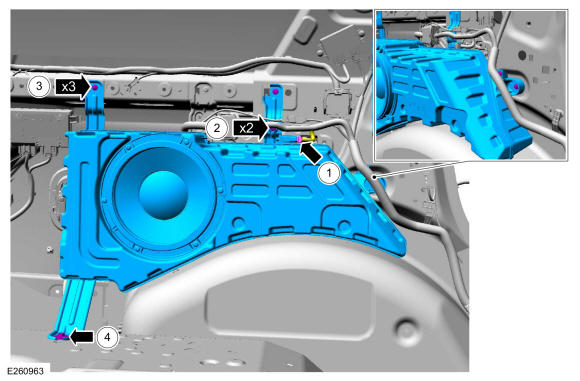

  2. Remove the subwoofer speaker.

    1. Disconnect the electrical connector.
    2. Separate the wire harness guides.
    3. Remove the upper and forward subwoofer bolts.

      Torque: 62 lb.in (7 Nm)

    4. Remove the lower subwoofer bolt.

      Torque: 62 lb.in (7 Nm)

GFD274580Courtesy of FORD MOTOR COMPANY
