Rear Passenger Entertainment Control Panel: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

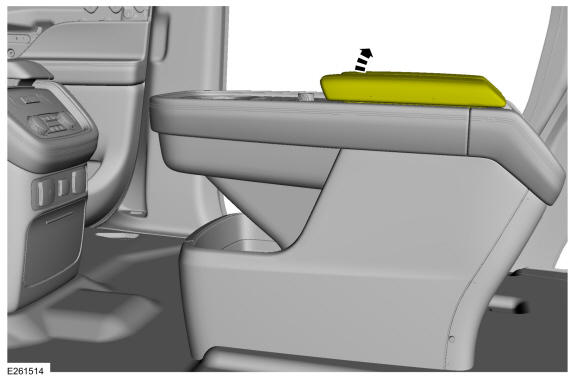

Raise the armrest.
Courtesy of FORD MOTOR COMPANY

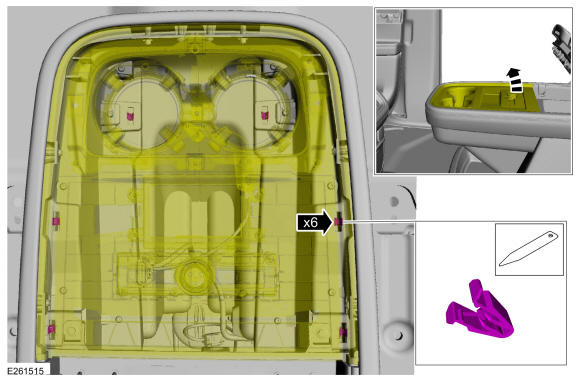

Release the clips and position the rear console top panel up. Use the General Equipment: Interior Trim Remover.
Courtesy of FORD MOTOR COMPANY

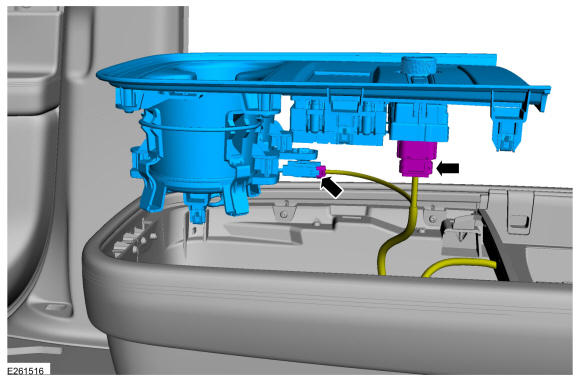

Disconnect the electrical connectors and remove the rear console top panel.
Courtesy of FORD MOTOR COMPANY

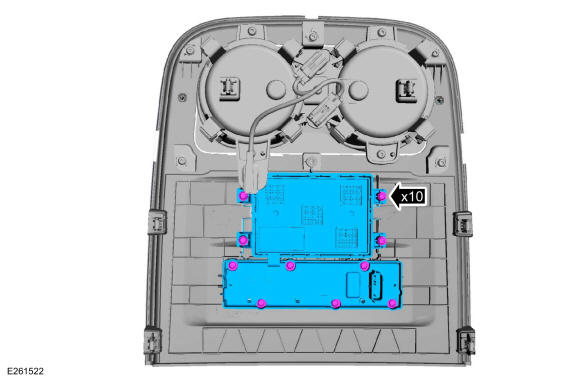

Remove the screws and the rear passenger entertainment control panel.
