Rear Audio Control Module (RACM): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

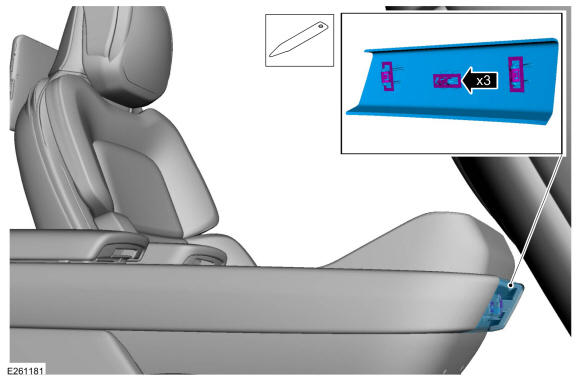

  1. Release the clips and remove the front floor console trim panel. Use the General Equipment: Interior Trim Remover.
    GFD271169Courtesy of FORD MOTOR COMPANY

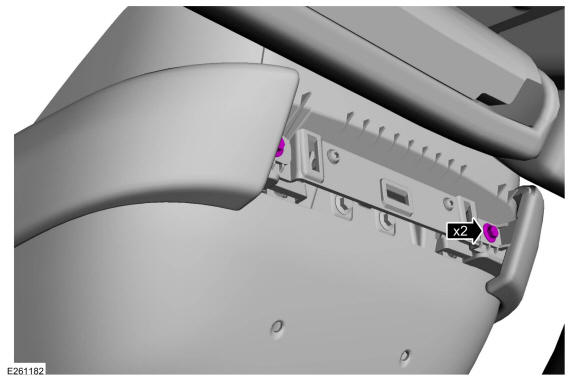

  2. Remove the bolts.
    GFD271170Courtesy of FORD MOTOR COMPANY

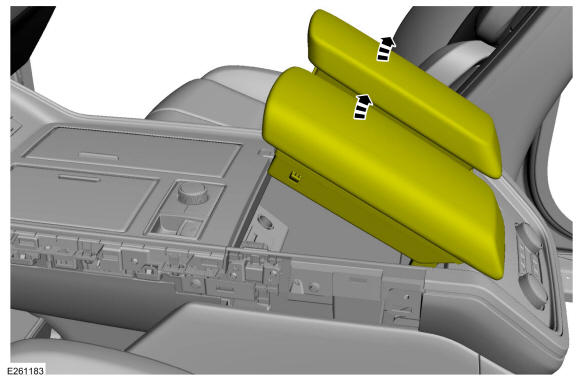

  3. Position the floor console armrest.
    GFD274397Courtesy of FORD MOTOR COMPANY

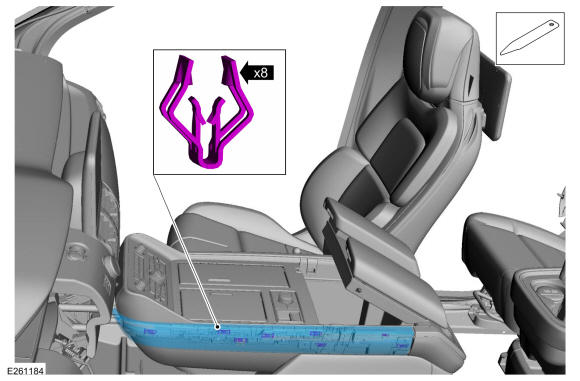

  4. On both sides Release the clips and remove the floor console finish panel. Use the General Equipment: Interior Trim Remover.
    GFD274398Courtesy of FORD MOTOR COMPANY

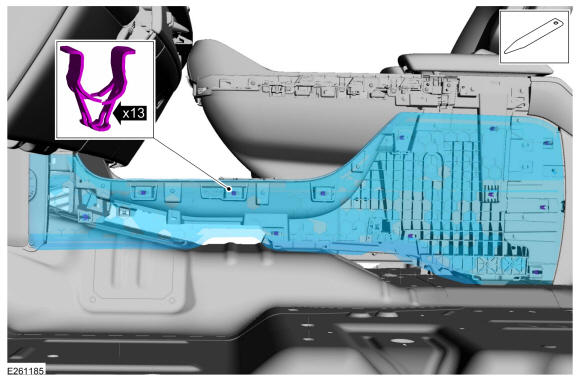

  5. On both sides Release the clips and remove the floor console side trim panel. Use the General Equipment: Interior Trim Remover.
    GFD271171Courtesy of FORD MOTOR COMPANY

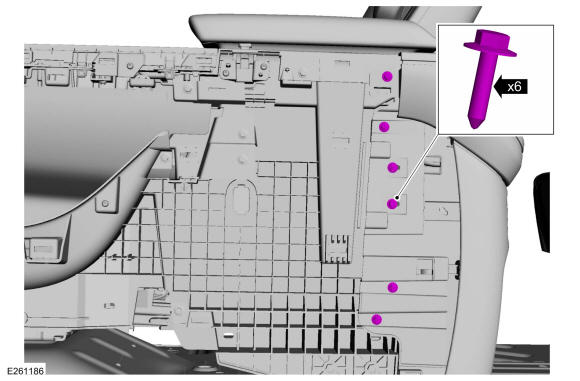

  6. Remove the bolts.
    GFD271172Courtesy of FORD MOTOR COMPANY

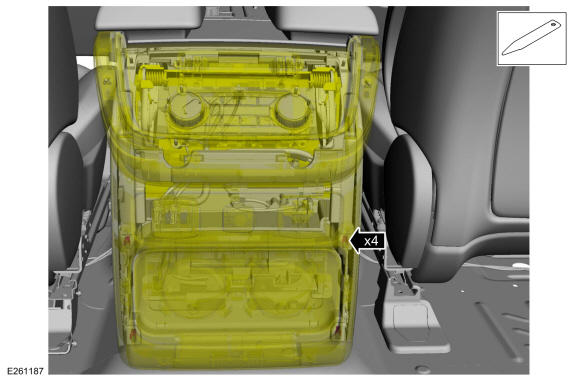

  7. Release the clips and position the floor console rear trim panel out. Use the General Equipment: Interior Trim Remover
    GFD274399Courtesy of FORD MOTOR COMPANY

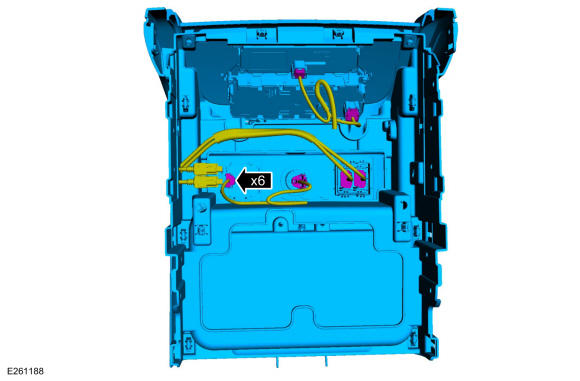

  8. Disconnect the electrical connectors and remove the floor console rear trim panel.
    GFD271173Courtesy of FORD MOTOR COMPANY

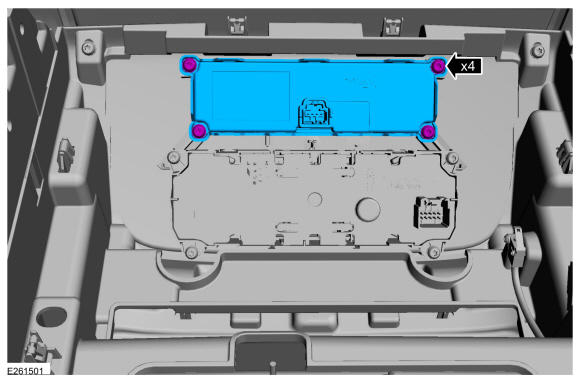

  9. Remove the screws and the RACM.
GFD274568Courtesy of FORD MOTOR COMPANY
