Removal And Installation: Microphone: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with overhead console
- Remove the overhead console. Refer to: Overhead Console .

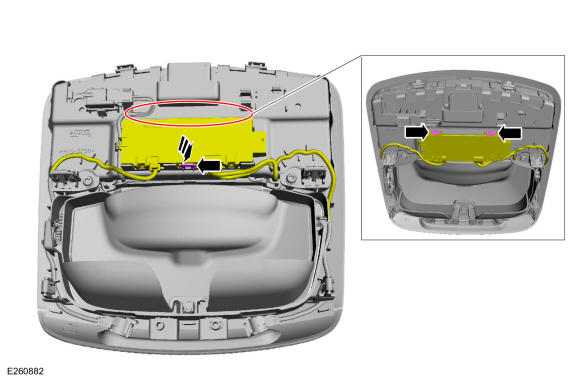

- Release the tabs and position the intrusion sensor module aside.

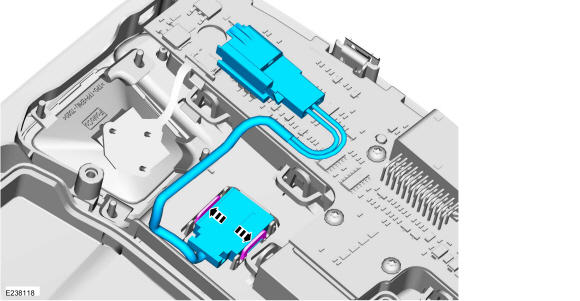

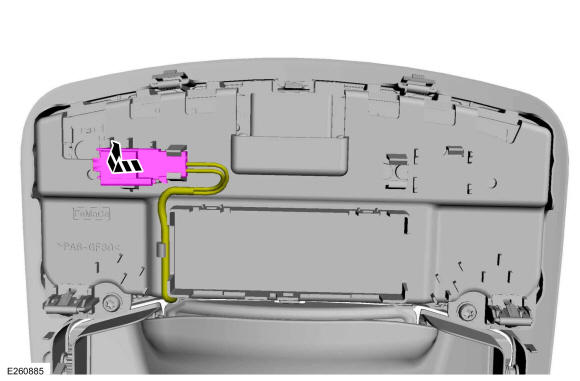

- Release the connector and position the microphone connector and wiring aside.

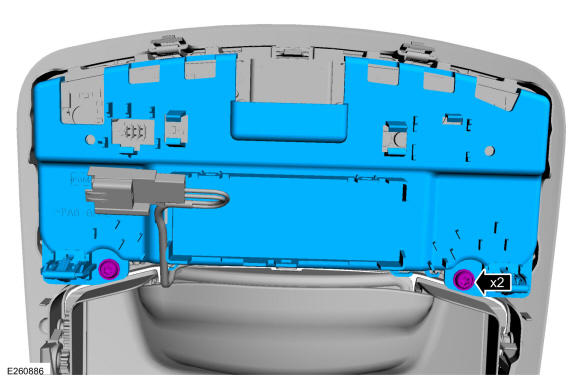

- Release the side tabs, remove the screws and the access cover.
- Release the tabs and remove the microphone.
Vehicles with out overhead console
- Lower the headliner. Refer to: HEADLINER - LOWERING .

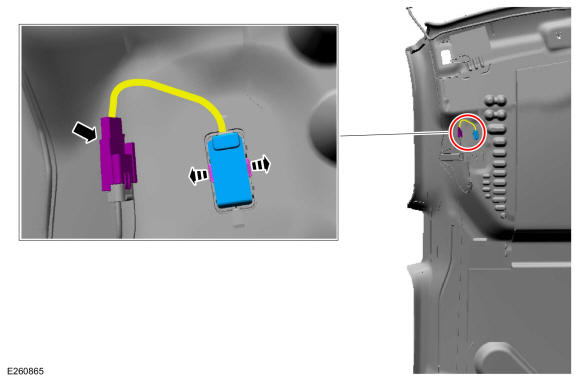

- Disconnect the electrical connector, release the tabs and remove the microphone.
