Compact Disc (CD) Player: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console. Refer to: Floor Console .

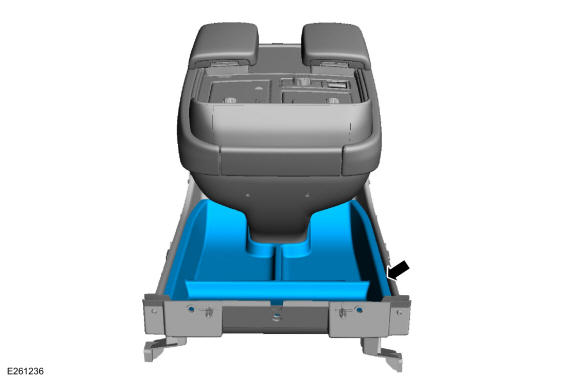

  2. Remove the console liner.
    GFD271153Courtesy of FORD MOTOR COMPANY

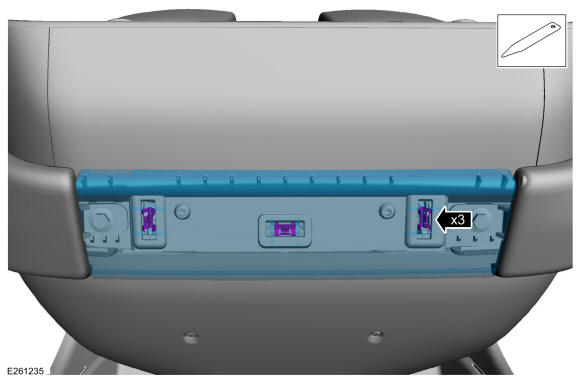

  3. Release the clips and renove the front floor console trim panel. Use the General Equipment: Interior Trim Remover
    GFD271154Courtesy of FORD MOTOR COMPANY

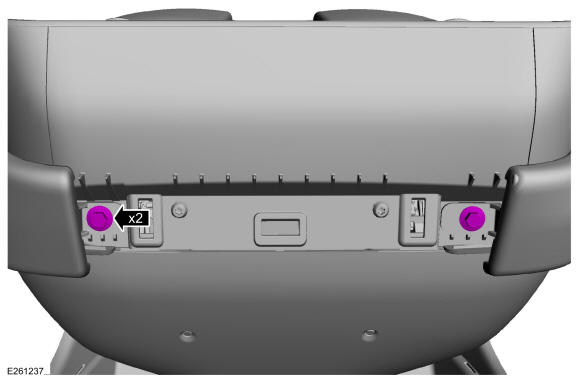

  4. Remove the bolts.
    GFD274550Courtesy of FORD MOTOR COMPANY

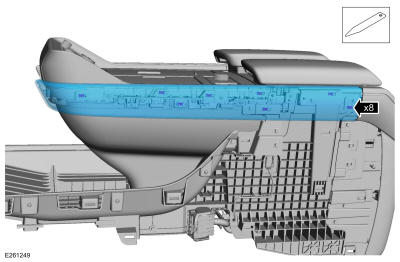

  5. On both sides.Release the clips and remove the upper bezel. Use the General Equipment: Interior Trim Remover.
    GFD274551Courtesy of FORD MOTOR COMPANY

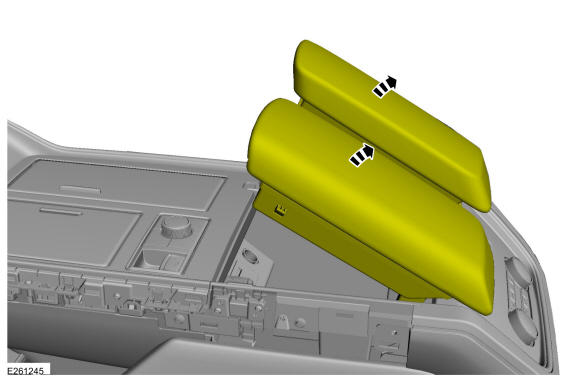

  6. Position the floor console armrest.
    GFD274552Courtesy of FORD MOTOR COMPANY
  7. Remove the front upper console trim panel screws.
    GFD274503Courtesy of FORD MOTOR COMPANY

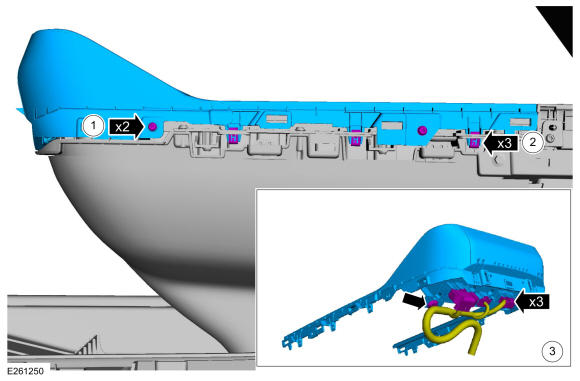

  8. Remove the upper console trim panel.

    1. On both sides. Remove the screws.
    2. On both sides. Release the clips.
    3. Disconnect the electrical connectors and separate the wire harness guide.

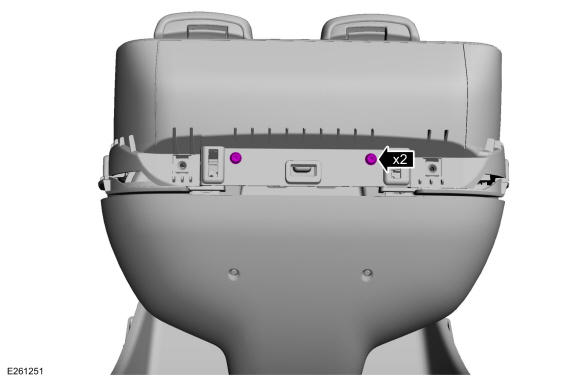

    GFD274504Courtesy of FORD MOTOR COMPANY

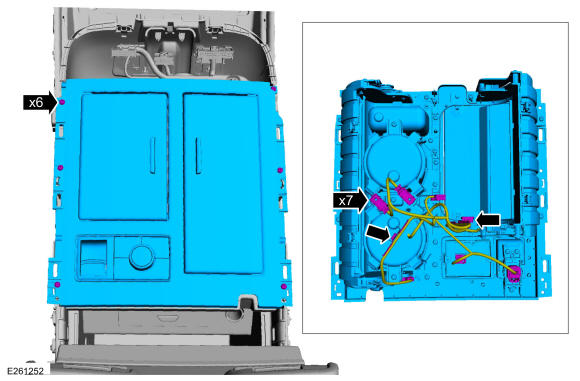

  9. Remove the screws, disconnect the electrical connectors, separate the wire harness guides and remove the console top plate.
    GFD274505Courtesy of FORD MOTOR COMPANY
  10. Remove the screws and the center front floor console mounting bracket.

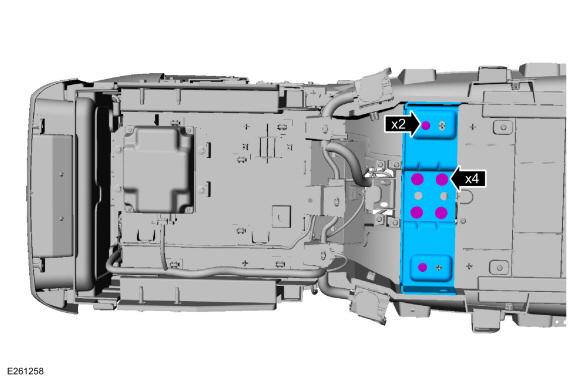

    GFD274553Courtesy of FORD MOTOR COMPANY
  11. Remove the lower tray bottom screws.

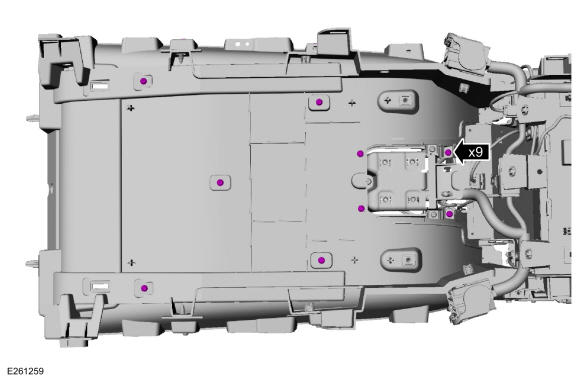

    GFD274554Courtesy of FORD MOTOR COMPANY
  12. Remove the inner tray.

    1. Remove the front screws.
    2. On both sides. Remove the bolt and the screws.
    3. Raise the front of the lower tray and position forward.

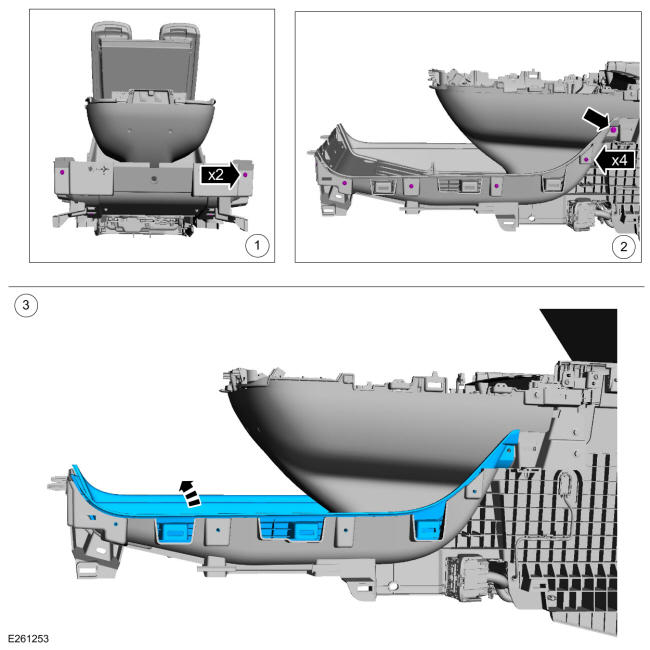

    GFD271155Courtesy of FORD MOTOR COMPANY

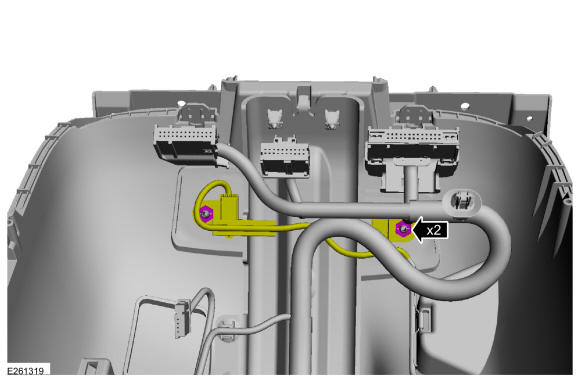

  13. Remove the nuts and position the wire harness aside.
    GFD271156Courtesy of FORD MOTOR COMPANY
  14. Remove the screws from the lower front floor console center trim panel.

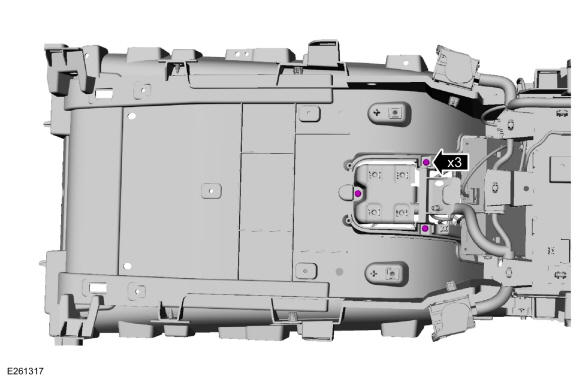

    GFD271157Courtesy of FORD MOTOR COMPANY
  15. Release the tabs and remove the lower front floor console center trim panel.

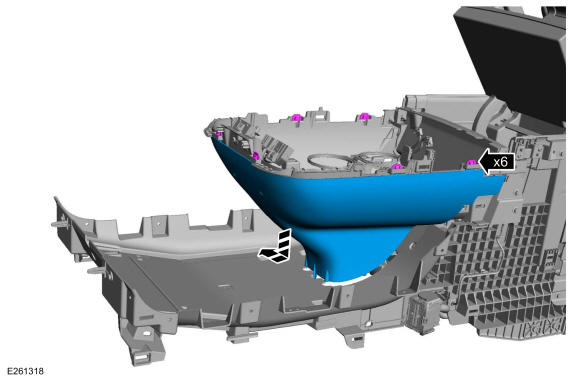

    GFD274555Courtesy of FORD MOTOR COMPANY
  16. On both sides. Remove the screws from the front floor console frame.

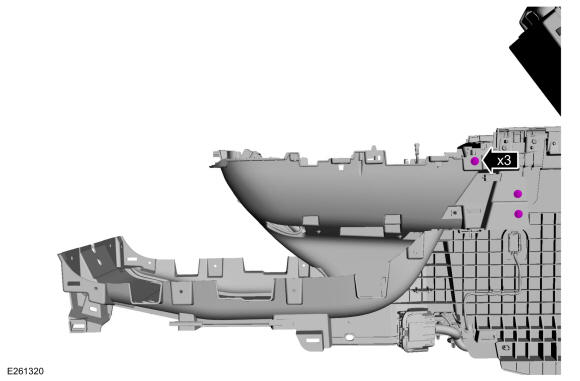

    GFD271158Courtesy of FORD MOTOR COMPANY

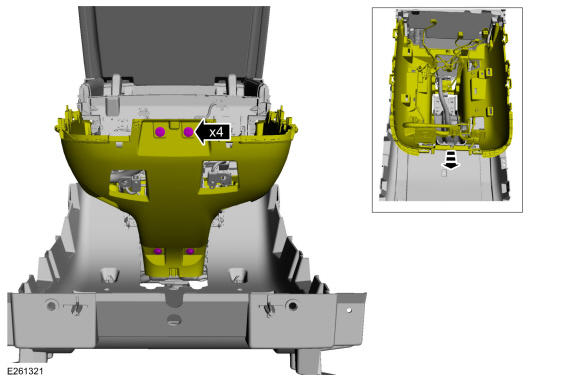

  17. Remove the screws and position the front floor console frame forward.
    GFD271159Courtesy of FORD MOTOR COMPANY
  18. Remove the screws, disconnect the electrical connector and remove the CD player.

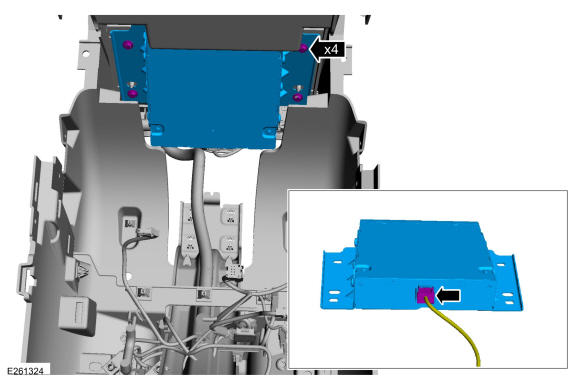

GFD271160Courtesy of FORD MOTOR COMPANY
