Audio Unit Antenna Cable: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The original equipment audio unit antenna cable is part of the wiring harness and cannot be removed. This procedure refers to replacement of the cable only by overlaying the cable.
Front audio unit antenna cable
- Remove the audio front control module. Refer to: Audio Front Control Module (ACM)
- Remove the glove compartment. Refer to: Glove Compartment .

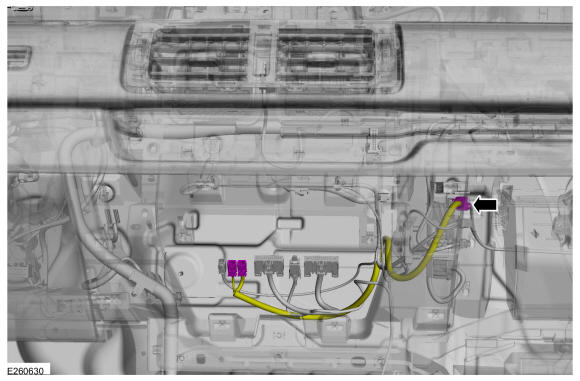

- Disconnect the connectors and remove the front audio unit antenna cable.
Rear audio unit antenna cable
- Remove the glove compartment. Refer to: Glove Compartment .
- Remove the following components for access to the rear audio unit antenna cable.
- Refer to: A-Pillar Trim Panel .
- Refer to: B-Pillar Trim Panel .
- Refer to: C-PILLAR TRIM PANEL .
- Refer to: Loadspace Trim Panel .
- Remove both front seats.
- Refer to: Floor Console .
- Remove the body control module (BCM).
- Remove the front carpet.

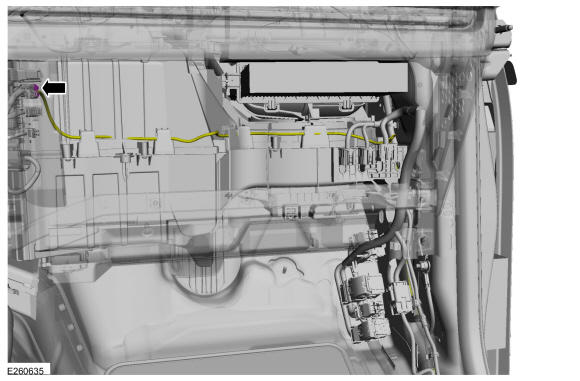

- Disconnect the front antenna cable connector.

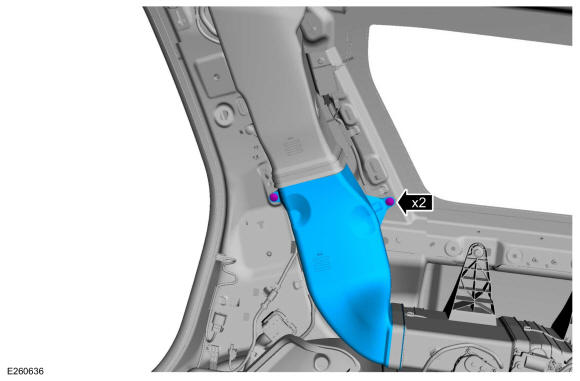

- If equipped.Remove the pin-type retainers and the RH air duct.

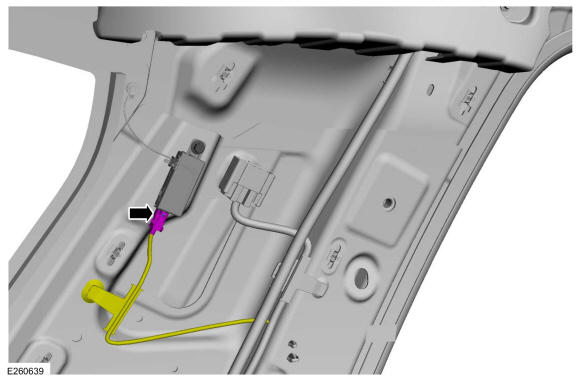

- Disconnect the LH audio unit antenna cable connector.

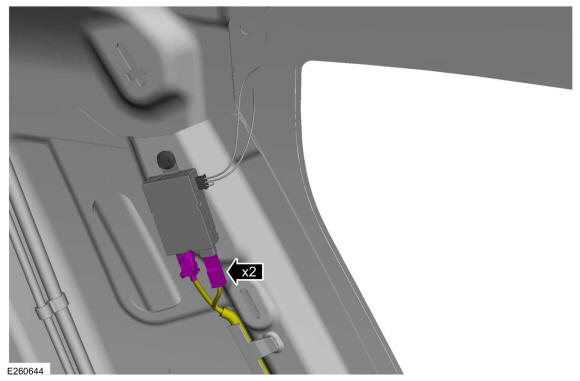

- Disconnect the RH audio unit antenna cable connectors.
