Audio Front Control Module (ACM): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using the diagnostic scan tool, begin the PMI process for the ACM following the on-screen instructions.

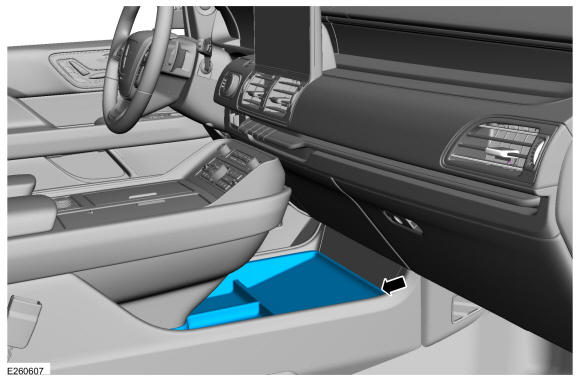

Remove the floor console liner.

Courtesy of FORD MOTOR COMPANY

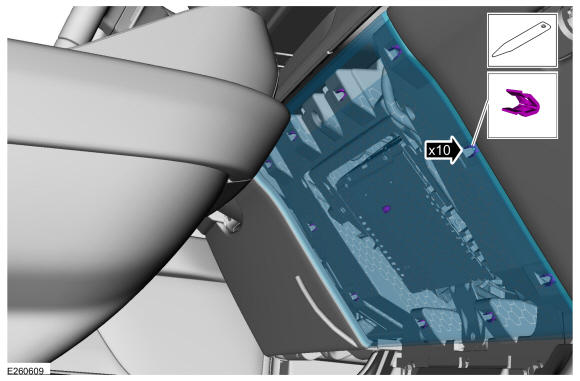

Release the clips and remove the floor console to instrument panel trim panel. Use the General Equipment: Interior Trim Remover.

Courtesy of FORD MOTOR COMPANY

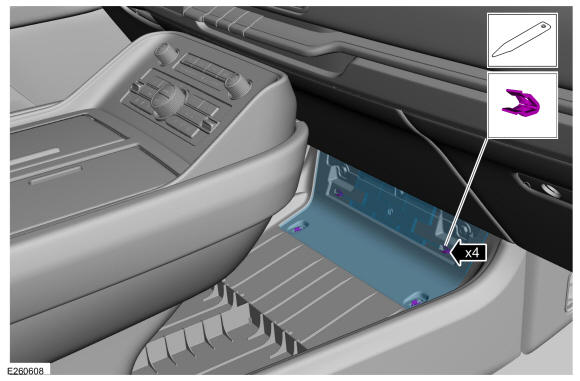

Release the clips and remove the instrument panel center lower trim panel. Use the General Equipment: Interior Trim Remover.

Courtesy of FORD MOTOR COMPANY

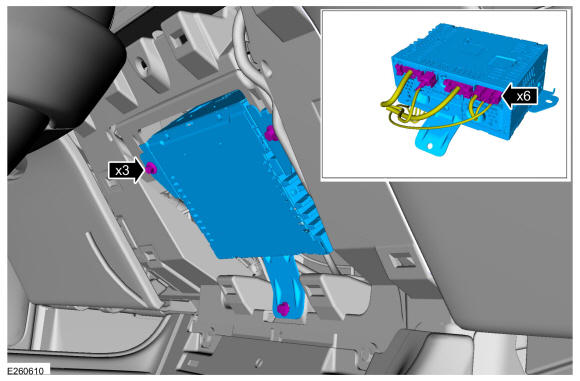

Remove the screws, disconnect the connectors and remove the ACM.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
