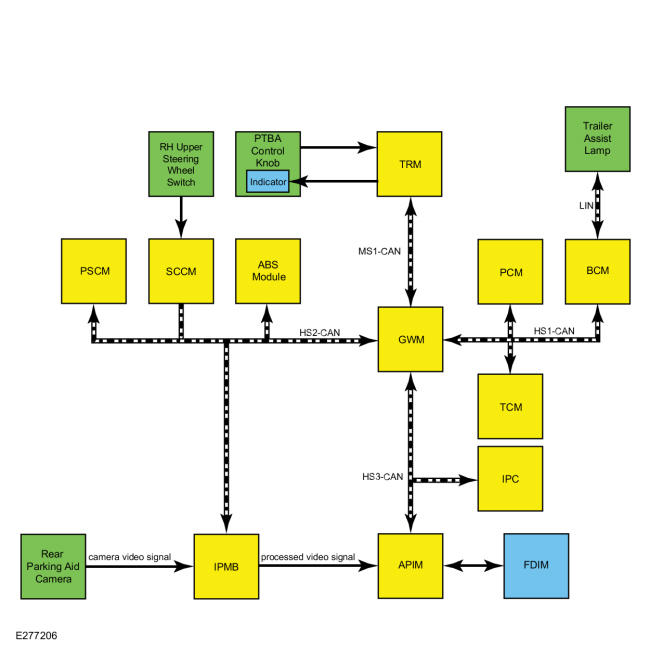

Pro Trailer Backup Assist™ System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
FDIM |
| 2 |
camera video signal |
| 3 |
processed video signal |
| 4 |
PCM |
| 5 |
TCM |
| 6 |
ABS Module |
| 7 |
PSCM |
| 8 |
GVW |
| 9 |
APIM |
| 10 |
Rear parking aid camera |
| 11 |
IPMB |
| 12 |
IPC |
| 13 |
SCCM |
| 14 |
TRM |
| 15 |
BCM |
| 16 |
PTBA control knob |
| 17 |
Indicator |
| 18 |
RH upper steering wheel switch |
| 19 |
Trailer assist lamp |
