Shifter Fork And Shifter Rod

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

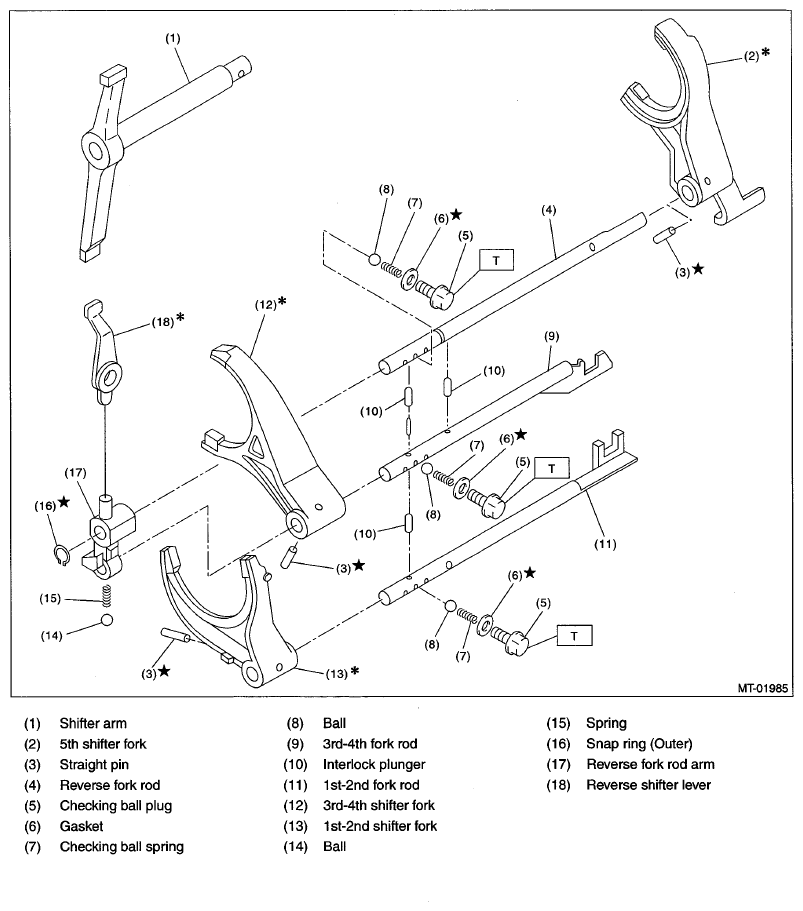

Fig 1: Exploded View Of Shifter Fork And Shifter Rod With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 20 (2.0, 14.8)
