Drive Pinion Shaft Assembly: Disassembly

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Attach a cloth to the end of driven shaft (on the frictional side of the thrust needle bearing) to prevent damage during disassembly or reassembly.
  1. Flatten the tab of the lock nut. Remove the lock nut with ST1, ST2 and ST3.

    ST1 899884100 HOLDER

    ST2 498427100 STOPPER

    ST3 899988608 SOCKET WRENCH (27)

    Fig 1: Removing Lock Nut With ST1, ST2 And ST3
    G07666046Courtesy of SUBARU OF AMERICA, INC.
  2. Draw out the drive pinion shaft from driven shaft. Remove the differential bevel gear sleeve, adjusting washer No. 1, adjusting washer No. 2, thrust bearing, needle bearing and drive pinion collar.

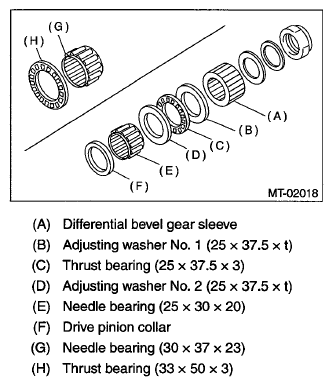

    Fig 2: Exploded View Of Drive Pinion Shaft Assembly
    G07666047Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the roller bearing and washer using ST and a press.
    NOTE: Do not reuse the roller bearing.

    ST 498077000 REMOVER

    Fig 3: Removing Roller Bearing And Washer Using ST
    G07666048Courtesy of SUBARU OF AMERICA, INC.
  4. Flatten the tab of the lock nut. Remove the lock nut using ST1 and ST2.

    ST1 499987300 SOCKET WRENCH (50)

    ST2 899884100 HOLDER

    Fig 4: Removing Lock Nut Using ST1 And ST2
    G07666049Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the 5th driven gear using ST.

    ST 499857000 5TH DRIVEN GEAR REMOVER

    Fig 5: Removing 5th Driven Gear Using ST
    G07666050Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the woodruff key.
  7. Remove the roller bearing and 3rd-4th driven gear using ST1 and ST2.

    ST1 499757002 INSTALLER

    ST2 899714110 REMOVER

    Fig 6: Removing Roller Bearing And 3rd-4th Driven Gear Using ST1 And ST2
    G07666051Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the key.
  9. Remove the 2nd driven gear, inner baulk ring, synchro cone and outer baulk ring.
    Fig 7: 2nd Driven Gear, Synchro Cone, Inner And Outer Baulk Ring
    G07666052Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the 1st driven gear, inner baulk ring, synchro cone, outer baulk ring, 2nd gear bushing, gear and hub using ST1 and ST2.
    Fig 8: 1st Driven Gear, Synchro Cone, Inner And Outer Baulk Ring
    G07666053Courtesy of SUBARU OF AMERICA, INC.
    NOTE: If necessary, use a new gear and hub assembly as a set, when replacing the gear or hub. Because these must engage at the specified point, avoid disassembly as much as possible. If it must be disassembled, mark the engaging point on the spline beforehand.

    ST1 499757002 INSTALLER

    ST2 899714110 REMOVER

    Fig 9: Removing 1st Driven Gear And 2nd Gear Bushing Using Installer ST1 499757002 And Remover ST2 899714110
    G07666054Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the sub gear, washer and snap ring (outer) of the 1st driven gear.
