Rear Parking Aid Camera: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the reversing lamp assembly.
  2. Disconnect the co-ax cable connector.
    GFD274443Courtesy of FORD MOTOR COMPANY

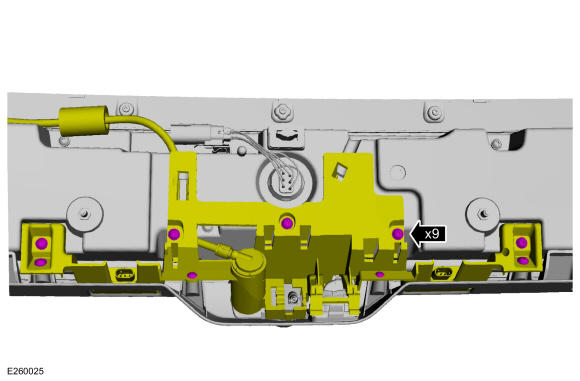

  3. Remove the screws and position the bracket aside.
    GFD274444Courtesy of FORD MOTOR COMPANY

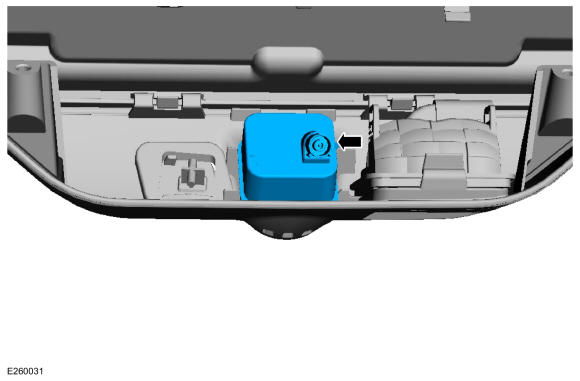

  4. Remove the rear view camera.
GFD274445Courtesy of FORD MOTOR COMPANY
