Rear Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper cover.

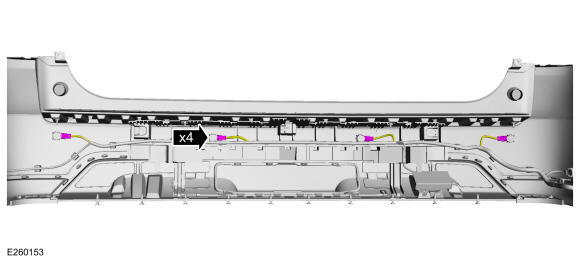

  2. Disconnect the rear parking aid sensor.
    GFD274424Courtesy of FORD MOTOR COMPANY

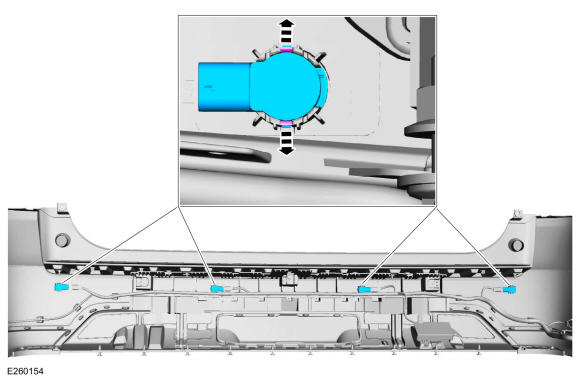

  3. Release the tabs and remove the rear parking aid sensor.
GFD274425Courtesy of FORD MOTOR COMPANY
