Removal And Installation: Horn: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the upper active grill shutter. Refer to: Active Grille Shutter .

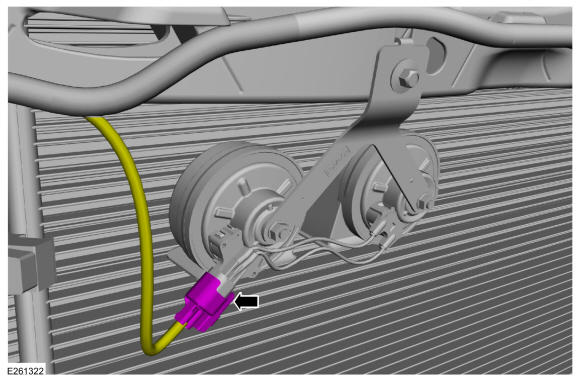

  2. Disconnect the horn electrical connector.
    GFD271135Courtesy of FORD MOTOR COMPANY

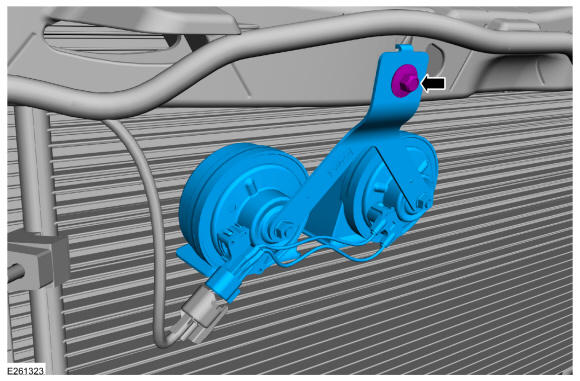

  3. Remove the bolt and the horn.

    Torque: 26 lb.ft (35 Nm)

GFD271136Courtesy of FORD MOTOR COMPANY
