Instrument Panel Cluster (IPC): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Using a diagnostic scan tool, begin the PMI process for the IPC following the on-screen instructions. Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.

  2. Remove the FDIM. Refer to: Front Display Interface Module (FDIM) .
  3. Remove the light assembly.

    1. Release the clips and position the light assembly.
    2. Disconnect the electrical connector.

    GFD274328Courtesy of FORD MOTOR COMPANY
  4. Remove the screws, disconnect the electrical connector and remove the transmission control switch assembly.

    Torque: 22 lb.in (2.5 Nm)

    GFD274329Courtesy of FORD MOTOR COMPANY
  5. Remove the RH instrument panel trim cover.
    GFD274330Courtesy of FORD MOTOR COMPANY
  6. Release the clips and remove the RH trim cover.
    GFD274331Courtesy of FORD MOTOR COMPANY
  7. Remove the screws, separate the clips and position the center instrument panel trim panel forward.

    Torque: 22 lb.in (2.5 Nm)

    GFD274332Courtesy of FORD MOTOR COMPANY

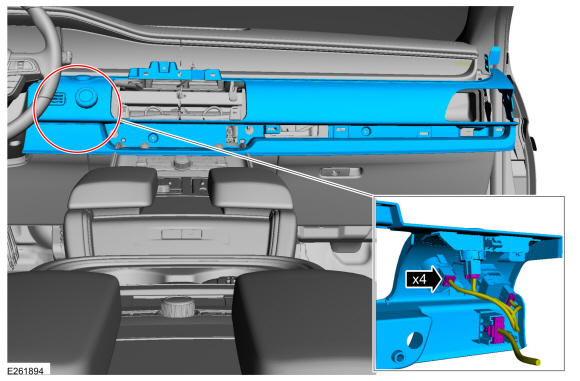

  8. Disconnect the electrical connectors and remove the center instrument panel trim panel.
    GFD271129Courtesy of FORD MOTOR COMPANY

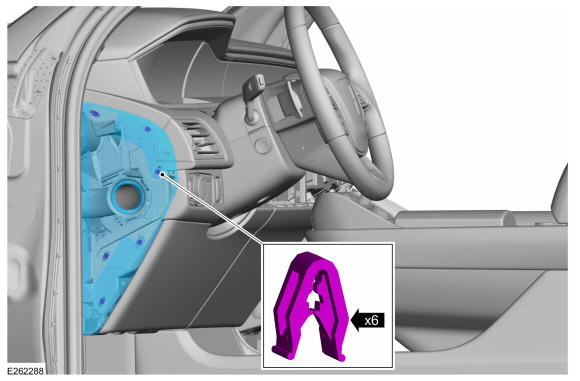

  9. Remove the LH instrument panel trim cover.
    GFD271130Courtesy of FORD MOTOR COMPANY

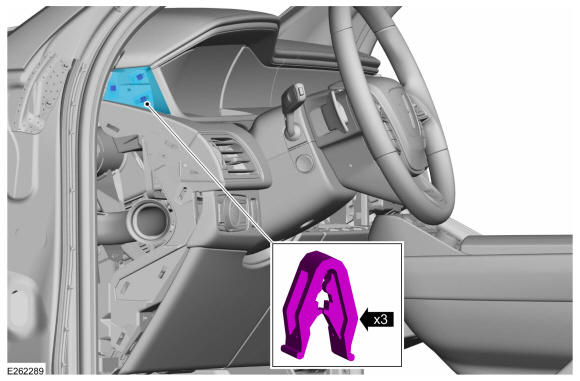

  10. Release the clips and remove the LH trim cover.
    GFD271131Courtesy of FORD MOTOR COMPANY

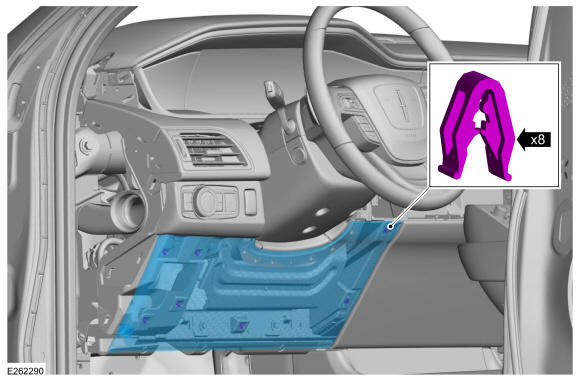

  11. Release the clips and remove the lower steering column trim panel.
    GFD271132Courtesy of FORD MOTOR COMPANY

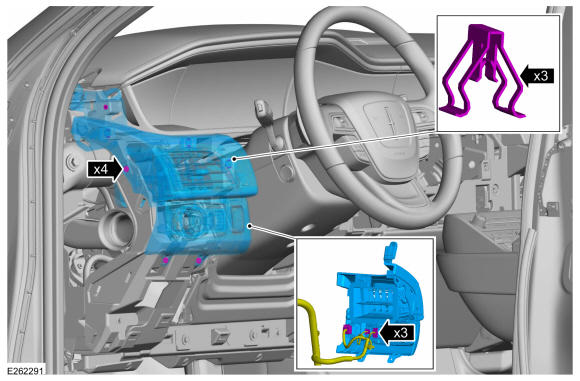

  12. Remove the LH instrument panel finish panel.

    • Remove the bolts and release the clips.

      Torque: 22 lb.in (2.5 Nm)

    • Disconnect the electrical connector.

    GFD271133Courtesy of FORD MOTOR COMPANY

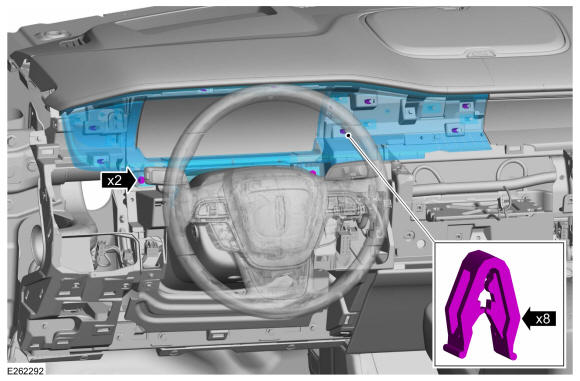

  13. Remove the bolts, release the clips and remove the IPC bezel.

    Torque: 22 lb.in (2.5 Nm)

    GFD271134Courtesy of FORD MOTOR COMPANY

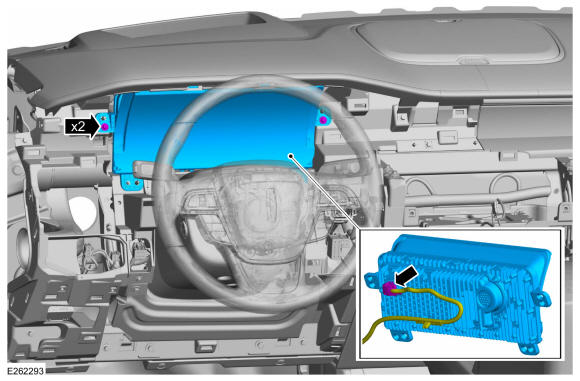

  14. Remove the IPC.

    • Remove the bolts.

      Torque: 22 lb.in (2.5 Nm)

    • Disconnect the electrical connector.

GFD274412Courtesy of FORD MOTOR COMPANY
