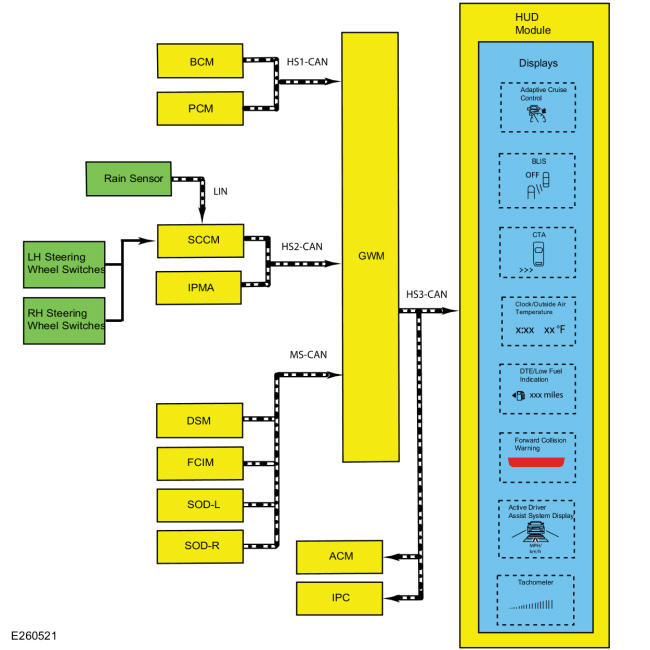

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | BCM |
| 2 | GWM |
| 3 | SODR |
| 4 | SODL |
| 5 | DSM |
| 6 | PCM |
| 7 | LH steering wheel switches |
| 8 | SCCM |
| 9 | FCIM |
| 10 | RH steering wheel switches |
| 11 | HUD module |
| 12 | Rain sensor |
| 13 | IPC |
| 14 | ACM |
| 15 | IPMA |
| 16 | Displays |
| 17 | Adaptive cruise control |
| 18 | DTE/low fuel indication |
| 19 | Forward collision warning |
| 20 | Tachometer |
| 21 | Clock/outside air temperature |
| 22 | Active driver assist system display |
| 23 | CTA |
| 24 | BLIS |
