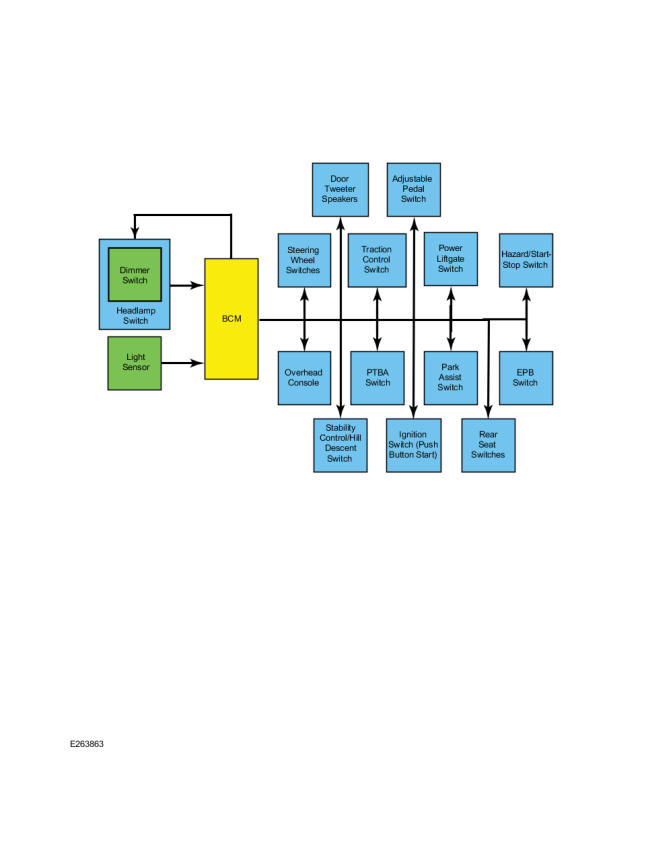

System Diagram - Non-Networked Illumination
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Adjustable Pedal Switch |
| 2 | Door Tweeter Speakers |
| 3 | Light Sensor |
| 4 | BCM |
| 5 | Park Assist Switch |
| 6 | Overhead Console |
| 7 | PTBA Switch |
| 8 | EPB Switch |
| 9 | Seat Switches |
| 10 | Start-Stop Switch |
| 11 | Sunshade Switch |
| 12 | Power Liftgate Switches |
| 13 | Steering Wheel Switches |
| 14 | Dimmer Switch |
| 15 | Headlamp Switch |
| 16 | Ignition Switch (Push Button Start) |
