Rear Evaporator: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear climate control housing. Refer to: Rear Climate Control Housing .

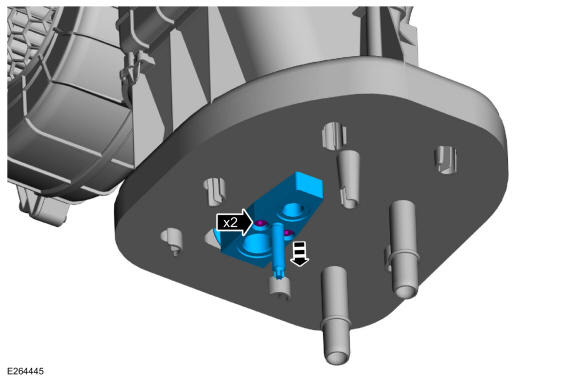

- Remove the bolts and the rear thermostatic expansion valve.
- Make sure to cover any open ports to prevent debris from entering the system.
Torque: 71 lb.in (8 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.

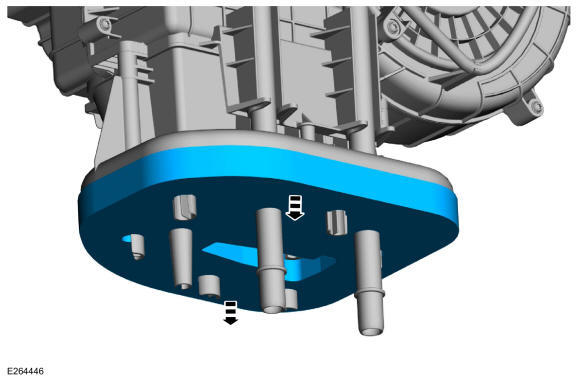

- Remove the seal.

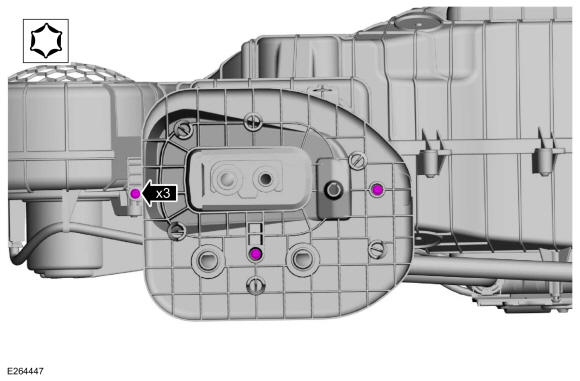

- Remove the retainers.

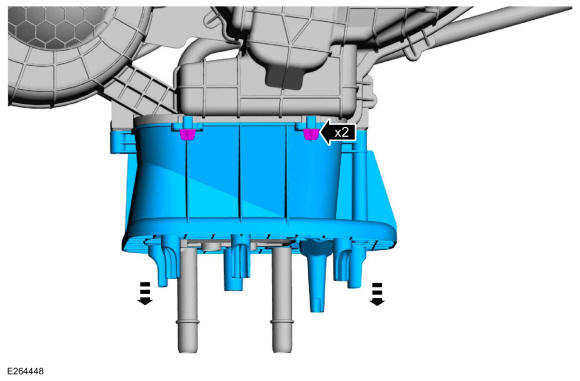

- Release the clips and remove the flange housing.

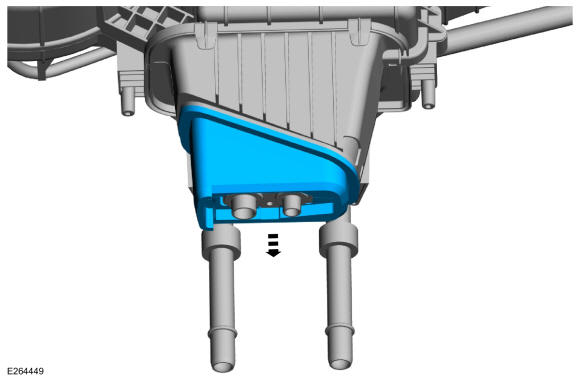

- Remove the seal.

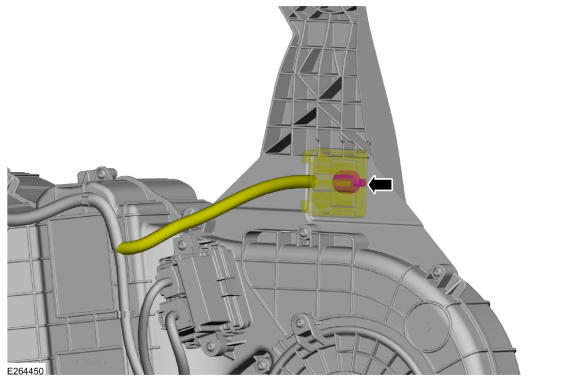

- Detach the wiring harness.

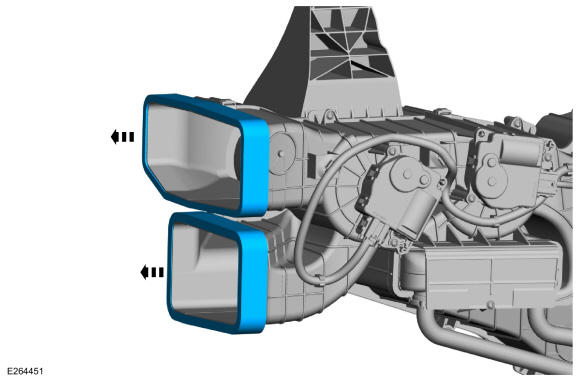

- Remove the seals.

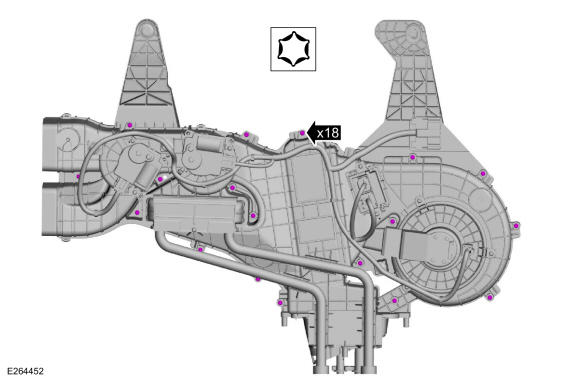

- Remove the retainers.

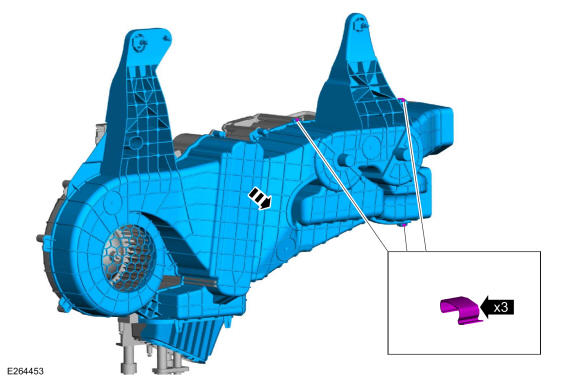

- Remove the clips and separate the rear climate control housing.

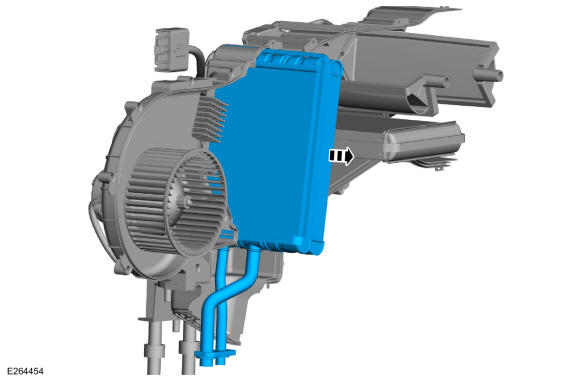

- Remove the rear evaporator.
