Rear Blower Motor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the RH loadspace trim panel. Refer to:LOADSPACE TRIM PANEL .

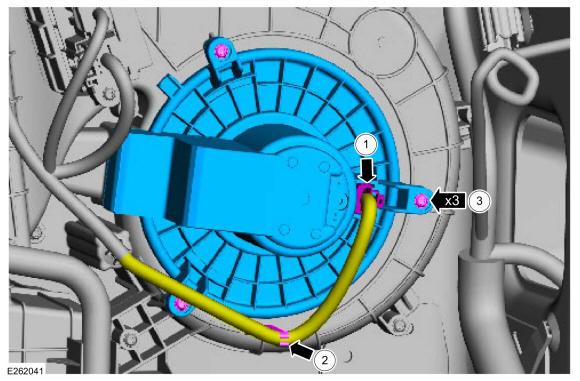

1. Disconnect the blower motor electrical connector.
2. Detach the rear blower motor wiring harness.
3. Remove the retainers and the rear blower motor.

Courtesy of FORD MOTOR COMPANY
