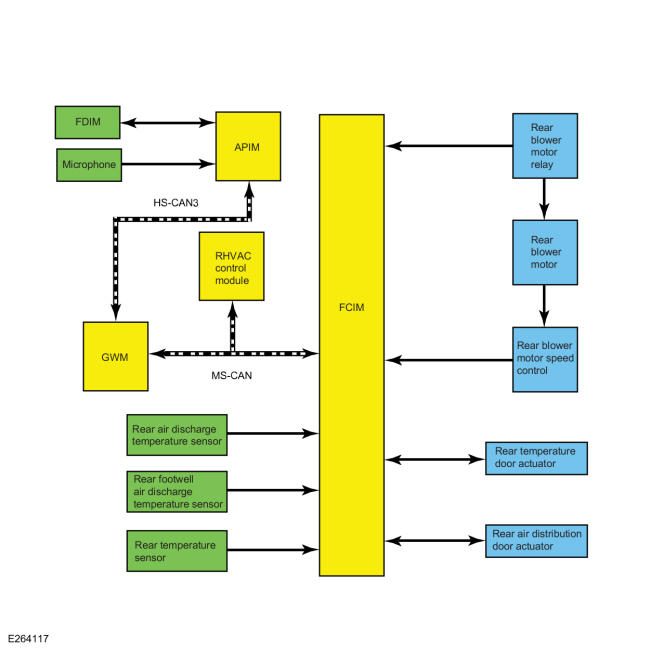

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | FCIM |
| 2 | Rear blower motor relay |
| 3 | Rear air discharge temperature sensor |
| 4 | APIM |
| 5 | Rear temperature door actuator |
| 6 | FDIM |
| 7 | Microphone |
| 8 | Rear footwell air discharge temperature sensor |
| 9 | Rear temperature sensor |
| 10 | Rear blower motor |
| 11 | Rear blower motor speed control |
| 12 | Rear air distribution door actuator |
| 13 | GWM |
| 14 | RHVAC control module |
