Passenger Side Register: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the FDIM.
Refer to: FRONT DISPLAY INTERFACE MODULE (FDIM)

Remove the light assembly.

Release the clips and position the light assembly.

Disconnect the electrical connector.

Courtesy of FORD MOTOR CO.

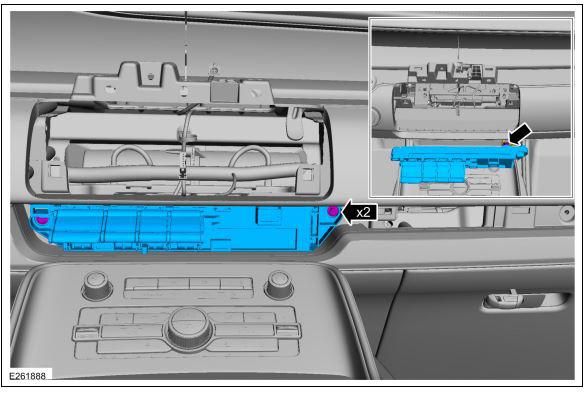

Remove the screws, disconnect the electrical connector and remove the transmission control switch assembly.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR CO.

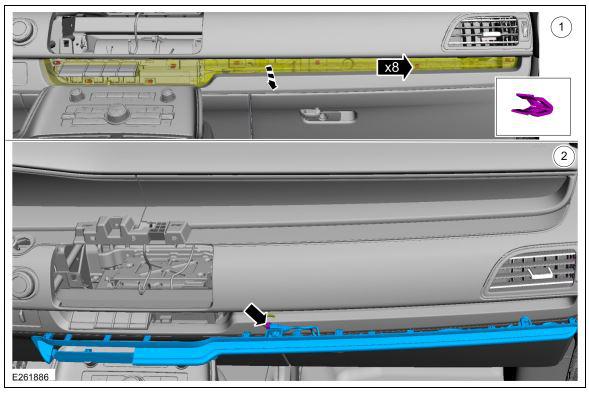

Remove the RH instrument panel trim cover.

Courtesy of FORD MOTOR CO.

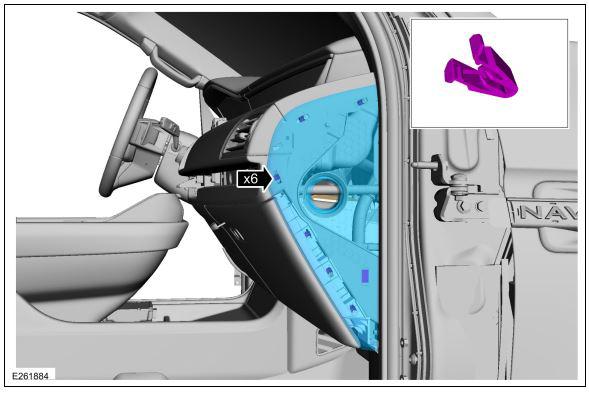

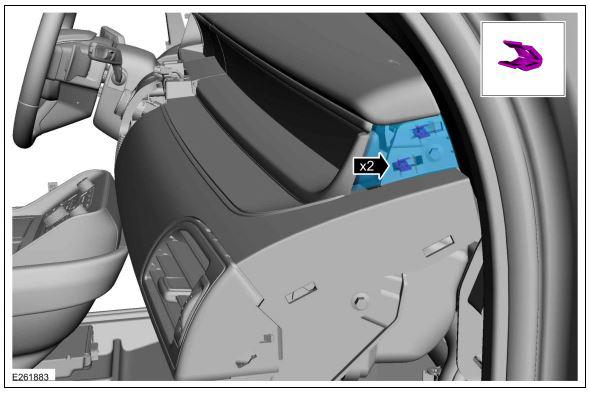

Release the clips and remove the RH trim cover.

Courtesy of FORD MOTOR CO.

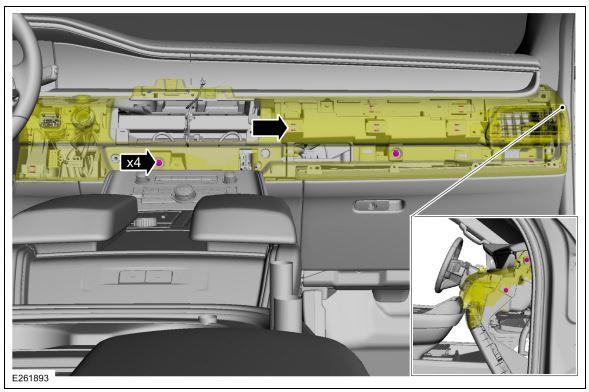

Remove the screws, separate the clips and position the center instrument panel trim panel forward.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR CO.

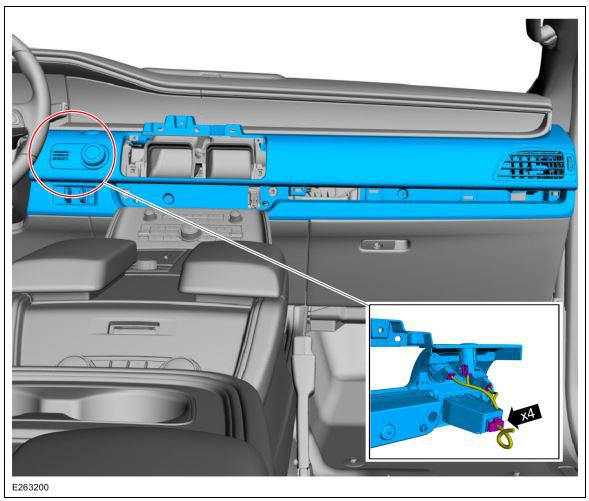

Disconnect the electrical connectors and remove the center instrument panel trim panel.

Courtesy of FORD MOTOR CO.

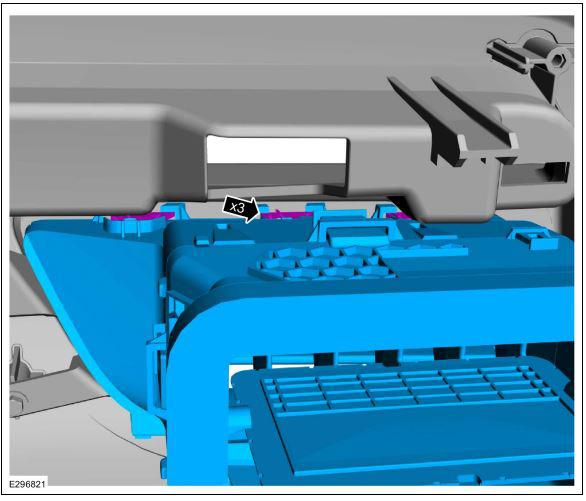

Release the top retaining clips.

Courtesy of FORD MOTOR CO.

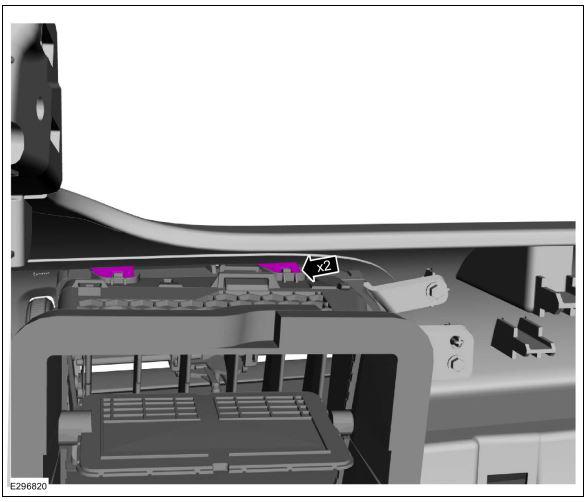

Release the retaining clips along the bottom and remove the passenger side register.

Courtesy of FORD MOTOR CO.
