Driver Side Register Air Discharge Temperature Sensor: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the sunload sensor and disconnect the electrical connector. Use the General Equipment: Interior Trim Remover.
- Release the clips and remove the instrument panel center speaker grille. Use the General Equipment: Interior Trim Remover.
- Remove the screws and position the instrument panel center speaker up.
Torque: 22 lb.in (2.5 Nm)
- Disconnect the electrical connector and remove the instrument panel center speaker.

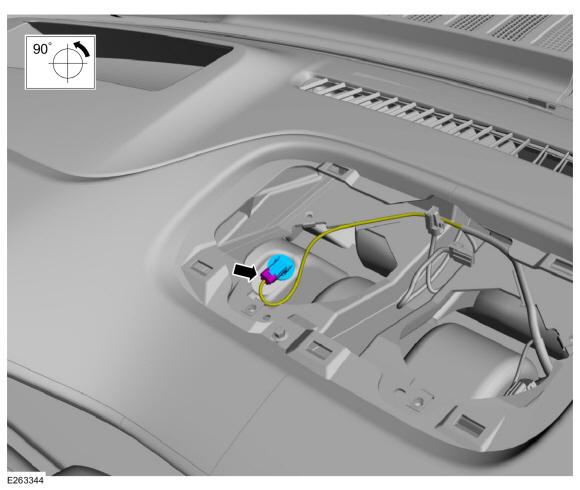

- Disconnect the electrical connector and remove the driver side register air discharge temperature sensor.
