Desiccant Bag: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Installation of a new desiccant bag is not required when repairing the A/C system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver/drier desiccant bag. It is not necessary to add additional dye to the refrigerant system, the new receiver/drier desiccant bag comes with a new dye pellet. Damage to the receiver/drier desiccant bag includes physical damage to the receiver/drier desiccant bag or moisture contamination. Moisture contamination results only from a complete loss of refrigerant and equalization of the refrigerant system pressure with atmospheric pressure for a period longer than one hour. If even a slight amount of positive refrigerant pressure is present in the system before repairs are carried out, the receiver/drier desiccant bag should not be replaced.
- Remove the condenser. Refer to: Condenser .

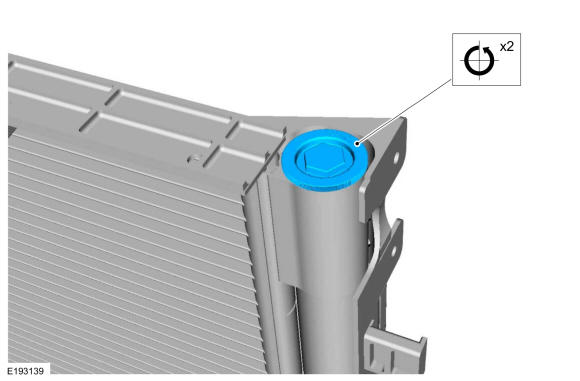

- Remove the receiver/drier cap.

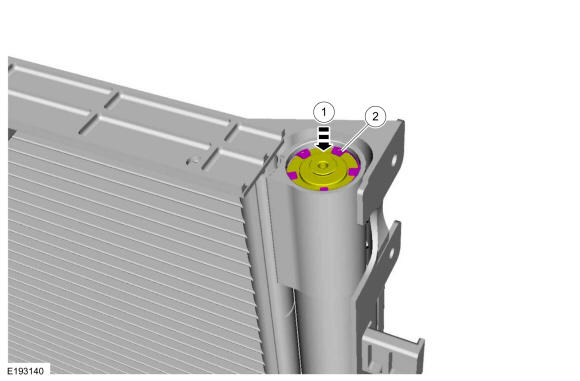

- Push the receiver drier plug upwards and remove the receiver drier plug snap ring.

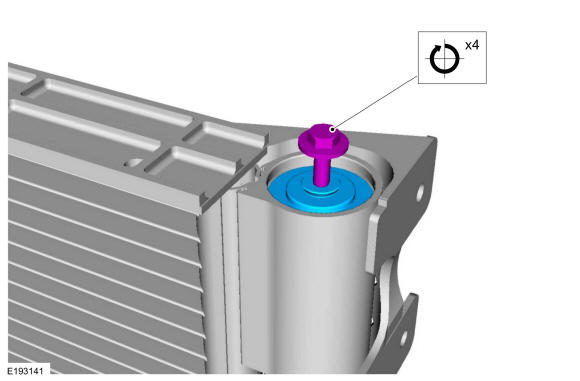

- Install an M5 bolt in the center of the receiver drier plug and remove the receiver drier plug.

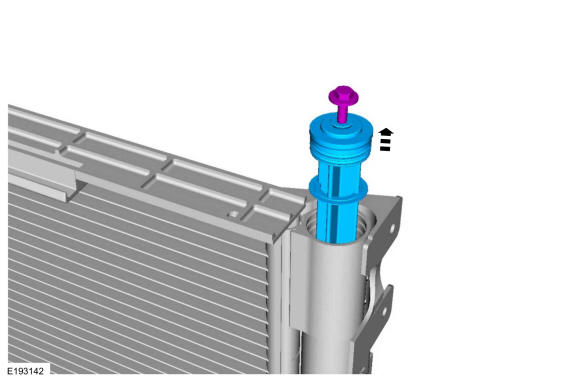

- Remove the receiver drier plug and the desiccant bag.
- Make sure to cover any open ports to prevent debris from entering the system.
