Air Conditioning (A/C) Pressure Transducer: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

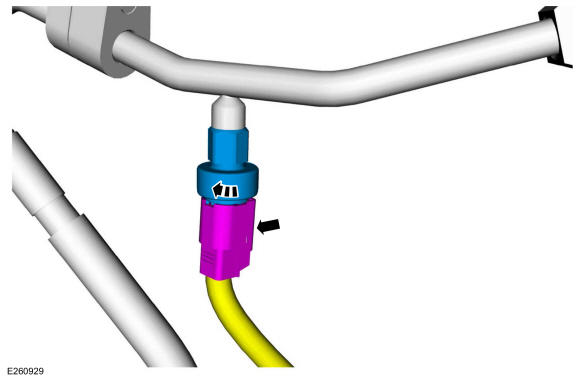

  1. Disconnect the electrical connector and remove the A/C pressure transducer.

    Torque: 71 lb.in (8 Nm)

GFD274280Courtesy of FORD MOTOR COMPANY
