Muffler and Tailpipe: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not use oil or grease-based lubricants on the isolators. These lubricants may cause deterioration of the isolator. This can lead to separation of the isolator from the exhaust hanger bracket during vehicle operation.

NOTE: Clean all exhaust connections before reassembly.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

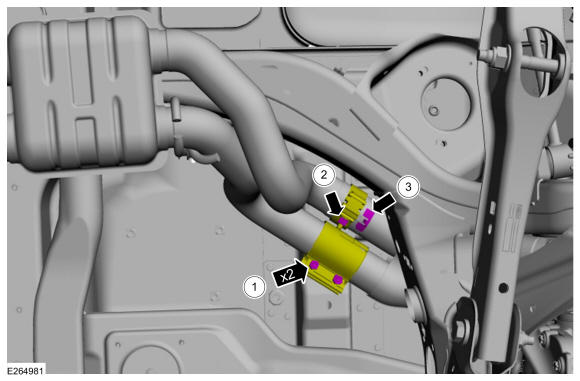

1. Loosen the muffler and tailpipe clamp.
  Torque: 35 lb.ft (48 Nm)
2. Loosen the muffler and tailpipe clamp.
  Torque: 41 lb.ft (55 Nm)
3. Release the locator tab.
Courtesy of FORD MOTOR COMPANY

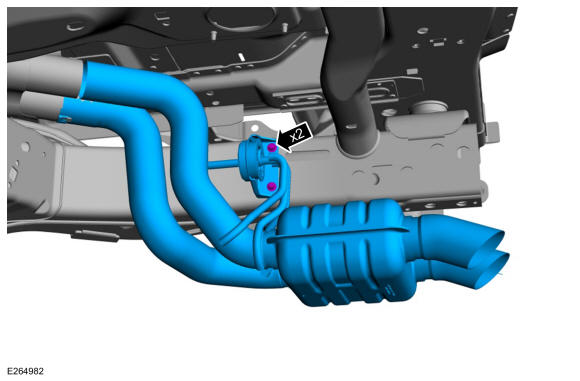

Remove the bolts and remove the tailpipe.

Courtesy of FORD MOTOR COMPANY
