Catalytic Converter RH: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Loosely install the new RH catalytic converter nuts. Do not tighten at this time.

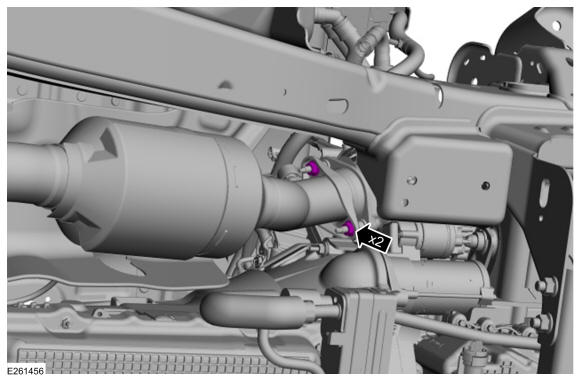

Position the RH catalytic converter in the vehicle. Loosely install the RH catalytic converter nuts.

Courtesy of FORD MOTOR COMPANY
Install the transmission support insulator. Refer to: Transmission Support Insulator .
NOTE: Evenly tighten the RH catalytic converter nuts.

Tighten the RH catalytic converter nuts.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the clamps in the sequence shown.
Torque: 35 lb.ft (48 Nm)

Fig 1: Clamp Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the LH catalytic converter. Refer to: Catalytic Converter LH .
Connect the HO2S electrical connector.

Courtesy of FORD MOTOR COMPANY

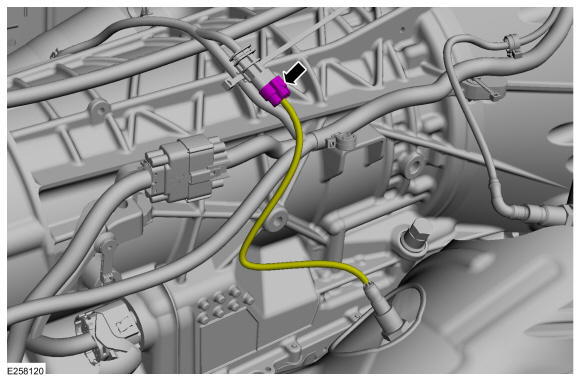

Connect the HO2S electrical connector and attach the wire clip.

Courtesy of FORD MOTOR COMPANY
Check the exhaust system for leaks.
