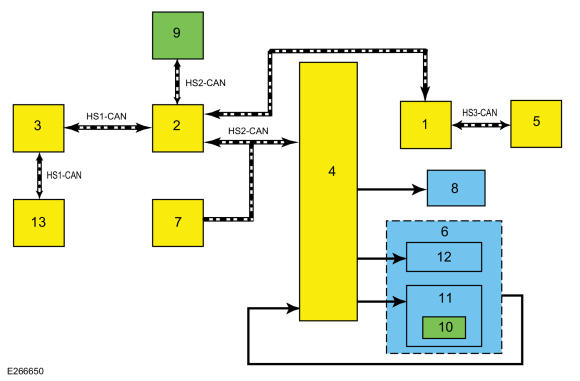

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
GWM (gateway module) |
| 2 |
GWM (gateway module) |
| 3 |
PCM |
| 4 |
TCCM |
| 5 |
IPC |
| 6 |
Transfer Case |
| 7 |
ABS |
| 8 |
IWE |
| 9 |
4x4 Switch Module |
| 10 |
Shift Motor Position Sensors (2-Speed TOD Only) |
| 11 |
Shift Motor (2-speed TOD only) |
| 12 |
Clutch Solenoid |
| 13 |
TCM |
