Shift Solenoids (SS): Installation

Solenoids A, B, C, and F

1. NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the band number with the original solenoid or harsh shifts or damage to the transmission can occur.

   If new solenoids are needed, identify the solenoid band number.

   Courtesy of FORD MOTOR COMPANY

2. Install the solenoid(s) in the main control valve body in the correct port(s) as marked during removal.
   1. SSA (7J136)
   2. SSF (7J136)
   3. SSC (7J136)
   4. SSB (7J136)

   Courtesy of FORD MOTOR COMPANY

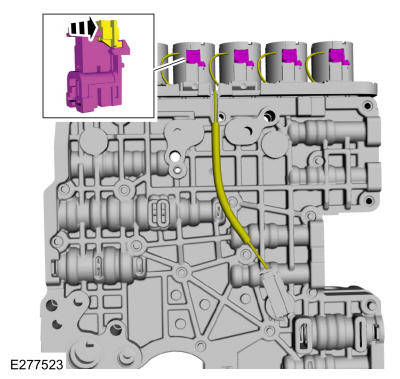

3. Connect the electrical connectors and slide the plastic lock to the locked position.

   Courtesy of FORD MOTOR COMPANY

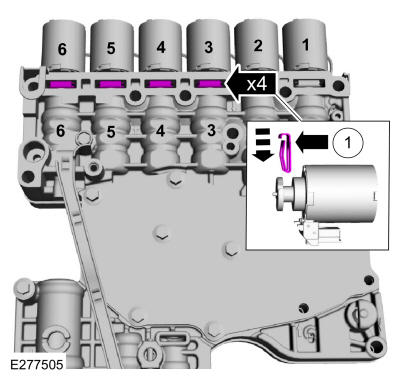

4. Install the shift solenoid retainer(s) with the flat side towards the solenoids.
   1. Retainer flat side

   Courtesy of FORD MOTOR COMPANY

5. Install and the shift solenoid retaining plate and the bolts.

   Torque

   : 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

6. Install the main control valve body. Refer to: Main Control Valve Body (307-01 Automatic Transmission - 10-Speed Automatic Transmission - 10R80). Refer to: Main Control Valve Body .

   Solenoids D and E

7. NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the band number with the original solenoid or harsh shifts or damage to the transmission can occur.

   If new solenoids are needed, identify the solenoid band number.

   Courtesy of FORD MOTOR COMPANY

8. Install the solenoid(s) in the main control valve body in the correct port(s) as marked during removal.
   1. SSE (7J136)
   2. SSD (7J136)

   Courtesy of FORD MOTOR COMPANY

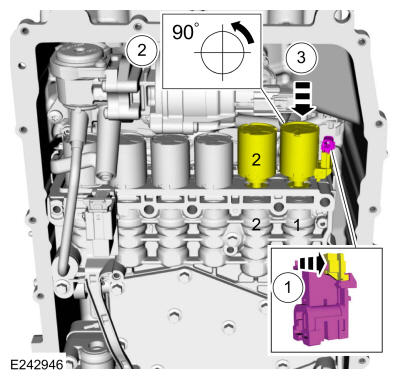

9. 1. Connect the electrical connectors and slide the plastic lock to the locked position.
   2. Rotate the solenoid(s) in a counter-clockwise direction.
   3. Slide the solenoid(s) into the main control valve body bore.

   Courtesy of FORD MOTOR COMPANY

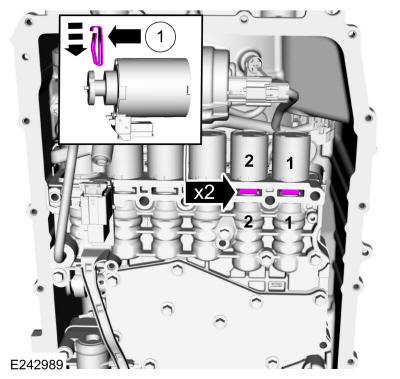

10. Install the shift solenoid retainer(s) with the flat side towards the solenoids.
    1. Retainer flat side

    Courtesy of FORD MOTOR COMPANY

11. Install and the shift solenoid retaining plate and the bolts.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

    LPC (line pressure control) and TCC (torque converter clutch) Solenoids

12. NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the replacement solenoid type (normally high/normally low) and the band number with the original solenoid or harsh shifts or damage to the transmission can occur.

    If new solenoids are needed, identify which type (normally high/normally low) of solenoid it is and the solenoid band number.

    Courtesy of FORD MOTOR COMPANY

13. 1. Inspect the solenoid screens for debris that may restrict fluid flow.
    2. Lubricate the solenoid O-ring seals.

       Material

       : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A) (MERCON® ULV)

    Courtesy of FORD MOTOR COMPANY

14. Install the solenoid(s) in the main control valve body.
    1. LPC solenoid (7G383)
    2. TCC solenoid (7G136)

    Courtesy of FORD MOTOR COMPANY

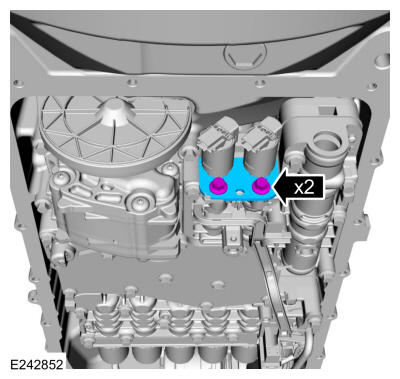

15. Install the solenoid retaining plate and the new bolts.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

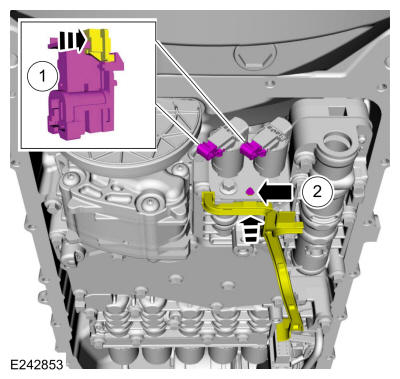

16. 1. Connect the electrical connectors and slide the plastic lock to the locked position.
    2. Connect the internal wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

    All Solenoids

17. Install the transmission fluid pan gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter .
