Selector Shaft Seal: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. If equipped, release the retainers and remove the splash shield.
    GFD273202Courtesy of FORD MOTOR COMPANY
  3. Remove and discard the park override lever bolt (7P219).
    GFD273501Courtesy of FORD MOTOR COMPANY
  4. Remove the nut and the park override lever.
    GFD273502Courtesy of FORD MOTOR COMPANY

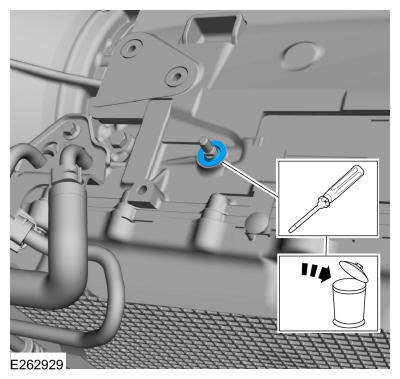

  5. Remove and discard the selector shaft seal (7F337).
GFD273503Courtesy of FORD MOTOR COMPANY
