Output Shaft Seal: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

    Rear Wheel Drive (RWD) vehicles

  2. Remove the rear driveshaft assembly. Refer to: DRIVESHAFT .

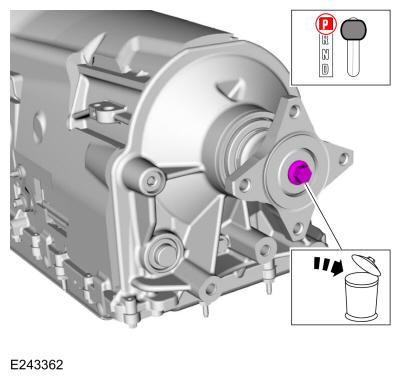

  3. Remove and discard the output shaft flange bolt (7N134).
    GFD273486Courtesy of FORD MOTOR COMPANY

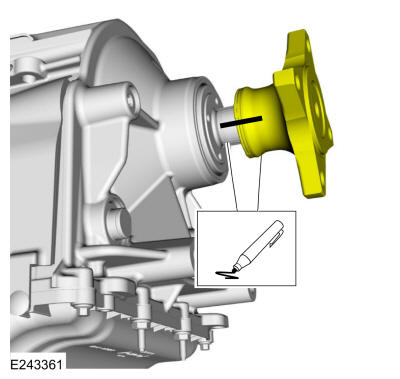

  4. Slide the output shaft flange back to index mark the output shaft to the flange.
    GFD273487Courtesy of FORD MOTOR COMPANY

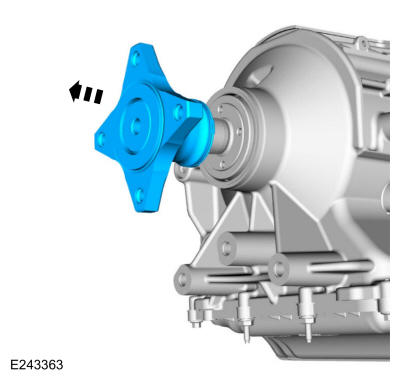

  5. Remove the output shaft flange.
    GFD273488Courtesy of FORD MOTOR COMPANY

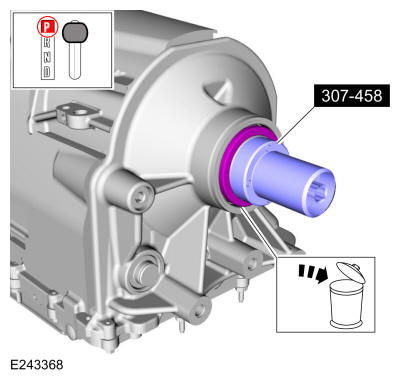

  6. Using the special tool, remove and discard the output shaft nut (7085). Use Special Service Tool: 307-458 Socket, Output Shaft Locknut.
    GFD273489Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  7. Remove the transfer case assembly. Refer to: Transfer Case .

    All vehicles

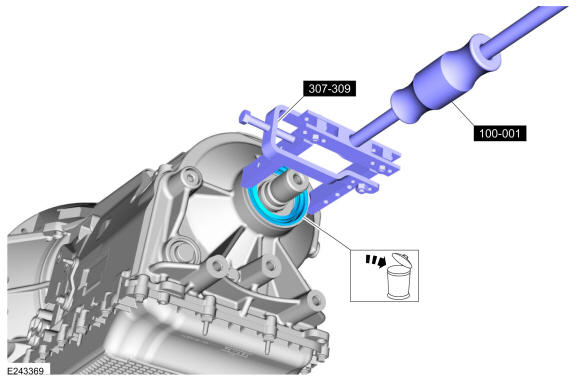

  8. Using the special tools, remove and discard the output shaft seal (7052). Use Special Service Tool: 307-309 Remover, Torque Converter Seal., 100-001 (T50T-100-A) Slide Hammer.
GFD273490Courtesy of FORD MOTOR COMPANY
