Low One-Way Clutch Assembly
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

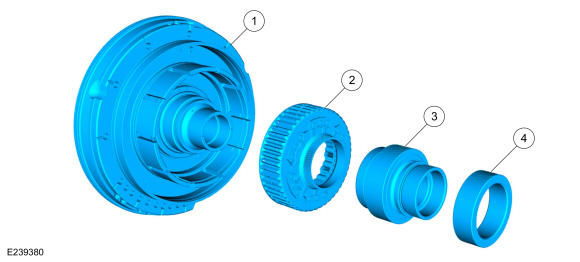

| Item | Description |
|---|---|
| 1 | Front support assembly |
| 2 | One-Way Clutch (OWC) |
| 3 | Sun gear No. 1 |
| 4 | Sun gear No. 2 |
One-Way Clutch (OWC) Mechanical Operation
The One-Way Clutch (OWC) is a brake clutch that holds the sun gears No. 1&2 in one direction and allows it to freewheel in the opposite direction eliminating engine braking in 1st gear when the transmission is in drive. The rollers of the One-Way Clutch (OWC) lock to a inner race that is part of the front support assembly.

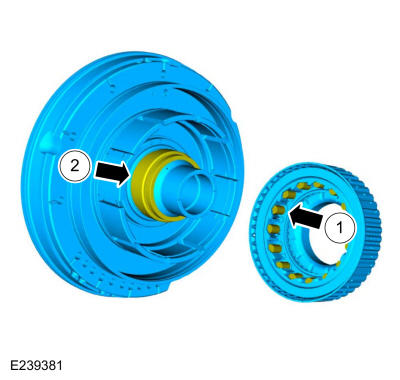

- One-Way Clutch (OWC) rollers
- One-Way Clutch (OWC) inner race
