Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the RH valve cover. Refer to: Valve Cover LH .

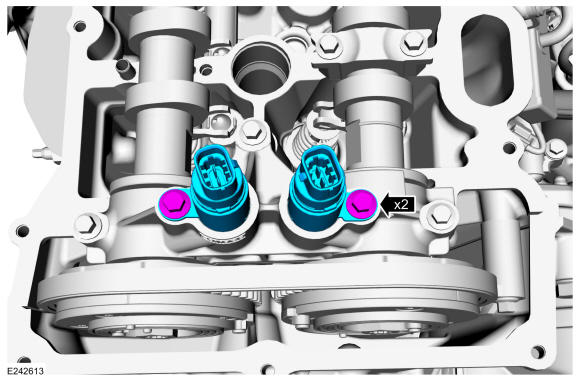

  2. Remove the bolts and the RHVCT oil control solenoids.

    Torque: 89 lb.in (10 Nm)

    GFD273351Courtesy of FORD MOTOR COMPANY
  3. Remove the LH valve cover. Refer to: Valve Cover RH .

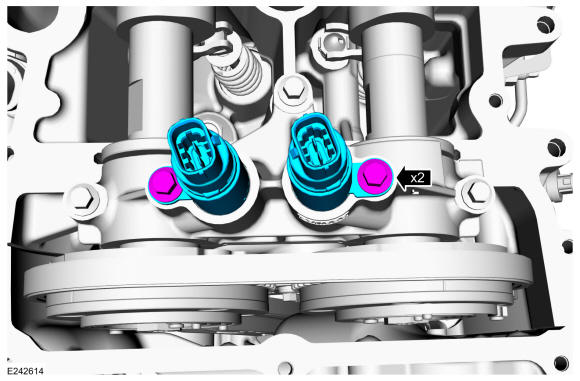

  4. Remove the bolts and the LHVCT oil control solenoids.

    Torque: 89 lb.in (10 Nm)

GFD273352Courtesy of FORD MOTOR COMPANY
