Oil Pressure Control Solenoid: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the engine front cover. Refer to: Engine Front Cover .

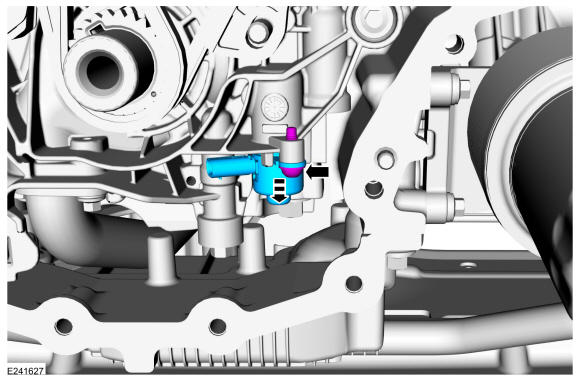

  2. Remove oil pressure control solenoid.

    Torque: 89 lb.in (10 Nm)

GFD273344Courtesy of FORD MOTOR COMPANY
