Knock Sensor (KS): Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the direct injection fuel rail LH and RH side. Refer to: Direct Injection Fuel Rail LH . Refer to: Direct Injection Fuel Rail RH .

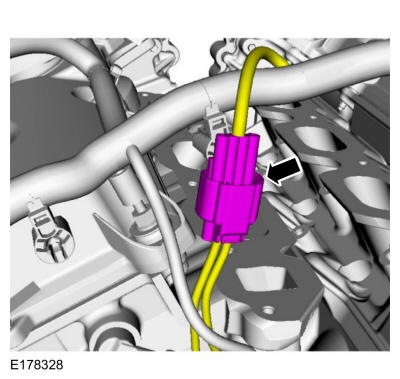

- Disconnect the KS electrical connector.

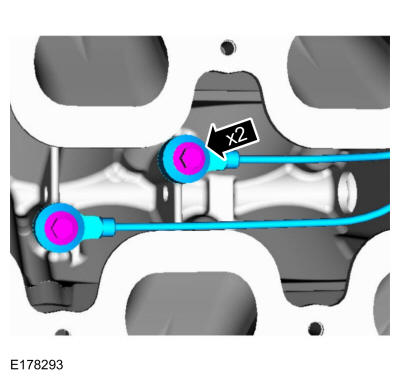

- Remove the bolts and the KS.
Torque: 177 lb.in (20 Nm)
