Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
Torque: 97 lb.in (11 Nm)

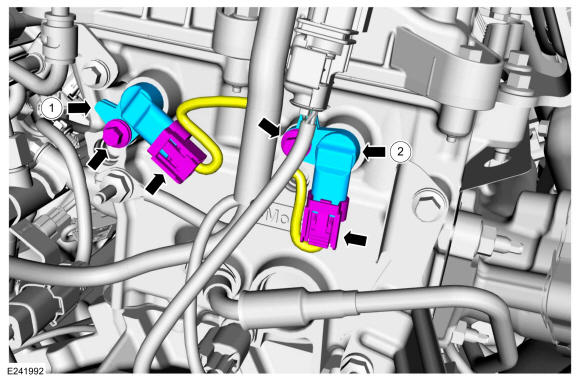

RH (right-hand) Camshaft Position (CMP) Sensors
-
- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
Material
: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
Torque: 89 lb.in (10 Nm)
- Disconnect the electrical connector, remove the retainer and the exhaust CMP sensor.
Torque: 89 lb.in (10 Nm)

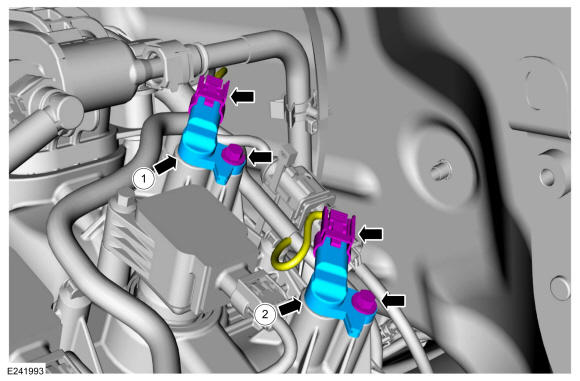

LH (left-hand) Camshaft Position (CMP) Sensors
- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
-
- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
Material
: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
Torque: 89 lb.in (10 Nm)
- Disconnect the electrical connector, remove the retainer and the exhaust CMP sensor.
Torque: 89 lb.in (10 Nm)
- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
