DTC P1459 Canister Purge Control Solenoid Valve 2: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

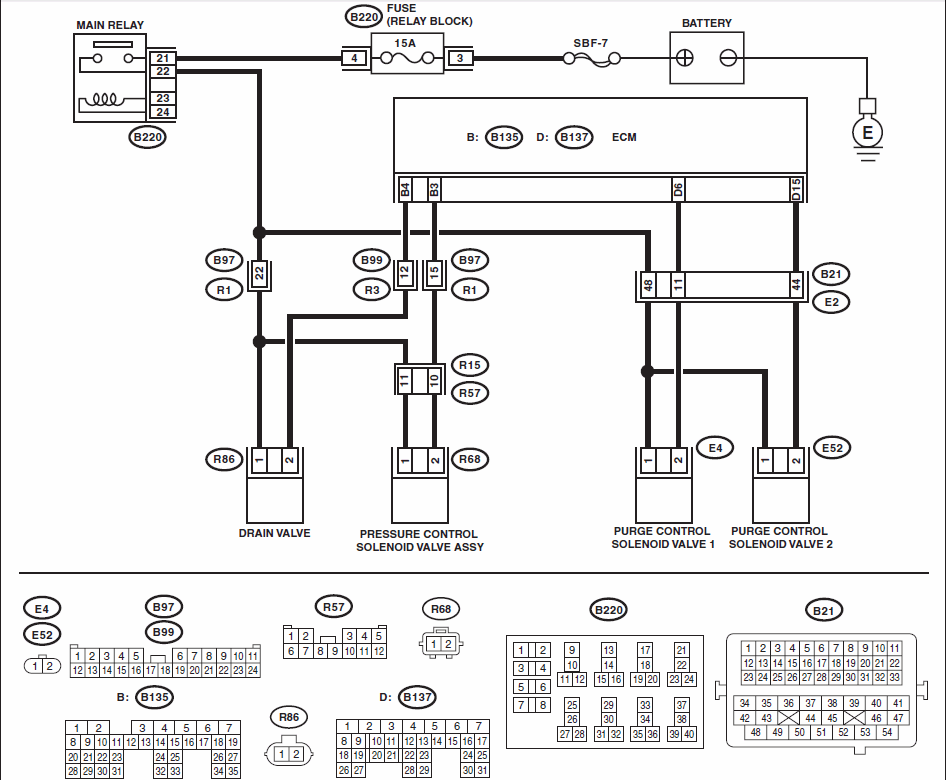

Fig 1: Canister Purge Control Solenoid Valve 2 - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

Step	Check	Yes	No
1 CHECK HARNESS BETWEEN ECM AND PURGE CONTROL SOLENOID VALVE 2 CONNECTOR. Turn the ignition switch to OFF Disconnect the connectors from ECM and purge control solenoid valve 2. Turn the ignition switch to ON. Measure the voltage between ECM and chassis ground. Connector & terminal (B137) No. 15 (+) - Chassis ground (-)	Is the voltage 10 V or more?	Repair the short to power in the harness between ECM and purge control solenoid valve 2 connector.	Go to step 2 .
2 CHECK PURGE CONTROL SOLENOID VALVE 2. Turn the ignition switch to OFF. Measure the resistance between purge control solenoid valve 2 terminals. Terminals No. 1 - No. 2	Is the resistance less than 1 Ω?	Replace the purge control solenoid valve 2. Refer to	Repair the poor contact of ECM connector.
