DTC P0246 Turbo/Super Charger WASTEGATE Solenoid "A" High: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

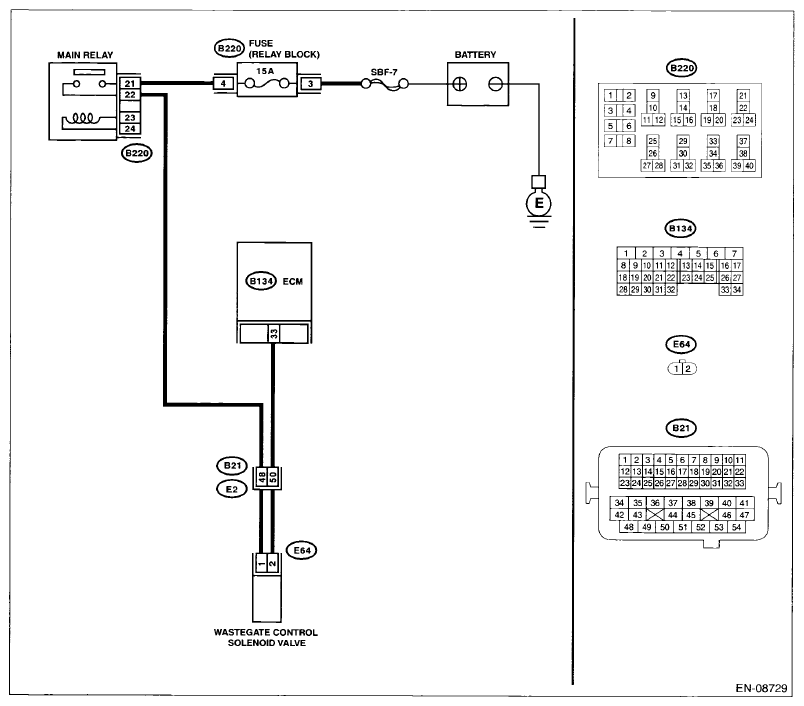

Fig 1: Turbo/Super Charger Wastegate Solenoid "A" High - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSIS PROCEDURE

Step	Check	Yes	No
1 CHECK HARNESS BETWEEN ECM AND WASTEGATE CONTROL SOLENOID VALVE CONNECTOR. Turn the ignition switch to OFF. Disconnect the connectors from ECM and wastegate control solenoid valve. Turn the ignition switch to ON. Measure the voltage between ECM and chassis ground. Connector & terminal (B134) No. 33 (+) - Chassis ground (-):	Is the voltage 10 V or more?	Repair short circuit to power in the harness between ECM and waste-gate control solenoid valve connector.	Go to step 2 .
2 CHECK WASTEGATE CONTROL SOLENOID VALVE. Turn the ignition switch to OFF. Measure the resistance between wastegate control solenoid valve terminals. Terminals No. 1 - No. :	Is the resistance less than 1 Ω?	Replace the waste-gate control solenoid valve. < Refer to WASTEGATE CONTROL SOLENOID VALVE . >	Repair the poor contact of ECM connector.
