Oil Pump

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-142 (T80T-4000-J)Installer, Differential Bearing Cone
Courtesy of FORD MOTOR COMPANY	205-150 (T80T-4000-S)Installer, Spindle Bearing
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W)Handle
Courtesy of FORD MOTOR COMPANY	303-1246Engine Spreader Bar, TKIT-2006UF-FLM, TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1247VCT Spark Plug Tube Seal Remover and Installer, TKIT-2006UF-FLM, TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1654Lift Eyes
Courtesy of FORD MOTOR COMPANY	303-1655Tool, Camshaft Holding
Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH)Remover, Crankshaft Seal, TKIT-1992-FH/FMH/FLMH, TKIT-1993-LMH/MH
Floor Crane
Three Leg Puller
Mounting Stand
Plastic Scraper
Hose Clamp Remover/Installer

Materials

1. Remove the engine. Refer to: Engine .

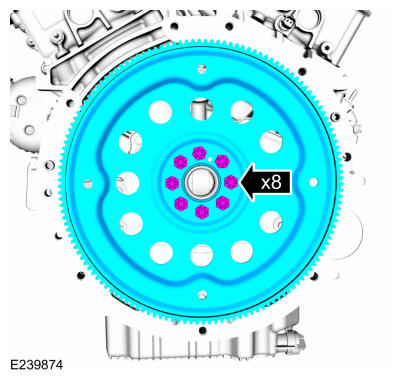

2. Remove the bolts and the flexplate.

   Courtesy of FORD MOTOR COMPANY

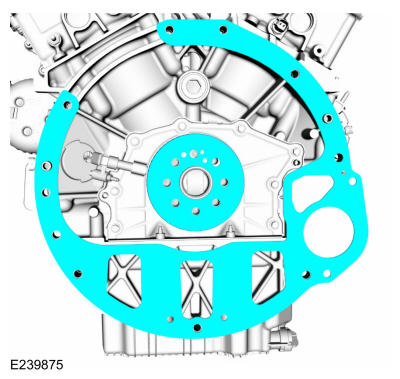

3. Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

   Courtesy of FORD MOTOR COMPANY

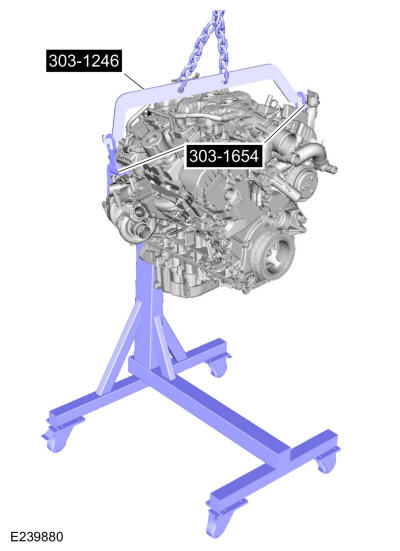

4. NOTE: Install the engine stand bolts into the cylinder block only. Do not install the bolts into the engine block skirt stiffener.

   Mount the engine to the mounting stand. Use the General Equipment: Mounting Stand.

   Courtesy of FORD MOTOR COMPANY

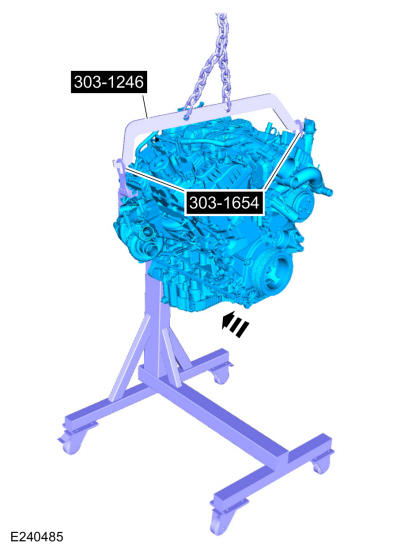

5. Remove the floor crane.Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane.

   Courtesy of FORD MOTOR COMPANY

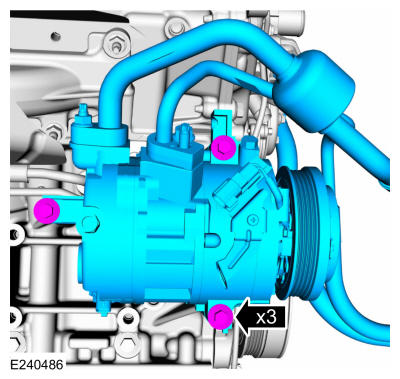

6. Remove the bolts and the A/C compressor.

   Courtesy of FORD MOTOR COMPANY

7. Disconnect the electrical connector, remove the bolts and the cabin heater coolant pump.

   Courtesy of FORD MOTOR COMPANY

8. Remove the crankshaft pulley bolt and washer. Discard the bolt.

   Courtesy of FORD MOTOR COMPANY

9. Using a three leg puller, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller.

   Courtesy of FORD MOTOR COMPANY

10. Using the special tool, remove and discard the crankshaft front seal.Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

    Courtesy of FORD MOTOR COMPANY

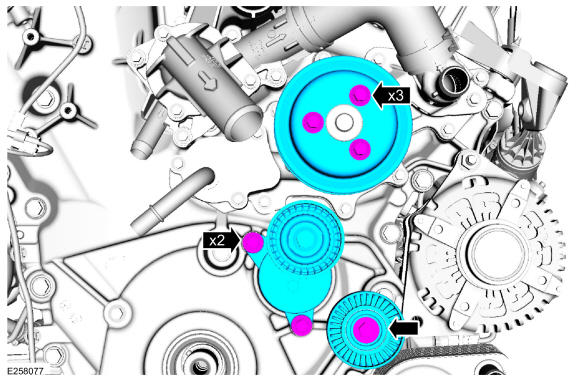

11. • Remove the bolts and the coolant pump pulley.
    • Remove the bolts and the accessory drive belt tensioner.
    • Remove the bolt and the idler pulley.

    Courtesy of FORD MOTOR COMPANY

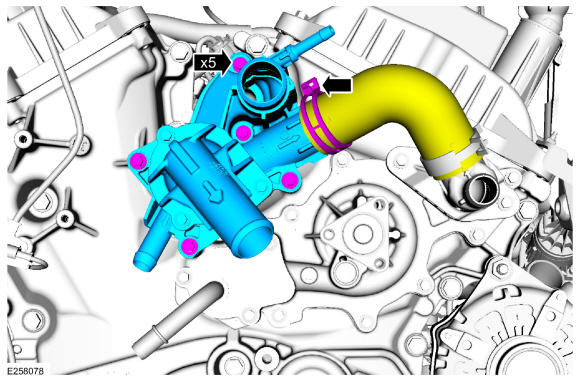

12. • Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer.
    • Remove the bolts and the thermostat housing.

    Courtesy of FORD MOTOR COMPANY

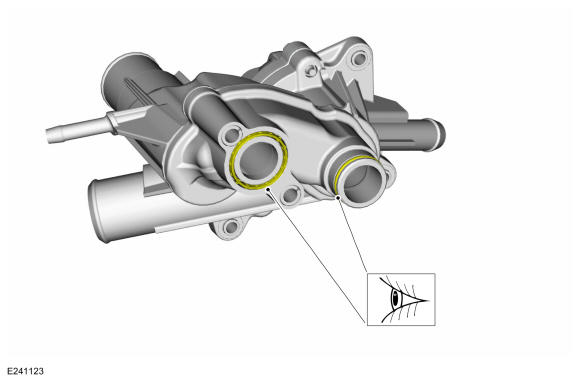

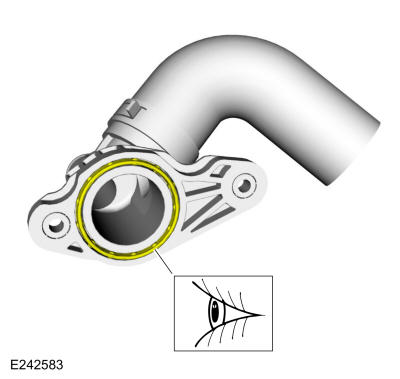

13. Inspect the O-ring seals and replace if necessary.

    Courtesy of FORD MOTOR COMPANY

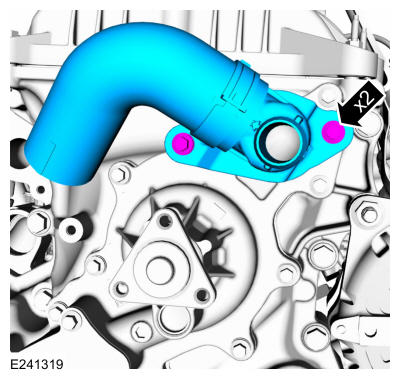

14. Remove the bolts and the water pump outlet connector.

    Courtesy of FORD MOTOR COMPANY

15. Inspect the O-ring seal and replace if necessary.

    Courtesy of FORD MOTOR COMPANY

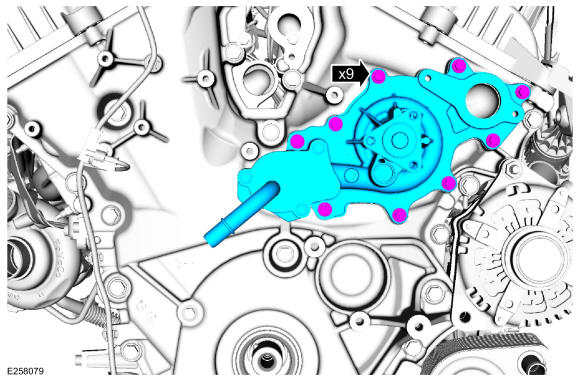

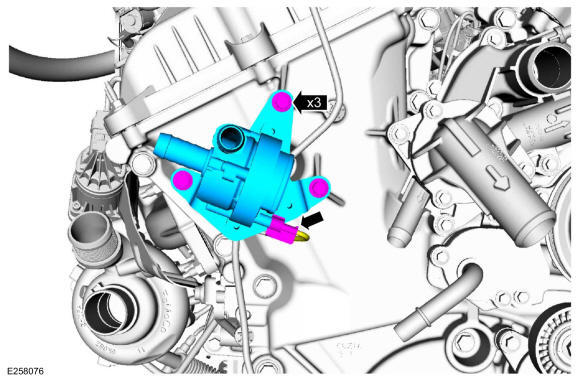

16. Remove the bolts and the coolant pump.

    Courtesy of FORD MOTOR COMPANY

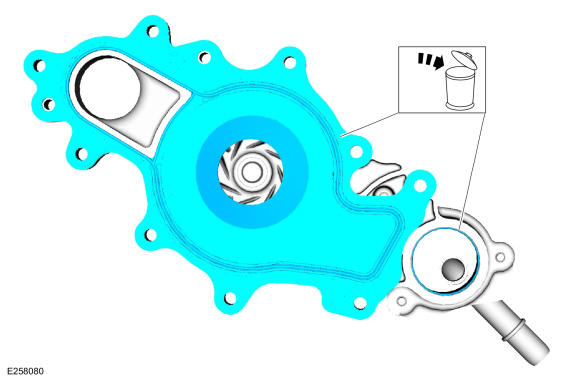

17. Remove and discard the coolant pump gasket and O-ring seal.

    Courtesy of FORD MOTOR COMPANY

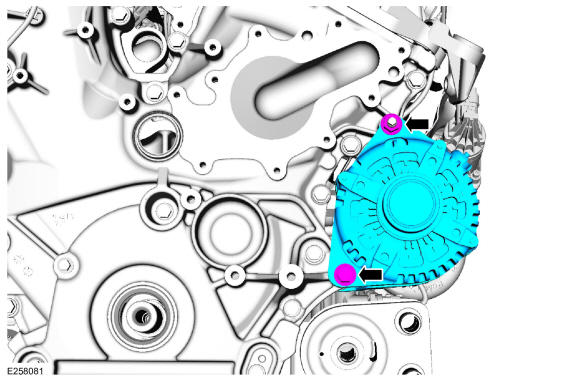

18. Remove the nut, bolt and the generator.

    Courtesy of FORD MOTOR COMPANY

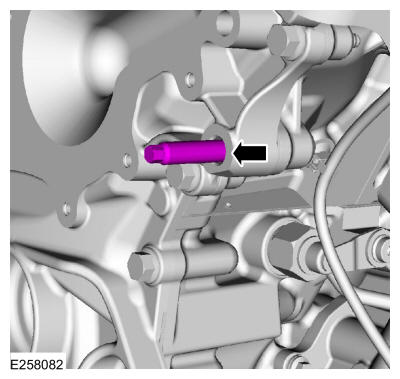

19. Remove the generator stud bolt.

    Courtesy of FORD MOTOR COMPANY

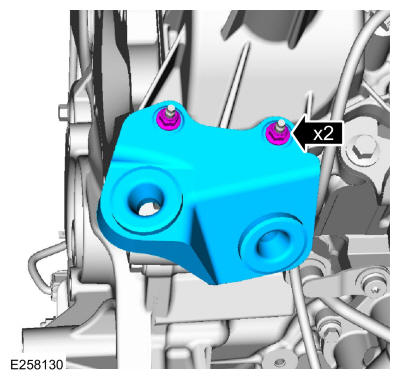

20. Remove the nuts and the CAC tube bracket.

    Courtesy of FORD MOTOR COMPANY

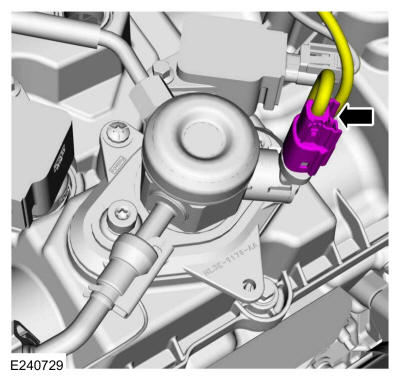

21. Disconnect the high pressure fuel pump electrical connector.

    Courtesy of FORD MOTOR COMPANY

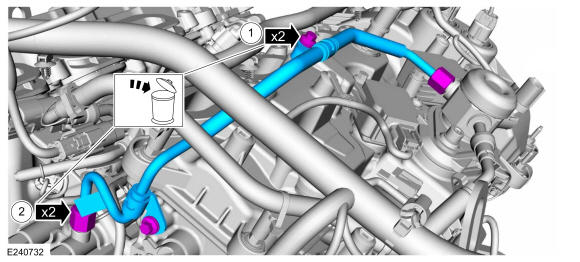

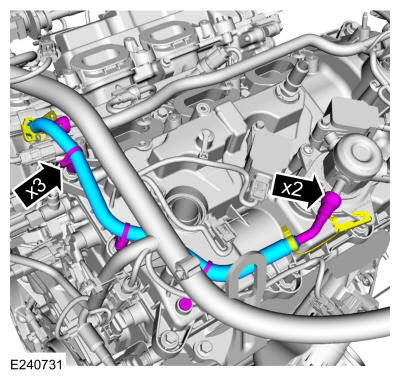

22. 1. Remove and discard the high-pressure fuel tube mounting bolts.
    2. Remove and discard the high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

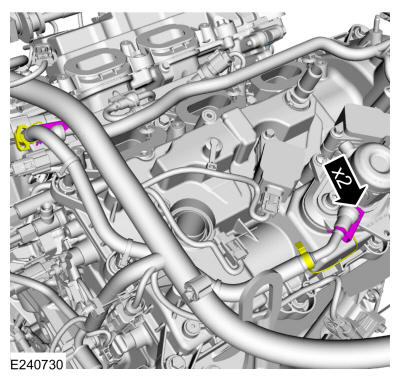

23. Remove the fuel supply tube spring lock coupling retainers.

    Courtesy of FORD MOTOR COMPANY

24. Disconnect the retainers, fuel supply tube and remove. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

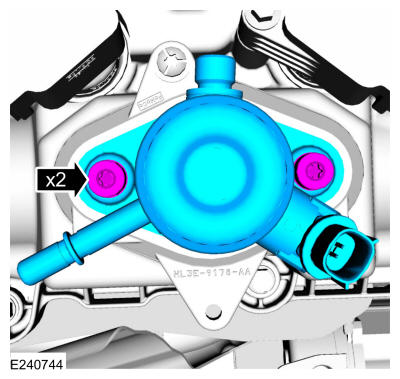

25. • Remove the high-pressure fuel pump bolts.
    • Remove the high-pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

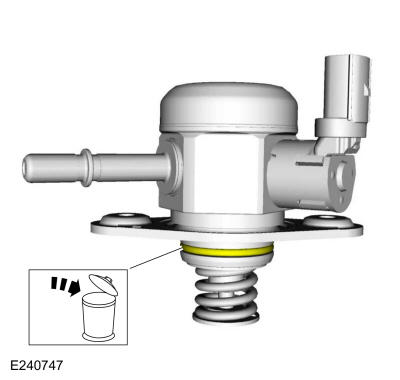

26. Remove the high-pressure fuel pump O-ring seal and discard.

    Courtesy of FORD MOTOR COMPANY

27. Remove the high-pressure fuel pump roller tappet.

    Courtesy of FORD MOTOR COMPANY

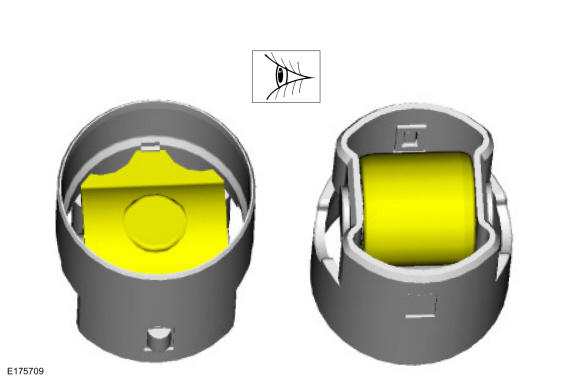

28. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as necessary.

    Courtesy of FORD MOTOR COMPANY

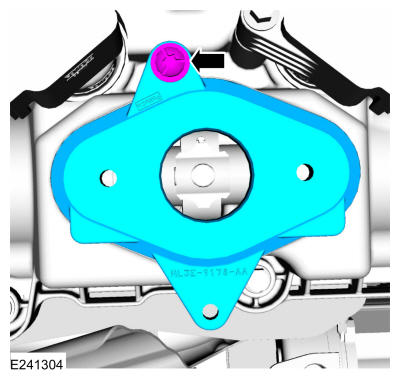

29. Remove the bolt and the high-pressure fuel pump mounting plate.

    Courtesy of FORD MOTOR COMPANY

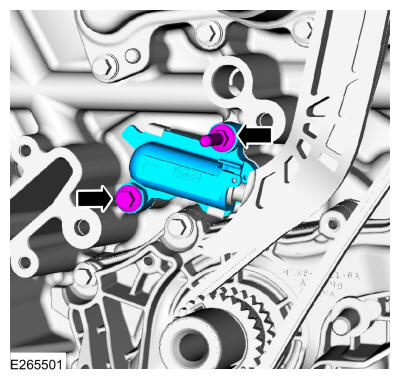

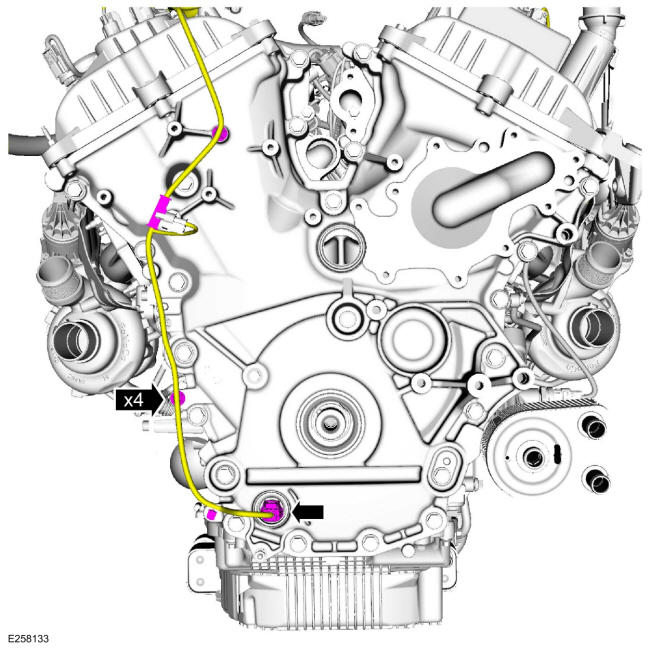

30. Disconnect the oil control solenoid electrical connector and detach the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

31. • Remove the oil level indicator.
    • Disconnect the VCT oil control sensor electrical connectors.
    • Disconnect the CMP sensor electrical connectors.
    • Disconnect the ignition coil-on-plug electrical connectors.
    • Detach the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

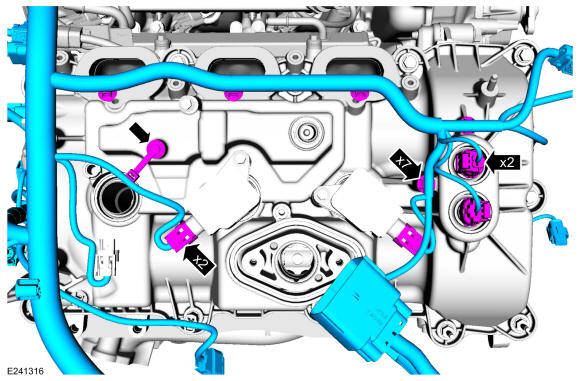

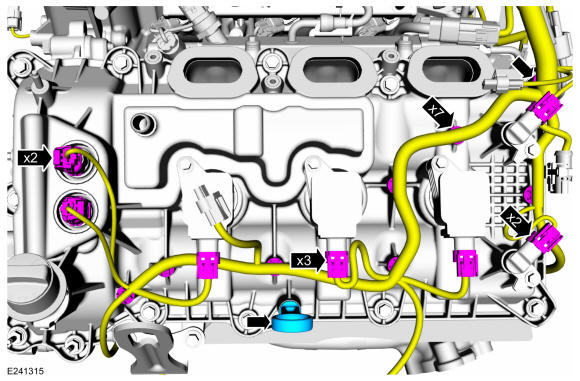

32. • Disconnect the VCT oil control sensor electrical connectors.
    • Disconnect the ignition coil-on-plug electrical connectors.
    • Detach the wire harness retainers and remove the engine wiring harness.

    Courtesy of FORD MOTOR COMPANY

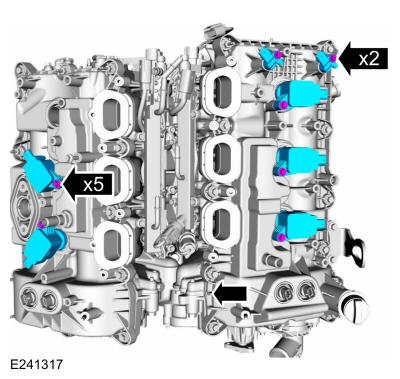

33. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
    • Remove the bolts and the ignition coil-on-plugs.
    • Remove the bolts and the CMP sensors.

    Courtesy of FORD MOTOR COMPANY

34. Inspect the coil seals for rips, nicks or tears.

    Courtesy of FORD MOTOR COMPANY

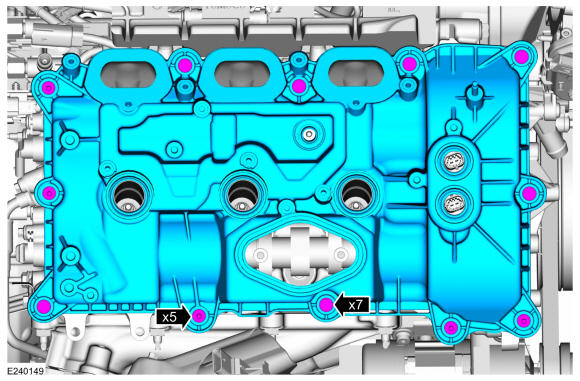

35. NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
    NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    Loosen the fasteners and remove the LH valve cover.

    Courtesy of FORD MOTOR COMPANY

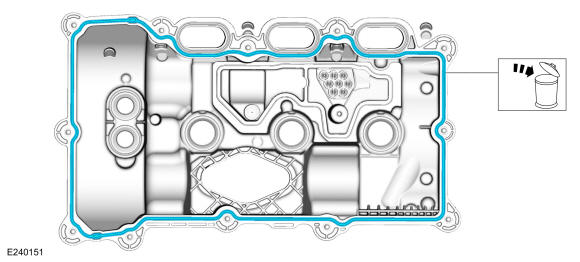

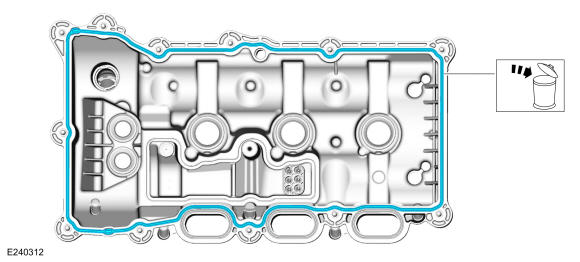

36. Remove and discard the LH valve cover gasket.

    Courtesy of FORD MOTOR COMPANY

37. NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
    NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    Loosen the fasteners and remove the RH valve cover.

    Courtesy of FORD MOTOR COMPANY

38. Remove and discard the RH valve cover gasket.

    Courtesy of FORD MOTOR COMPANY

39. NOTE: RH shown, LH similar.
    NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

    If necessary, using the special tools, remove the VCT oil control solenoid seals.Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

40. NOTE: RH shown, LH similar.
    NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

    If necessary, using the special tools, remove the spark plug tube seals.Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

41. Remove the engine front cover bolts.

    Courtesy of FORD MOTOR COMPANY

42. Using a pry tool, locate the pry pads shown and pry the engine front cover loose and remove.

    Courtesy of FORD MOTOR COMPANY

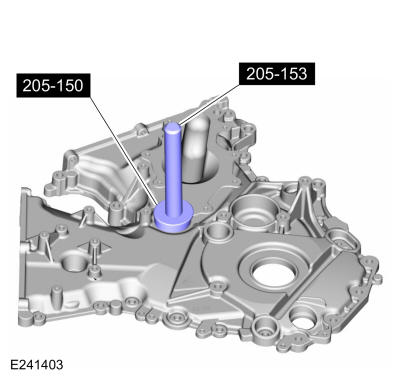

43. Using the special tools, remove the engine front cover to coolant pipe seal.Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-150 (T80T-4000-S) Installer, Spindle Bearing.

    Courtesy of FORD MOTOR COMPANY

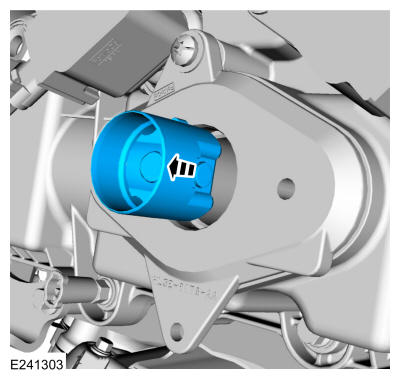

44. 20.Using the special tools, remove and discard the oil pump electrical connector seal.Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.

    Courtesy of FORD MOTOR COMPANY

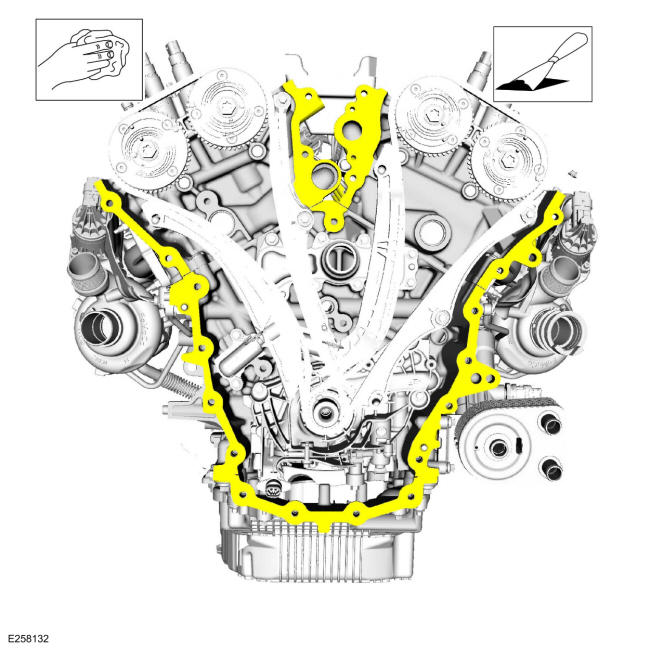

45. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.
    • Clean the engine front cover using a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm. Refer to: RTV Sealing Surface Cleaning and Preparation .

      Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

    Courtesy of FORD MOTOR COMPANY

46. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper.

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

47. Install the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

48. 1. Rotate the crankshaft clockwise.
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. Verify the timing marks on the VCT units are at the 12:30 (intake) and 11 o'clock (exhaust) positions. If the timing marks are not at these positions, the crankshaft must be turned clockwise one revolution (360 degrees).

    Courtesy of FORD MOTOR COMPANY

49. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

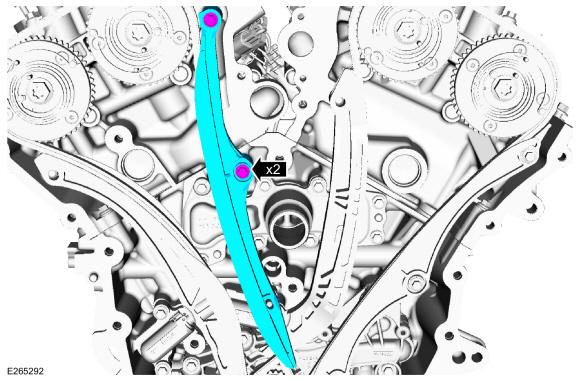

50. Remove the bolts and the RH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

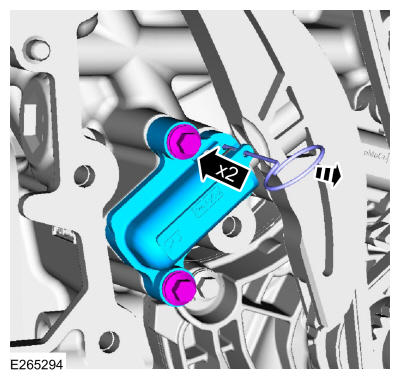

51. Remove the bolts and the RH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

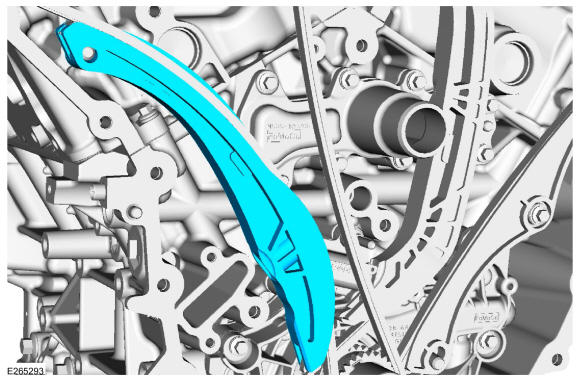

52. Remove the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

53. Remove the RH timing chain.

    Courtesy of FORD MOTOR COMPANY

54. Verify the timing marks on the VCT units are at the 11:30 (intake) and 1:00 o'clock (exhaust) positions.

    Courtesy of FORD MOTOR COMPANY

55. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

56. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

57. Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

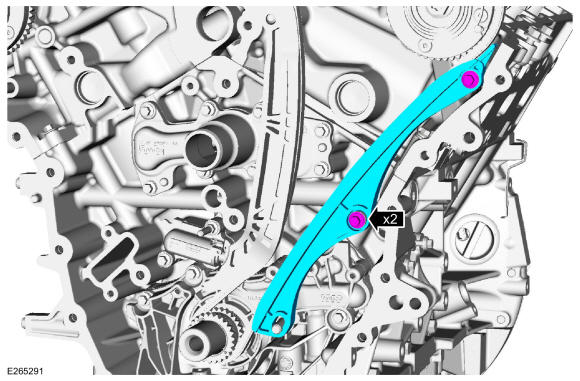

58. Remove the bolts and the LH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

59. Remove the retainers and the LH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

60. Remove the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

61. Remove the LH timing chain.

    Courtesy of FORD MOTOR COMPANY

62. Remove the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

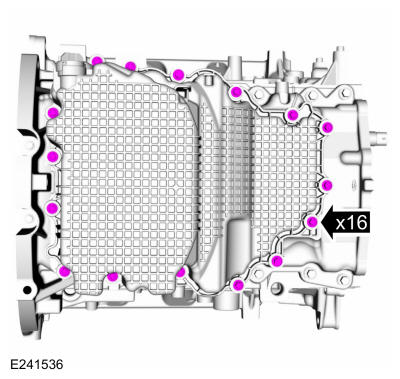

63. Remove the oil pan bolts.

    Courtesy of FORD MOTOR COMPANY

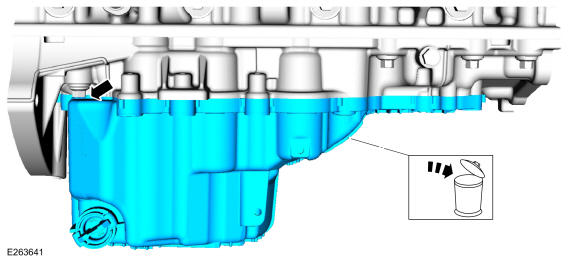

64. Using a pry tool on the pry pads, remove the oil pan.

    Courtesy of FORD MOTOR COMPANY

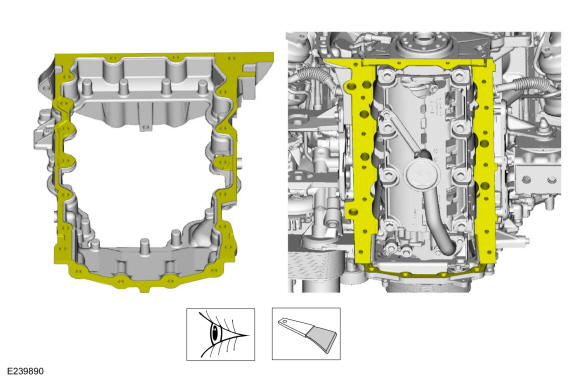

65. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

    Make sure that the engine block skirt stiffener sealing surfaces are free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper.

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

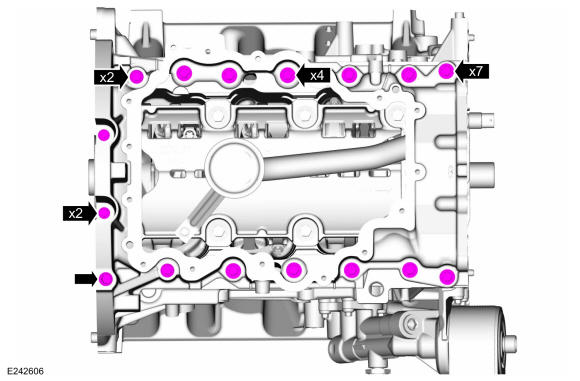

66. Remove the engine block skirt stiffener bolts.

    Courtesy of FORD MOTOR COMPANY

67. Using a pry tool on the pry pads shown, remove the engine block skirt stiffener.

    Courtesy of FORD MOTOR COMPANY

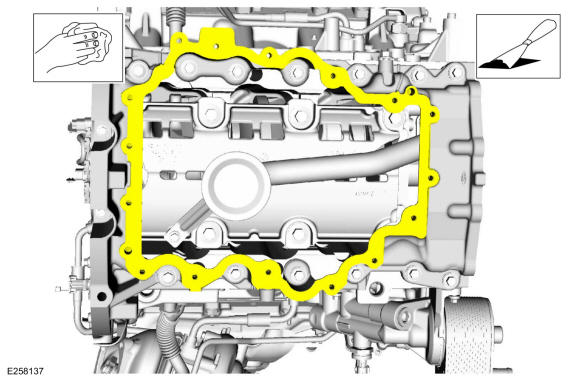

68. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

    Clean and inspect the mating surfaces. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper.

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

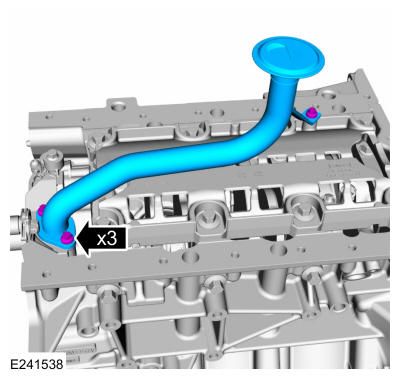

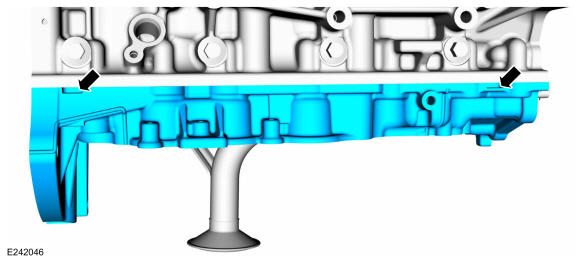

69. Remove the bolts and the oil pump screen and pickup tube.

    Courtesy of FORD MOTOR COMPANY

70. Remove and discard the oil pump screen and pickup tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

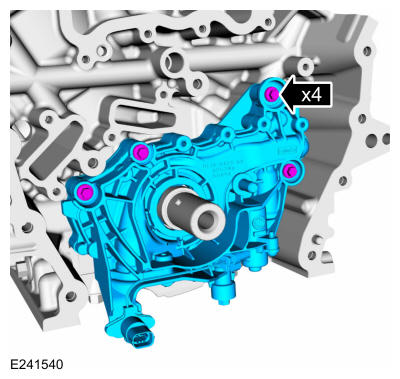

71. Remove the bolts and the oil pump.
