Engine Block Skirt Stiffener

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246Engine Spreader Bar, TKIT-2006UF-FLM, TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1654Lift Eyes
Floor Crane
Mounting Stand
Plastic Scraper

Materials

Name	Specification
Motorcraft® Silicone Gasket RemoverZC-30-A	-
Motorcraft® Metal Surface Prep WipesZC-31-B	-
Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B	-

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

Remove the engine from the vehicle. Refer to: Engine .

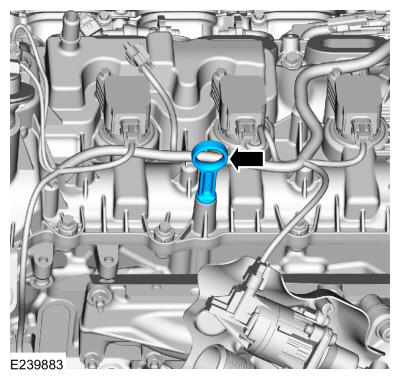

Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the flexplate.

Courtesy of FORD MOTOR COMPANY
Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the engine stand bolts into the cylinder block only. Do not install the bolts into the engine block skirt stiffener.

Using a floor crane, install the engine on a mounting stand.Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor CraneUse the General Equipment: Mounting Stand.

Courtesy of FORD MOTOR COMPANY
Remove the floor crane and Special Service Tools.Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the A/C compressor.

Courtesy of FORD MOTOR COMPANY

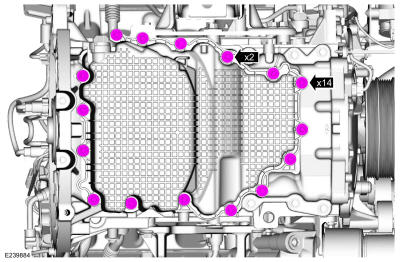

Remove the oil pan bolts.

Courtesy of FORD MOTOR COMPANY
Using a pry tool on the pry pads, remove and discard the oil pan.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

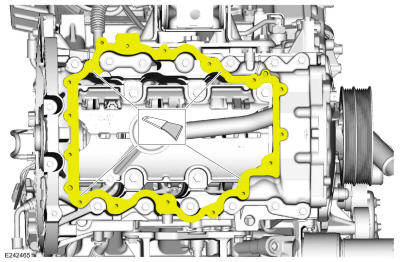

Make sure that the engine block skirt stiffener sealing surfaces are free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper.

Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY

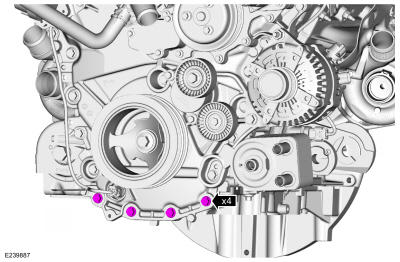

Remove the engine front cover bolts.

Courtesy of FORD MOTOR COMPANY

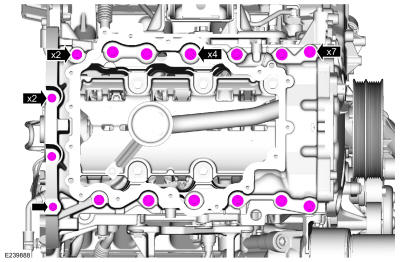

Remove the engine block skirt stiffener bolts.

Courtesy of FORD MOTOR COMPANY

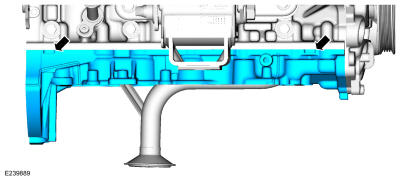

Using a pry tool, locate the pry pads at the LH and RH side of the engine block skirt stiffener and pry the engine block skirt stiffener loose and remove.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

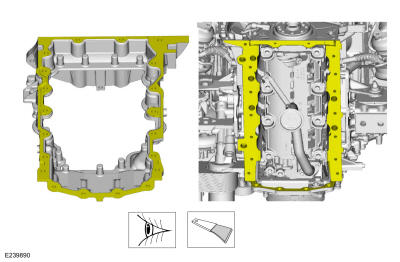

Clean and inspect the mating surfaces. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper.

Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY
