Oil Pump - Vehicles Built From: 20-March-2018: Installation

4x2/4x4

1. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

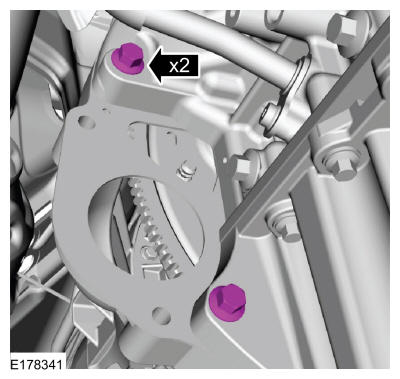

2. Install the oil pump and the bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

3. Install a new oil pump screen and pickup tube O-ring seal.

   Courtesy of FORD MOTOR COMPANY

4. Install the oil pump screen and pickup tube and the bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

5. NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

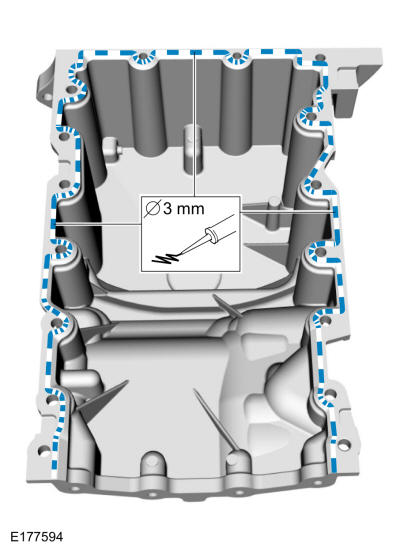

   Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

   Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

   Courtesy of FORD MOTOR COMPANY

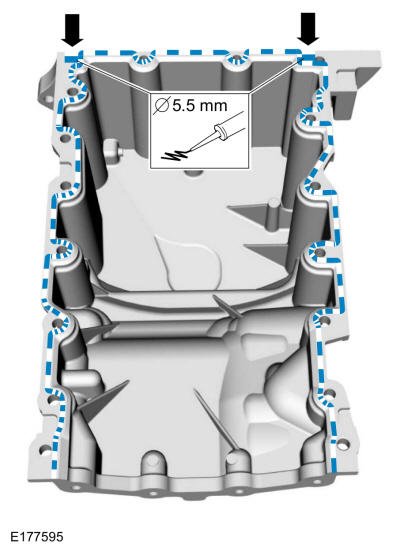

6. Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

   Material

   : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.
   NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

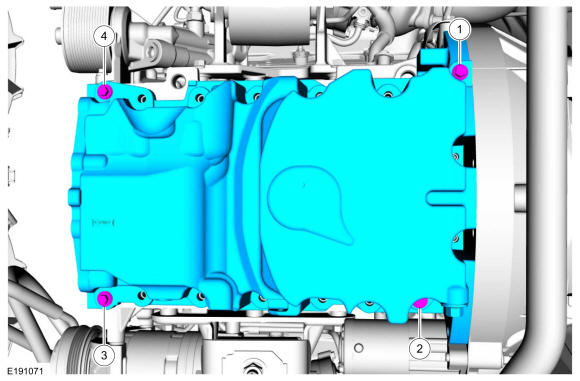

   Install the bolts finger tight.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Do not torque at this time.

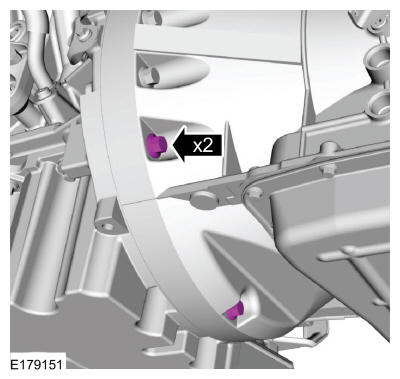

   Draw the transmission and engine together using the bolts.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Do not torque at this time.

   Install the oil pan bolts.

   Courtesy of FORD MOTOR COMPANY

10. NOTE: Do not torque at this time.

    Install the oil pan bolt.

    Courtesy of FORD MOTOR COMPANY

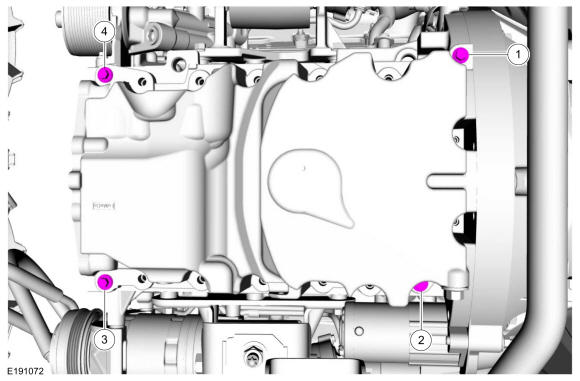

11. Tighten the oil pan bolts in sequence.

    Torque: 27 lb.in (3 Nm)

    Courtesy of FORD MOTOR COMPANY

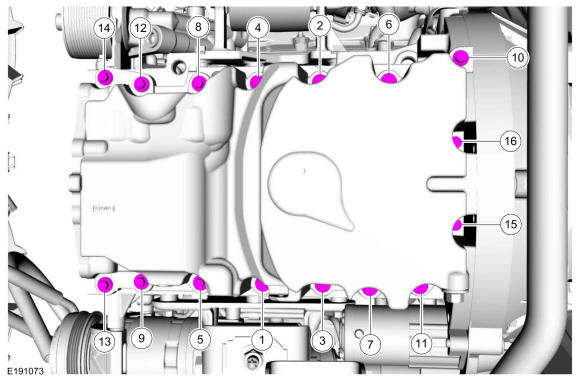

12. Install the remaining oil pan bolts and tighten in sequence.

    Torque:Stage 1: Tighten bolts 1-9 and 11-14 to : 177 lb.in (20 Nm)Stage 2: Tighten bolt 1-9 and 11-14 additional : 45°Stage 3: Tighten bolt 10 to : 177 lb.in (20 Nm)Stage 4: Tighten bolt 10 an additional : 45°Stage 5: Tighten bolts 15 and 16 to : 89 lb.in (10 Nm)Stage 6: Tighten bolts 15 and 16 an additional : 90°

    Courtesy of FORD MOTOR COMPANY

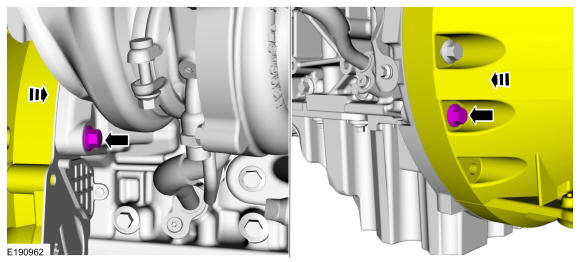

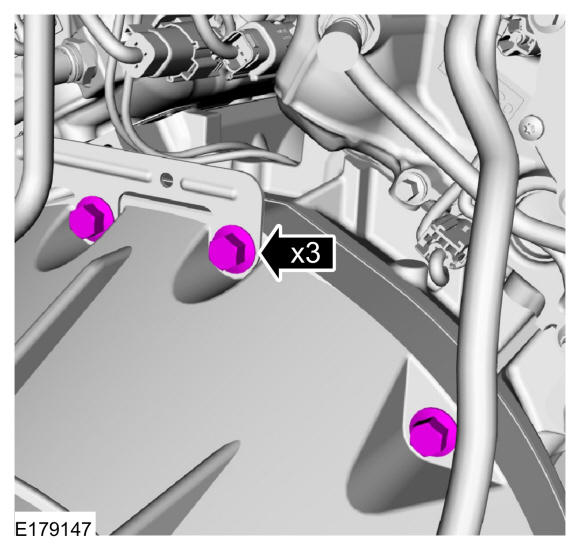

13. Tighten the oil pan and bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

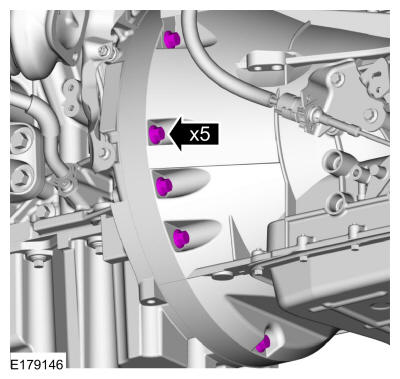

14. Tighten the oil pan and bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

15. Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

16. Attach the generator wiring harness retainer to the engine block.

    Courtesy of FORD MOTOR COMPANY

    4x4

17. NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

    Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands.

    Courtesy of FORD MOTOR COMPANY

18. Install the lower front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Install the upper front axle carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

20. Install the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands.

    Courtesy of FORD MOTOR COMPANY

    4x2/4x4

22. Install the transmission cooler and bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Install the transmission cooler bracket bolt.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

24. Position back the transmission cooler tube and install the bolt.

    Courtesy of FORD MOTOR COMPANY

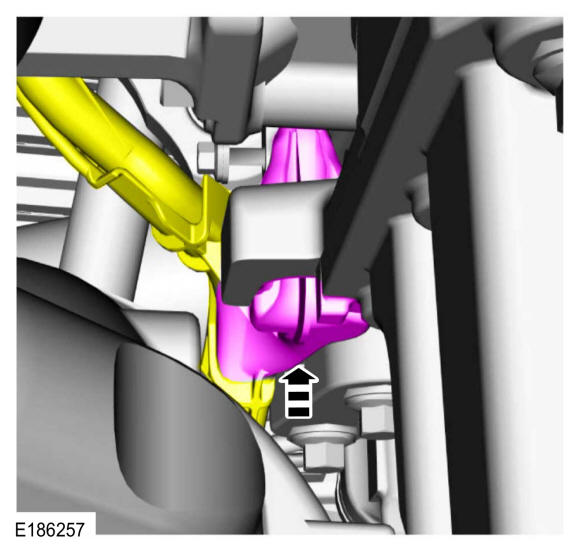

25. Remove the transmission tube pin-type retainer from the oil pan.

    Courtesy of FORD MOTOR COMPANY

26. Install the starter. Refer to: Starter Motor .
27. Install the crossmember, nuts and bolts.

    Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

28. If equipped.Install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

29. • If equipped.Iinstall the underbody shield and the bolts.

      Torque: 30 lb.ft (40 Nm)

    • *Install the underbody shield and the bolts.

      Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

30. • If equipped.Install the transmission housing cover.
    • Install the bolts.

      Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

31. If equipped.Install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

32. Install the timing chain sprocket.

    Courtesy of FORD MOTOR COMPANY

33. 1. Install the LH timing chain with the single colored links aligned with the timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

34. Install the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

35. 1. Position the tensioner in a soft-jawed vise.
    2. Using pliers, squeeze the ends of the ratchet wire clip together.
    3. Using the soft-jawed vise, compress the plunger to the reset position.
    4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.

    Courtesy of FORD MOTOR COMPANY

36. 1. Position the LH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    2. Install the studbolt, bolt.

       Torque: 89 lb.in (10 Nm)

    3. Remove the pin.

    Courtesy of FORD MOTOR COMPANY

37. Install the LH timing chain guide and bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

38. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

39. 1. Install the RH timing chain with the single colored links aligned with the timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

40. Install the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

41. 1. Position the tensioner in a soft-jawed vise.
    2. Using pliers, squeeze the ends of the ratchet wire clip together.
    3. Using the soft-jawed vise, compress the plunger to the reset position.
    4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.

    Courtesy of FORD MOTOR COMPANY

42. 1. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    2. Install the retainers.

       Torque: 89 lb.in (10 Nm)

    3. Remove the pin.

    Courtesy of FORD MOTOR COMPANY

43. Install the RH timing chain guide and bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

44. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

45. Tighten the upper bell housing-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Install the engine front cover. Refer to: Engine Front Cover .
