Oil Pan - Vehicles Built From: 20-March-2018: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

4x2/4x4

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

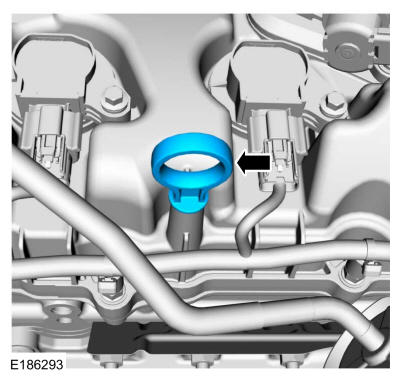

  3. Remove the oil level indicator.
    GFD272444Courtesy of FORD MOTOR COMPANY
    • If equipped.Remove the bolts.

    • Release the retainer and remove the transmission housing cover.

    GFD272345Courtesy of FORD MOTOR COMPANY
  5. NOTE: Vehicles come with an underbody shield or a skid plate.

    • If equipped.Remove the pin-type retainers.

    • Remove the bolts and the underbody shield.

    GFD272377Courtesy of FORD MOTOR COMPANY

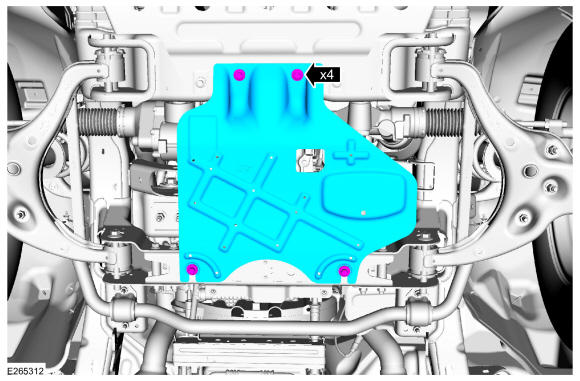

  6. NOTE: Vehicles come with an underbody shield or a skid plate.

    If equipped.Remove the bolts and the skid plate.

    GFD272445Courtesy of FORD MOTOR COMPANY
  7. NOTE: Vehicles come with an underbody shield or a skid plate.

    If equipped.Remove the bolts and the skid plate.

    GFD272446Courtesy of FORD MOTOR COMPANY

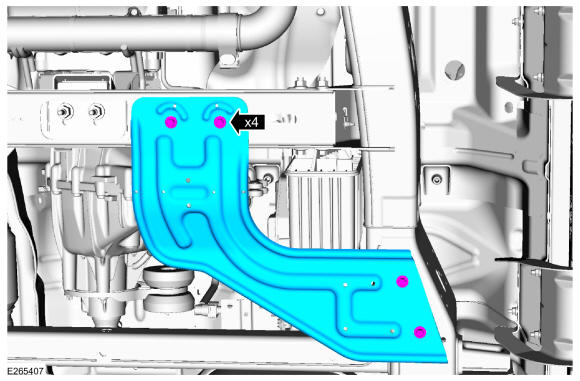

  8. NOTE: Vehicles come with an underbody shield or a skid plate.

    If equipped.Remove the bolts and the skid plate.

    GFD272447Courtesy of FORD MOTOR COMPANY
  9. Loosen the upper bellhousing bolts 5 mm (0.19 in).
    GFD272448Courtesy of FORD MOTOR COMPANY
  10. Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment.

    Torque: 20 lb.ft (27 Nm)

    GFD272303Courtesy of FORD MOTOR COMPANY

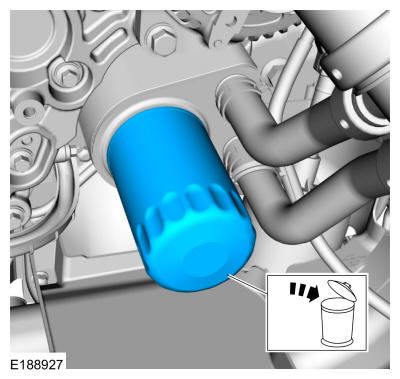

  11. Remove and discard the oil filter. Use the General Equipment: Oil Drain Equipment.
    GFD272449Courtesy of FORD MOTOR COMPANY
  12. Remove the starter. Refer to: Starter Motor .
  13. Remove the pin-type retainers. Position the wiring harness and transmission tube from the oil pan.
    GFD272450Courtesy of FORD MOTOR COMPANY

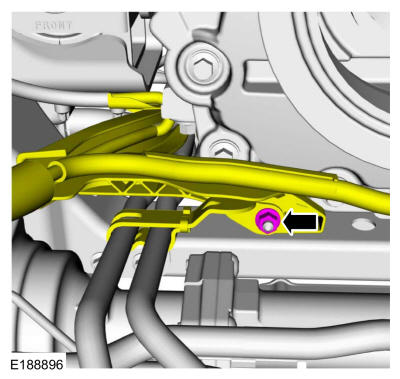

  14. Remove the nut and position out the transmission cooler tube bracket. Position out the engine wiring harness.
    GFD272451Courtesy of FORD MOTOR COMPANY

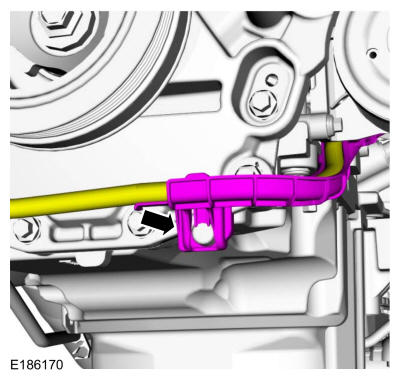

  15. Detach the generator wiring harness from the engine front cover.
    GFD272452Courtesy of FORD MOTOR COMPANY
  16. Remove the bolt and position aside the transmission cooler tube.
    GFD272453Courtesy of FORD MOTOR COMPANY
  17. Remove the transmission cooler bracket bolt.
    GFD272454Courtesy of FORD MOTOR COMPANY
  18. Remove the bolts and position the transmission cooler.
    GFD272455Courtesy of FORD MOTOR COMPANY
  19. Remove the nuts, bolts and the crossmember.
    GFD272456Courtesy of FORD MOTOR COMPANY

    4x4

  20. Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands.
    GFD272354Courtesy of FORD MOTOR COMPANY
  21. Remove the axle shaft housing carrier bushing bolt.
    GFD272355Courtesy of FORD MOTOR COMPANY
  22. Remove the upper front axle carrier mounting bushing bolt.
    GFD272457Courtesy of FORD MOTOR COMPANY
  23. Remove the lower front axle carrier mounting bushing bolt.
    GFD272458Courtesy of FORD MOTOR COMPANY
  24. Using an adjustable stand, lower the axle to allow clearance for the oil pan to be removed. Use the General Equipment: Vehicle/Axle Stands.
    GFD272358Courtesy of FORD MOTOR COMPANY

    4x2/4x4

  25. Remove the oil pan bolt.
    GFD272459Courtesy of FORD MOTOR COMPANY
  26. Loosen the bellhousing bolt 5 mm (0.19 in).
    GFD272460Courtesy of FORD MOTOR COMPANY
  27. Remove the oil pan bolts.
    GFD272461Courtesy of FORD MOTOR COMPANY
  28. Loosen the bellhousing bolts 5 mm (0.19 in).
    GFD272462Courtesy of FORD MOTOR COMPANY
  29. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmenber nuts.

    GFD272463Courtesy of FORD MOTOR COMPANY
  30. Separate the engine and transmission 5 mm (0.19 in).
    GFD272464Courtesy of FORD MOTOR COMPANY

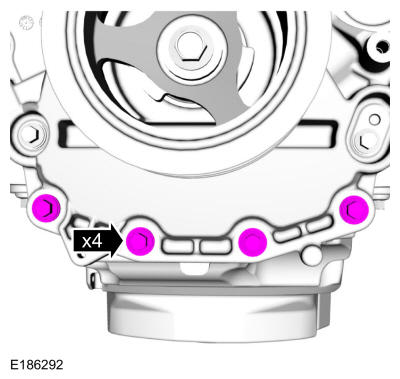

  31. Remove the engine front cover bolts.
    GFD272465Courtesy of FORD MOTOR COMPANY

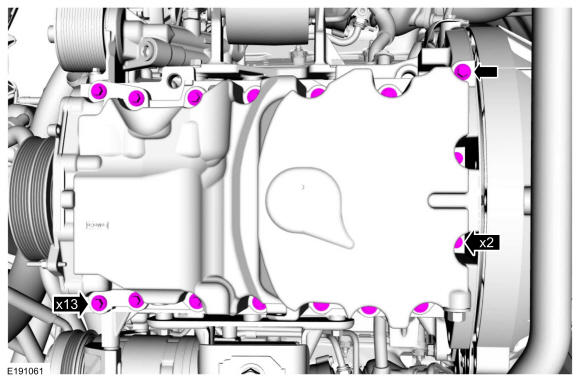

  32. Remove the oil pan bolts.
    GFD272466Courtesy of FORD MOTOR COMPANY

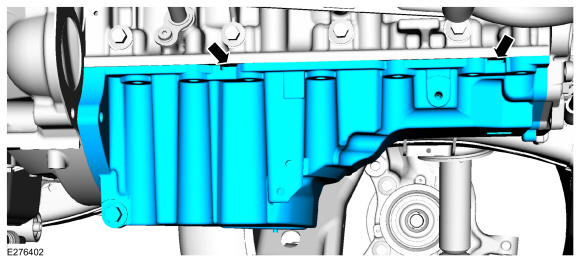

  33. NOTE: RH shown, LH similar.

    Using a pry tool on the pry pads, remove the oil pan.

    GFD272467Courtesy of FORD MOTOR COMPANY

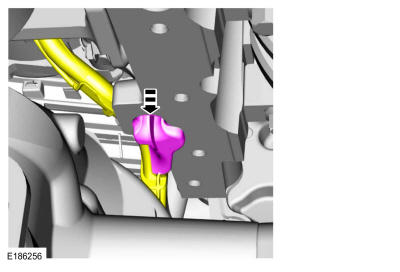

  34. NOTE: The generator wiring harness retainer is being removed for clearance to install the oil pan.

    Detach the generator wiring harness retainer from the engine block.

    GFD272468Courtesy of FORD MOTOR COMPANY

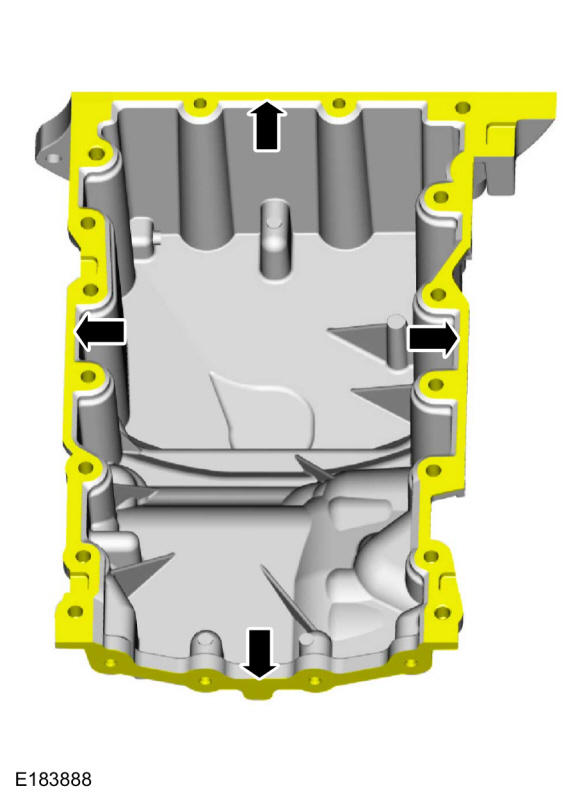

  35. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the oil pan and engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.

    • Make sure that the mating faces of the oil pan and engine front cover are clean and free of foreign material.

      Material

      : Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material

      : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

    GFD272469Courtesy of FORD MOTOR COMPANY

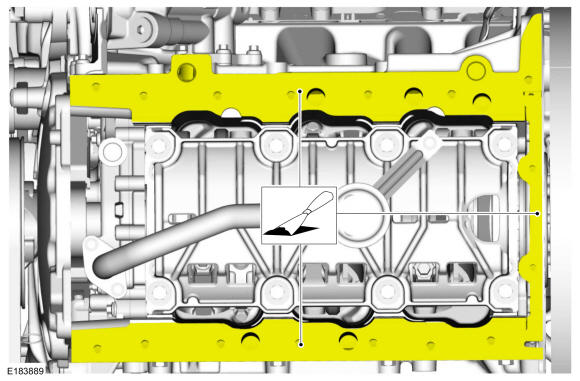

  36. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper.

    Material

    : Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD272470Courtesy of FORD MOTOR COMPANY

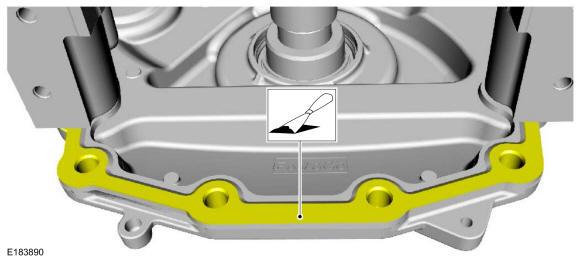

  37. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine front cover are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper.

    Material

    : Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

GFD272471Courtesy of FORD MOTOR COMPANY
