Oil Cooler: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the oil cooler-to-oil filter adapter is aligned.

Install the oil cooler and the retainer.

Torque:

Stage 1: 43 lb.ft (58 Nm)

Stage 2: 9°

Courtesy of FORD MOTOR COMPANY

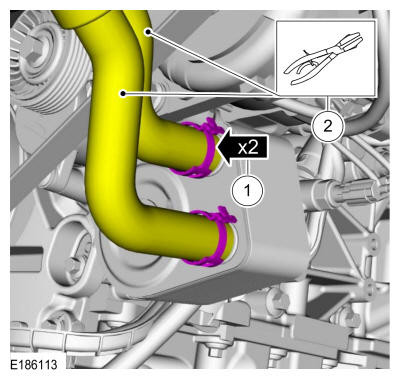

1. Using the hose clamp installer, install the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer.
2. Remove the hose locking pliers. Use the General Equipment: Locking Pliers.
Courtesy of FORD MOTOR COMPANY
Connect the block heater cord.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the engine oil filter gasket.

Install a new engine oil filter.

Torque:Stage 1: 44 lb.in (5 Nm)Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
Slide the engine appearance cover into the retaining bracket and install the retainers.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

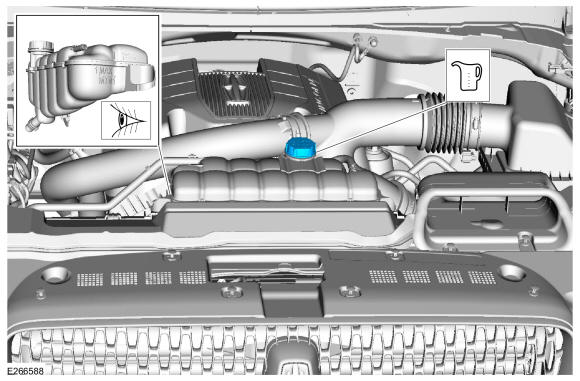

Inspect and adjust the coolant level in the degas bottle.
Material

: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

Courtesy of FORD MOTOR COMPANY

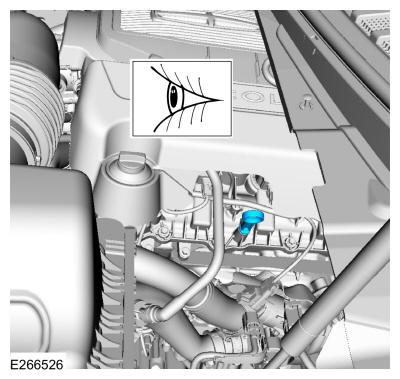

Inspect the engine oil level.

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil as needed. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
