Exhaust Manifold RH: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking And Lifting .
Remove the RH turbocharger. Refer to:FUEL CHARGING AND CONTROLS - TURBOCHARGER - 3.5L ECOBOOST (272KW/370PS) .

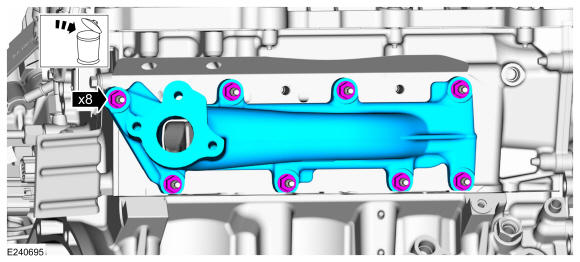

- Remove and discard the nuts.
- Remove the exhaust manifold.
Courtesy of FORD MOTOR COMPANY

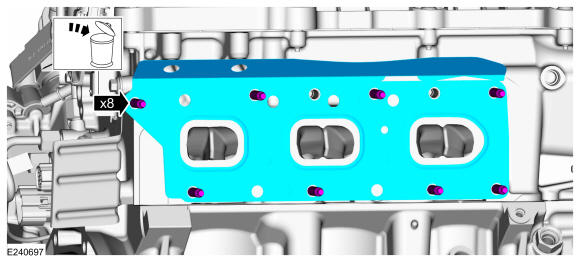

Remove and discard the exhaust manifold gasket and studs.

Courtesy of FORD MOTOR COMPANY
- Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
- NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These may cause scratches and gouges resulting in leak paths. Use a plastic scraper to clean the sealing surfaces.

  Clean the exhaust manifold mating surface of the cylinder head with metal surface prep wipes. Follow the directions on the packaging.

  Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
