Engine Mount RH: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Discard all engine mount fasteners and install new fasteners.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. On both sides.Index-mark the hood hinge location.
    GFD272337Courtesy of FORD MOTOR COMPANY
  3. Remove the nuts and the hood.
    GFD272338Courtesy of FORD MOTOR COMPANY
    1. Release the clip.
    2. Detach and position the hood shock aside.
    GFD272339Courtesy of FORD MOTOR COMPANY
  5. Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
    GFD272302Courtesy of FORD MOTOR COMPANY
  6. Remove CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  7. Remove CAC outlet pipe. Refer to: CHARGE AIR COOLER (CAC) OUTLET PIPE .
  8. Remove the intake manifold. Refer to: Intake Manifold .
  9. Remove the right rear ignition coil. Refer to: Ignition Coil-On-Plug .
  10. Remove the cowl panel. Refer to: Cowl Panel .
  11. Remove the bolt and pin-type retainers and the air cleaner inlet tube.
    GFD272340Courtesy of FORD MOTOR COMPANY
  12. Remove the pin-type retainers and the air deflector.
    GFD272341Courtesy of FORD MOTOR COMPANY
  13. On both sides.Index-mark the hood hinge location.
    GFD272342Courtesy of FORD MOTOR COMPANY
  14. On both sides.Remove the bolts and the hood hinge.
    GFD272343Courtesy of FORD MOTOR COMPANY
  15. Install the special tools.Install Special Service Tool: 303-F070 Support Bar, Engine., 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes.

    Torque: 18 lb.ft (25 Nm)

    GFD272344Courtesy of FORD MOTOR COMPANY
  16. Remove the bolts and the transmission housing cover.
    GFD272345Courtesy of FORD MOTOR COMPANY
  17. Remove the bolts and the underbody shield.
    GFD272346Courtesy of FORD MOTOR COMPANY
  18. If equipped, remove the front driveshaft. Refer to: Front Driveshaft .
  19. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the LH catalytic converter flange nuts.

    GFD272347Courtesy of FORD MOTOR COMPANY
  20. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the RH catalytic converter flange nuts.

    GFD272348Courtesy of FORD MOTOR COMPANY
  21. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    GFD272349Courtesy of FORD MOTOR COMPANY
  22. Remove the following items:

    1. Remove the starter motor. Refer to: Starter Motor .
    2. Remove the A/C belt. Refer to: Air Conditioning (A/C) Compressor Belt .

  23. Remove the nuts and position aside the CAC tube bracket.
    GFD272379Courtesy of FORD MOTOR COMPANY
  24. Disconnect the coolant pump electrical connector. Remove the bolts and position aside the coolant pump.
    GFD272380Courtesy of FORD MOTOR COMPANY
  25. Disconnect the A/C compressor electrical connectors and wire retainer.
    GFD272381Courtesy of FORD MOTOR COMPANY
  26. Remove the bolts and position aside the A/C compressor.
    GFD272382Courtesy of FORD MOTOR COMPANY
  27. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the RH engine mount through bolt.

    GFD272350Courtesy of FORD MOTOR COMPANY
  28. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

    GFD272351Courtesy of FORD MOTOR COMPANY

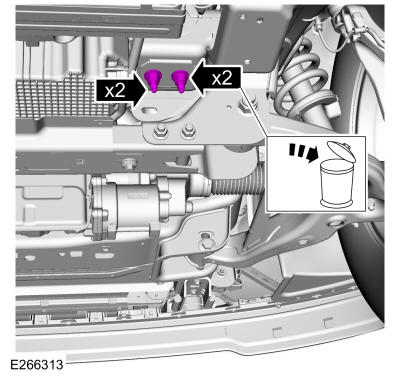

  29. NOTE: Only use hand tools when loosening or tightening the engine mount nuts and studs or damage to the engine mount can occur.
    NOTE: The engine mount studs may come off with the nuts.

    Remove and discard the engine mount nuts. Remove the engine mount studs.

    GFD272383Courtesy of FORD MOTOR COMPANY
  30. Raise the engine approximately 30 mm (1.18 in).
    GFD272352Courtesy of FORD MOTOR COMPANY

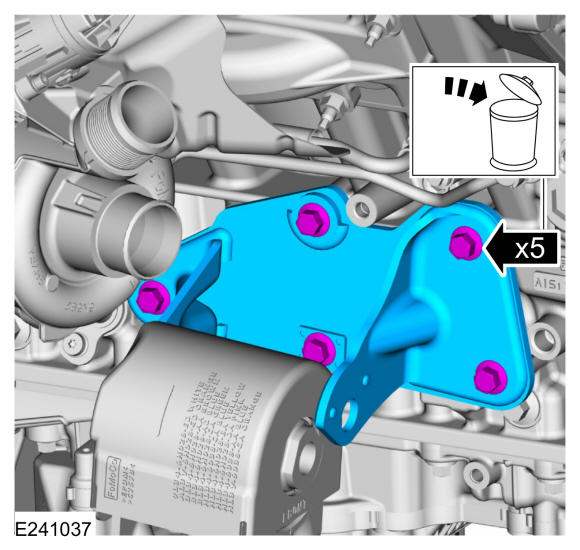

  31. Remove the bolts and the RH engine mount-to-cylinder block bracket. Discard the bolts.
    GFD272384Courtesy of FORD MOTOR COMPANY
  32. Remove the RH engine mount.
GFD272385Courtesy of FORD MOTOR COMPANY
