Engine Mount RH: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

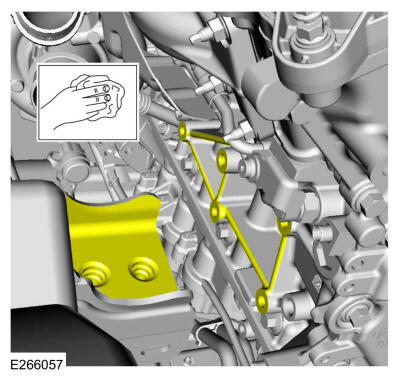

  1. Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
    GFD272386Courtesy of FORD MOTOR COMPANY

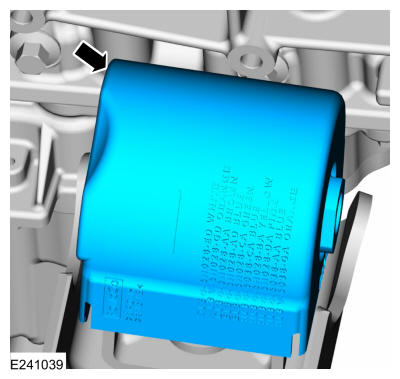

  2. Position the RH engine mount into the vehicle.
    GFD272385Courtesy of FORD MOTOR COMPANY

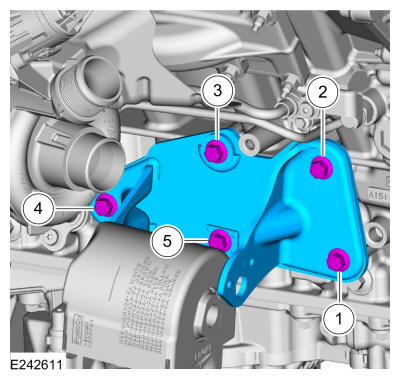

  3. Position the RH engine mount-to-cylinder block bracket and install the new bolts in the sequence shown.

    Torque: 57 lb.ft (77 Nm)

    Fig 1: RH Engine Mount Tightening Sequence
    GFD272387Courtesy of FORD MOTOR COMPANY

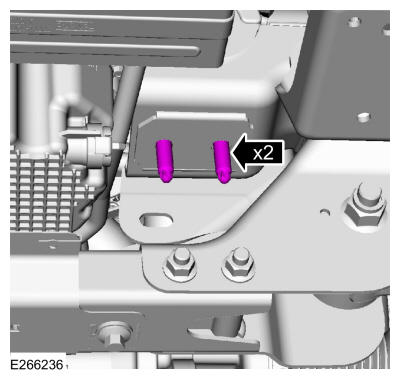

  4. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the RH engine mount studs.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 22 lb.ft (30 Nm)

    GFD272388Courtesy of FORD MOTOR COMPANY

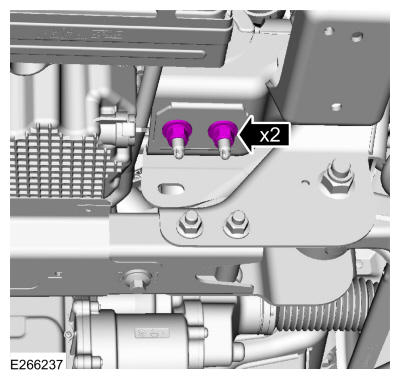

  5. NOTE: Only use hand tools when installing the RH engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

    GFD272389Courtesy of FORD MOTOR COMPANY
  6. Lower the engine to the installed position.
    GFD272372Courtesy of FORD MOTOR COMPANY
  7. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD272373Courtesy of FORD MOTOR COMPANY
  8. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new RH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD272374Courtesy of FORD MOTOR COMPANY

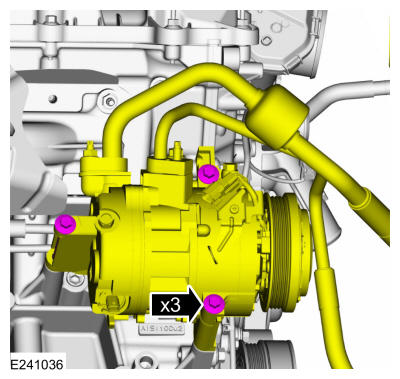

  9. Position back the A/C compressor and install the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD272382Courtesy of FORD MOTOR COMPANY

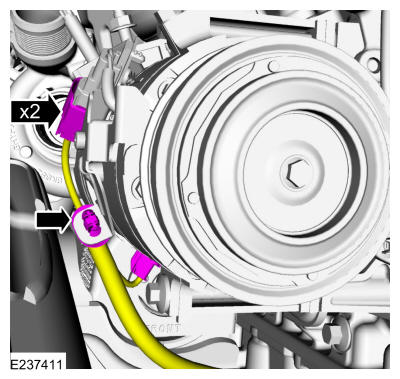

  10. Connect the A/C compressor electrical connectors and wire retainer.
    GFD272381Courtesy of FORD MOTOR COMPANY

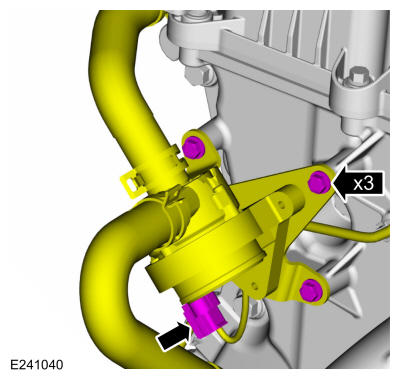

  11. Position back the coolant pump and install the bolts. Connect the coolant pump electrical connector.

    Torque: 62 lb.in (7 Nm)

    GFD272380Courtesy of FORD MOTOR COMPANY

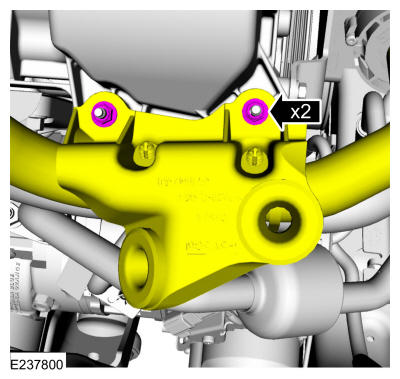

  12. Position back the CAC tube bracket and install the nuts.

    Torque: 53 lb.in (6 Nm)

    GFD272379Courtesy of FORD MOTOR COMPANY
  13. Install the following items:

    1. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
    2. Install the starter motor. Refer to: Starter Motor .

  14. NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    GFD272349Courtesy of FORD MOTOR COMPANY
  15. Install the new RH catalytic converter-to-turbocharger nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD272375Courtesy of FORD MOTOR COMPANY
  16. Install the new LH catalytic converter-to-turbocharger nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD272376Courtesy of FORD MOTOR COMPANY
  17. If equipped.Install the front driveshaft. Refer to: Front Driveshaft .
    • Install the underbody shield and the bolts.

      Torque: 30 lb.ft (40 Nm)

    • Install the underbody shield and the bolts

      Torque: 71 lb.in (8 Nm)

    GFD272377Courtesy of FORD MOTOR COMPANY
    • Install the transmission housing cover and attach the bolts.

      Torque: 71 lb.in (8 Nm)

    GFD272345Courtesy of FORD MOTOR COMPANY
  18. Remove the special tools.Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes.
    GFD272344Courtesy of FORD MOTOR COMPANY
  19. Install the air deflector and pin-type retainers.
    GFD272341Courtesy of FORD MOTOR COMPANY
  20. Install the air cleaner inlet tube, pin-type retainers and bolt.
    GFD272340Courtesy of FORD MOTOR COMPANY
  21. NOTE: Align the index marks made during hinge removal.

    On Both sides.

    • Install the hood hinge and bolts.

      Torque: 22 lb.ft (30 Nm)

    • Install the fender to hood hinge bolts.

      Torque: 80 lb.in (9 Nm)

    GFD272378Courtesy of FORD MOTOR COMPANY
  22. Install the struts.
    GFD272339Courtesy of FORD MOTOR COMPANY
  23. NOTE: Align the index marks made during hood removal.

    Position the hood and install the nuts.

    Torque: 18 lb.ft (25 Nm)

    GFD272338Courtesy of FORD MOTOR COMPANY
  24. Install the right rear ignition coil. Refer to: Ignition Coil-On-Plug .
  25. Install the intake manifold. Refer to: Intake Manifold .
  26. Install the CAC outlet pipe. Refer to: CHARGE AIR COOLER (CAC) OUTLET PIPE .
  27. Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  28. Install the cowl panel. Refer to: Cowl Panel .
  29. Slide the engine appearance cover into the retaining bracket and install the retainers.

    Torque: 97 lb.in (11 Nm)

    GFD272302Courtesy of FORD MOTOR COMPANY
  30. Start and check the exhaust system for leaks.
