Section 1072 (Engine - 3.5L ECOBOOST (272KW/370PS)): Installation: Engine

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

GFD271387Courtesy of FORD MOTOR COMPANY
303-1246Engine Spreader Bar, TKIT-2006UF-FLM, TKIT-2006UF-ROW
GFD271388Courtesy of FORD MOTOR COMPANY
303-1654Lift Eyes
GFD272945Courtesy of FORD MOTOR COMPANY
307-346 (T97T-7902-A)Retainer, Torque Converter, TKIT-1998-LM (NavigatoR), TKIT-1997-F/FLM/LT
Floor Crane
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

Materials

Name Specification
Motorcraft® Multi-Purpose Grease SprayXL-5-A ESB-M1C93-B
Motorcraft® Threadlock 262TA-26 WSK-M2G351-A6
NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
  1. Inspect the TC or engine air intake system components and clean, if necessary.
    1. Inspect the engine mount-to-frame nut plate for thread damage.
    2. If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.

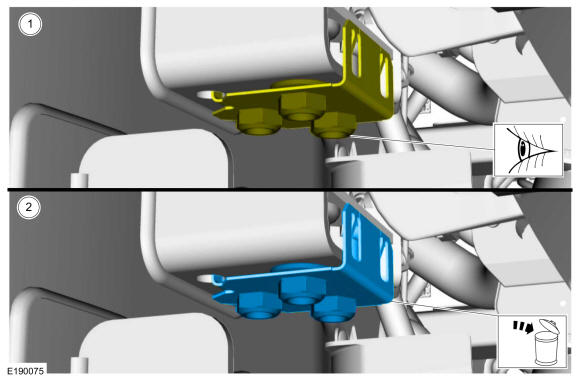

    GFD272946Courtesy of FORD MOTOR COMPANY
  2. NOTE: This step is only necessary when installing a new component.

    Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

    GFD272947Courtesy of FORD MOTOR COMPANY

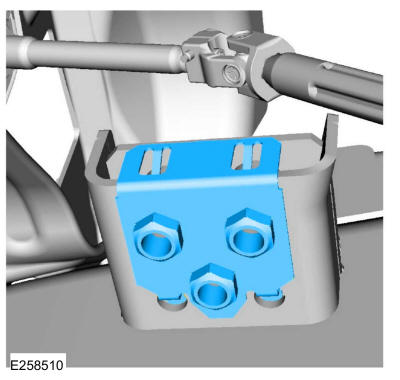

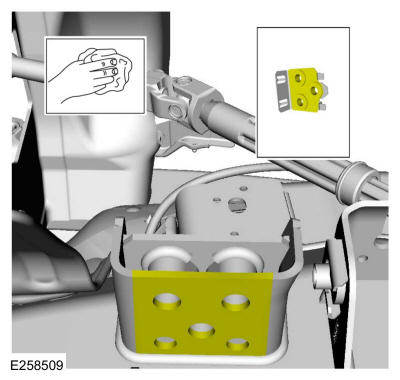

  3. NOTE: This step is only necessary when installing a new component.

    Install the nut plate.

    GFD272948Courtesy of FORD MOTOR COMPANY
  4. Remove Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

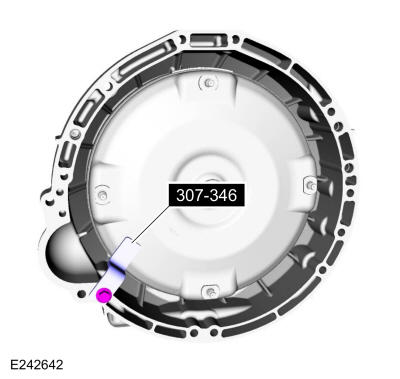

    GFD272949Courtesy of FORD MOTOR COMPANY

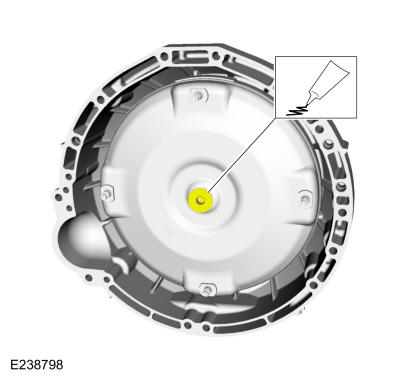

  5. Lubricate the torque converter pilot hub with multi-purpose grease.

    Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD272950Courtesy of FORD MOTOR COMPANY
    1. Inspect the torque converter stud and flexplate for paint marks.

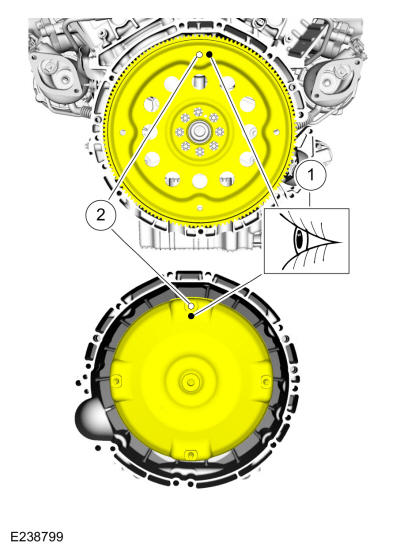

    2. Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.
    GFD272951Courtesy of FORD MOTOR COMPANY
  6. NOTE: The use of a ratchet strap may be needed to level the engine.
    NOTE: Use a commercially available quick link on the chain to minimize the spread of the chain.

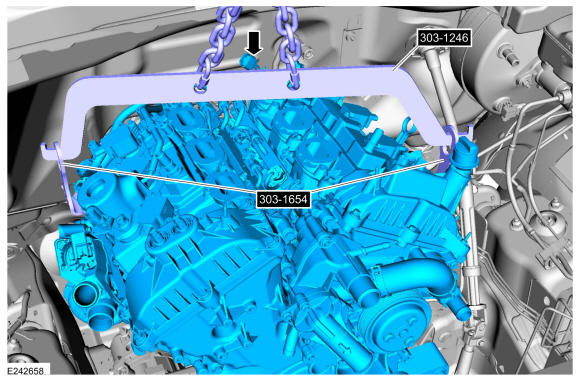

    Using the floor crane, lift eyes and the engine spreader bar, position the engine in the engine compartment. Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane.

    GFD272952Courtesy of FORD MOTOR COMPANY

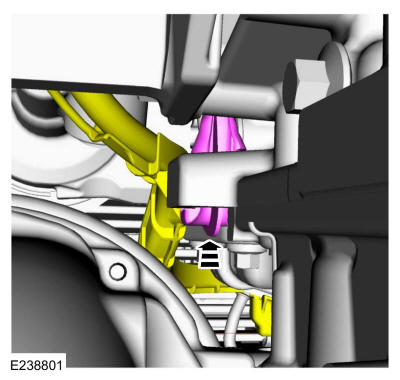

  7. Position back and attach the generator wiring harness retainer to the lower LH side of the engine block.
    GFD272953Courtesy of FORD MOTOR COMPANY

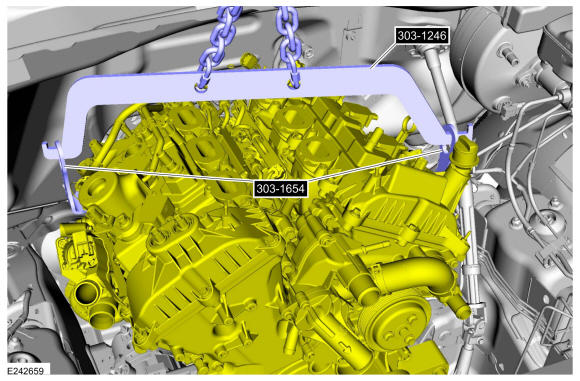

  8. Using the floor crane, lift eyes and the engine spreader bar, position the engine to the transmission.Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane.
    GFD272954Courtesy of FORD MOTOR COMPANY

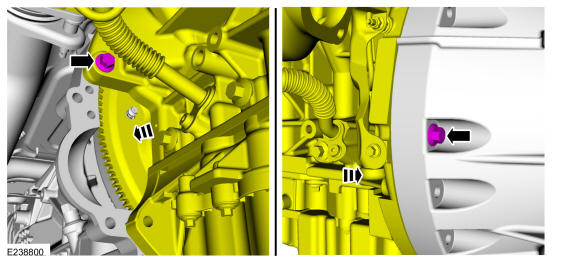

  9. Align the engine to the transmission and draw together using the bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD272955Courtesy of FORD MOTOR COMPANY

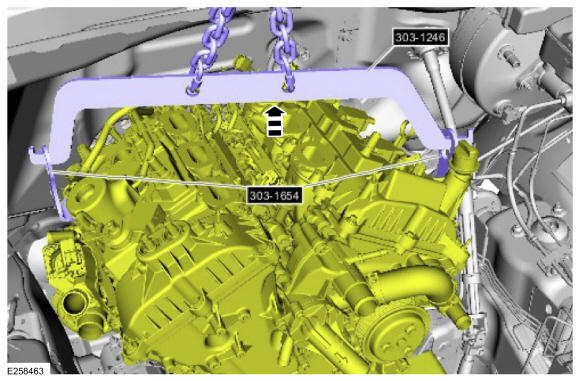

  10. Using the floor crane, lift eyes and the engine spreader bar, raise the engine for clearance to install the LH engine mount.Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane.
    GFD272956Courtesy of FORD MOTOR COMPANY
  11. Install the LH engine mount.

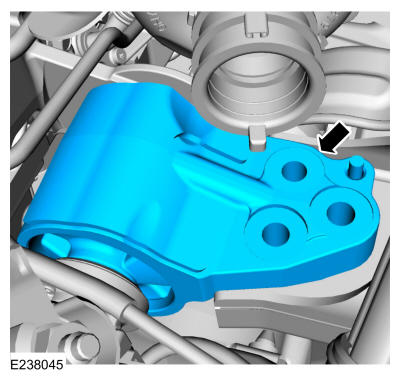

    GFD272957Courtesy of FORD MOTOR COMPANY
  12. NOTE: Use only hand tools when installing the LH engine mount through bolt or the engine mount may be damaged.

    • Install the new LH mount through bolt.

    • Do not torque at this time.

    GFD272958Courtesy of FORD MOTOR COMPANY
  13. Using the floor crane, lift eyes and the engine spreader bar, lower the engine.Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane.

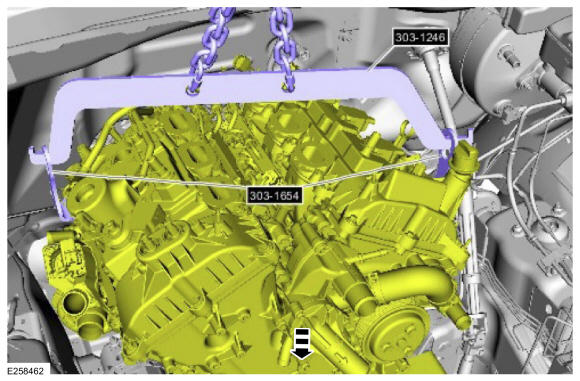

    GFD272959Courtesy of FORD MOTOR COMPANY
  14. Install the new LH engine mount bolts.

    Torque: 129 lb.ft (175 Nm)

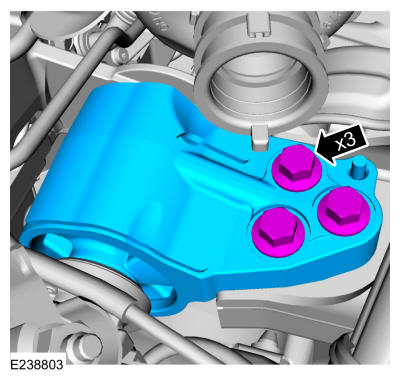

    GFD272960Courtesy of FORD MOTOR COMPANY

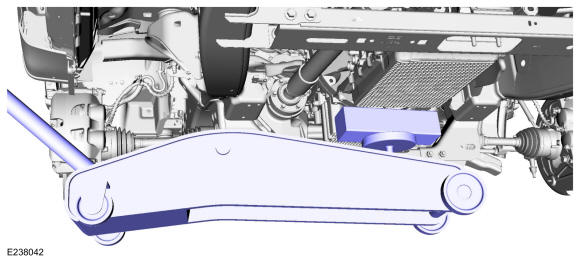

  15. Remove the floor jack and the block of wood. Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block.
    GFD272961Courtesy of FORD MOTOR COMPANY

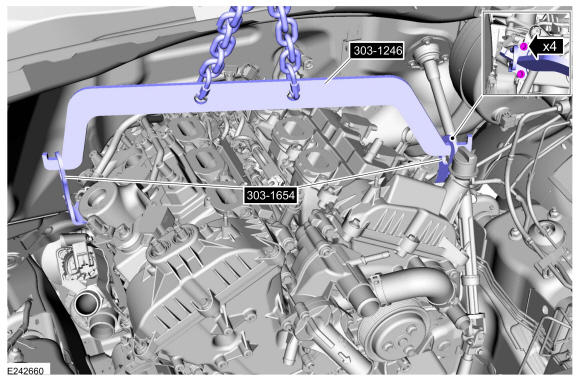

  16. Remove the floor crane, lift eyes and the engine spreader bar. Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane.
    GFD272962Courtesy of FORD MOTOR COMPANY
  17. Install the right rear ignition coil. Refer to: Ignition Coil-On-Plug .
  18. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

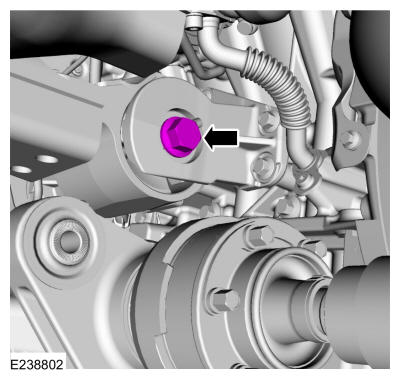

    Tighten the LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD272958Courtesy of FORD MOTOR COMPANY
  19. NOTE: Only use hand tools when installing the engine mount nuts and studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the RH engine mount studs.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 22 lb.ft (30 Nm)

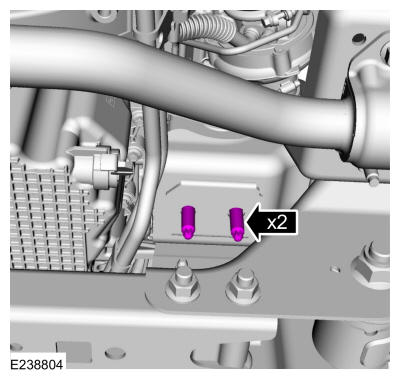

    GFD272963Courtesy of FORD MOTOR COMPANY
  20. NOTE: Only use hand tools when installing the engine mount nuts and studs or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

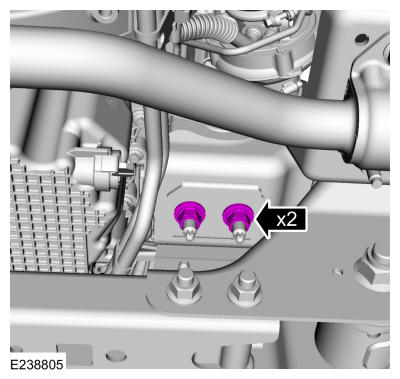

    GFD272964Courtesy of FORD MOTOR COMPANY

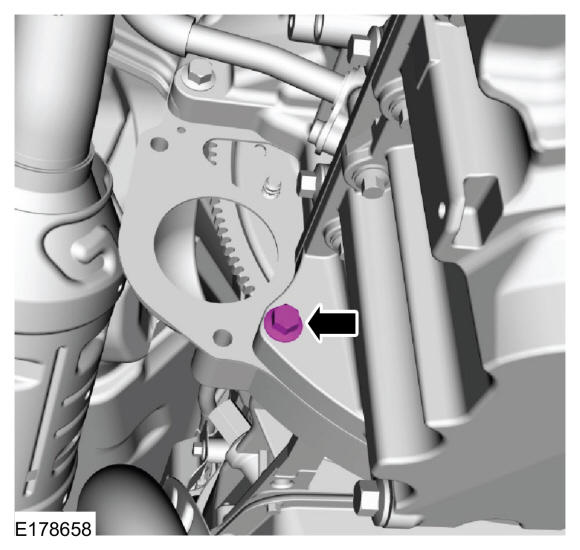

  21. Install the RH side bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD272965Courtesy of FORD MOTOR COMPANY

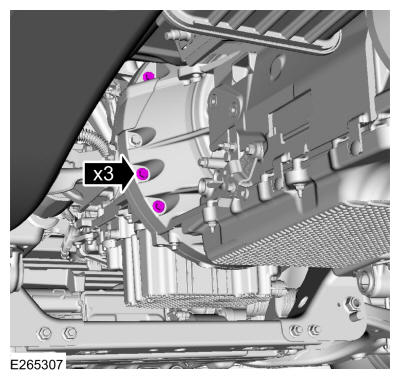

  22. Install the LH side bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD272966Courtesy of FORD MOTOR COMPANY

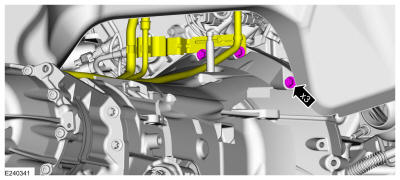

  23. Install the upper bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD272967Courtesy of FORD MOTOR COMPANY
  24. Install the lower bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD272968Courtesy of FORD MOTOR COMPANY

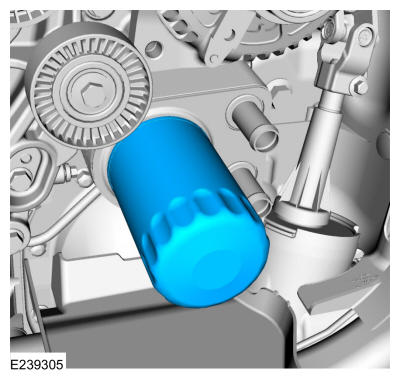

  25. NOTE: Do not lubricate the engine oil filter gasket.

    Install a new oil filter.

    Torque:

    Stage 1: 44 lb.in (5 Nm)

    Stage 2: 180°

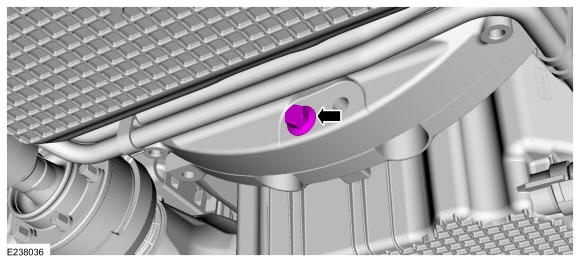

    GFD272969Courtesy of FORD MOTOR COMPANY

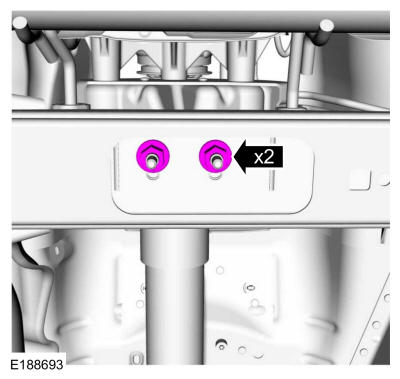

  26. NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    GFD272970Courtesy of FORD MOTOR COMPANY

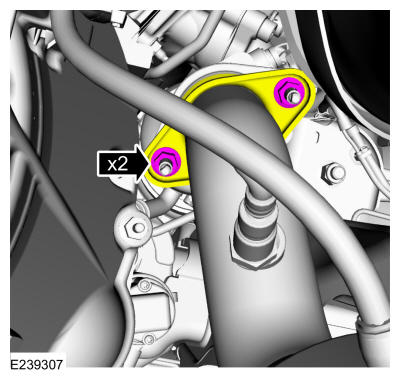

  27. Install the new RH catalytic converter-to- TC nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD272971Courtesy of FORD MOTOR COMPANY

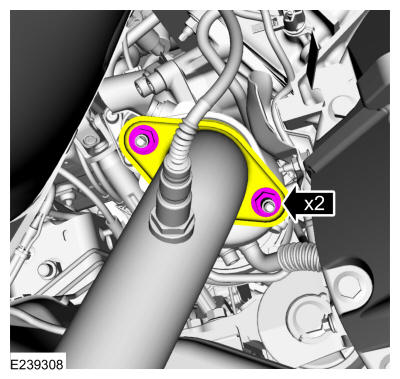

  28. Install the new LH catalytic converter-to- TC nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD272972Courtesy of FORD MOTOR COMPANY

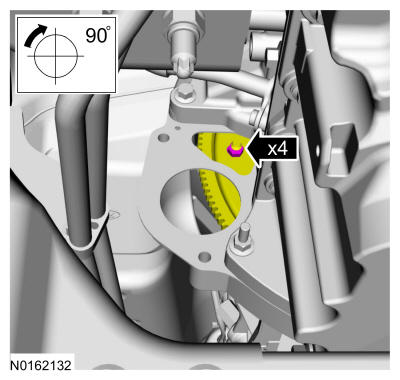

  29. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install new torque converter nuts.

    Torque: 35 lb.ft (48 Nm)

    GFD272973Courtesy of FORD MOTOR COMPANY

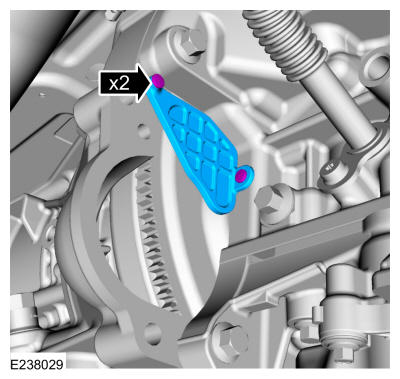

  30. Install the access cover and the retainers.
    GFD272974Courtesy of FORD MOTOR COMPANY
  31. Install the starter motor. Refer to: Starter Motor .
  32. If equipped.Install the front driveshaft. Refer to: Front Driveshaft .

    Vehicles with late build oil pan

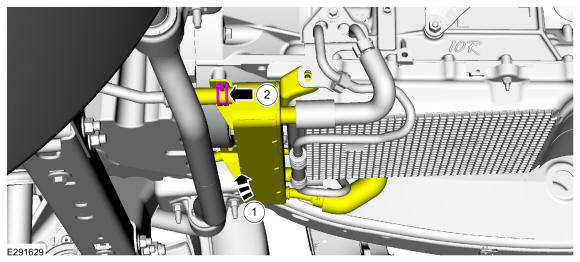

    • Position the transmission fluid cooler back.

    • Install the coolant hose and the clamp.

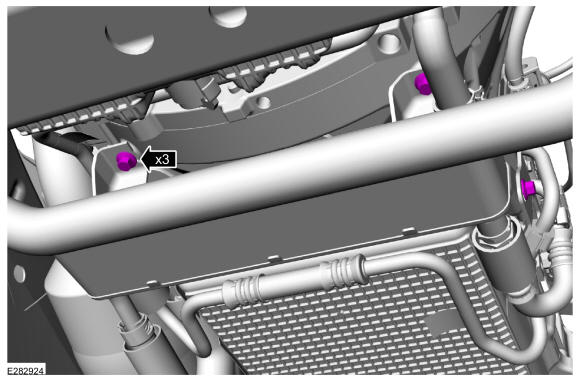

    GFD272975Courtesy of FORD MOTOR COMPANY
  33. Install the transmission cooler bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD272976Courtesy of FORD MOTOR COMPANY

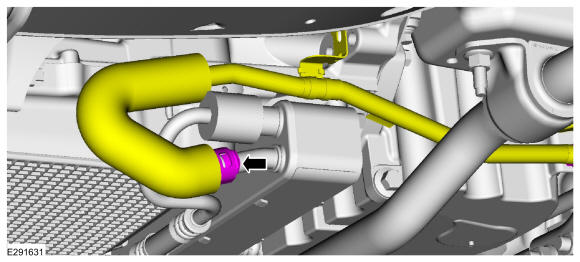

  34. Connect the coolant hose to the transmission fluid cooler.
    GFD272977Courtesy of FORD MOTOR COMPANY
  35. Position back the transmission cooler tube and install the bolt.

    Torque: 27 lb.in (3 Nm)

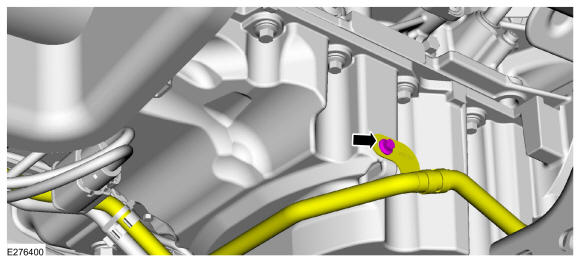

    GFD272978Courtesy of FORD MOTOR COMPANY

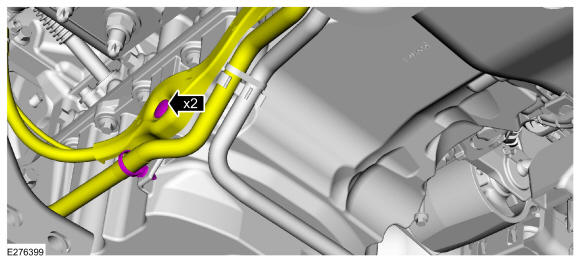

  36. Attach the starter motor wiring harness pin-type retainer and transmission tube pin-type retainer to the oil pan.

    Torque: 18 lb.ft (25 Nm)

    GFD272979Courtesy of FORD MOTOR COMPANY

    Vehicles with early build oil pan

    • Position the transmission fluid cooler back.

    • Install the coolant hose and the clamp.

    GFD272975Courtesy of FORD MOTOR COMPANY
  37. Install the transmission cooler bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD272976Courtesy of FORD MOTOR COMPANY

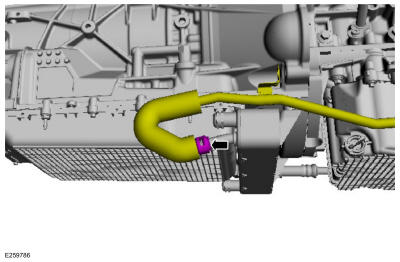

  38. Connect the coolant hose to the transmission fluid cooler. Use the General Equipment: Hose Clamp Remover/Installer.
    GFD272980Courtesy of FORD MOTOR COMPANY

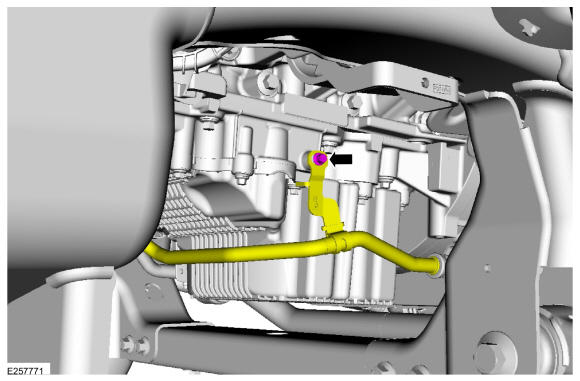

  39. Position back the transmission cooler tube and install the bolt.

    Torque: 27 lb.in (3 Nm)

    GFD272981Courtesy of FORD MOTOR COMPANY
  40. Attach the starter motor wiring harness retainer to the oil pan. Install the ground wire and the bolt.

    Torque: 18 lb.ft (25 Nm)

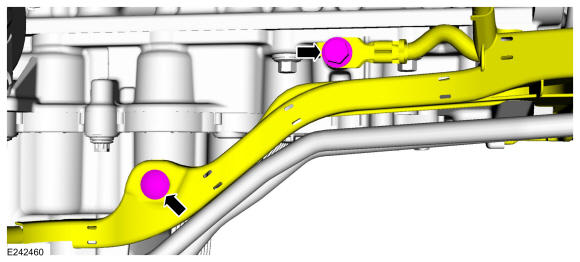

    GFD272982Courtesy of FORD MOTOR COMPANY

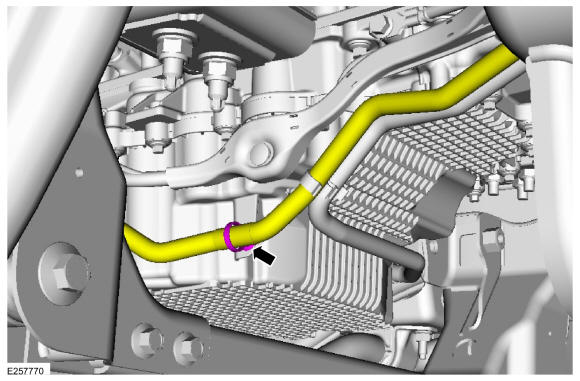

  41. Position back the transmission cooler tube and install the pin-type retainer.
    GFD272983Courtesy of FORD MOTOR COMPANY

    All vehicles

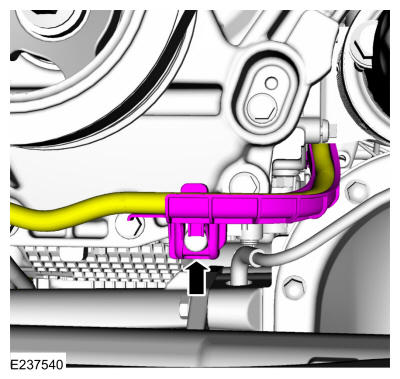

  42. Connect the generator wiring harness to the engine front cover.
    GFD272984Courtesy of FORD MOTOR COMPANY

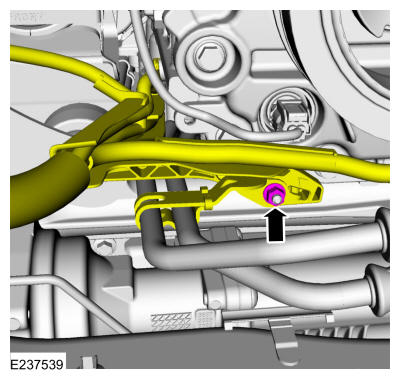

  43. Position back the engine wiring harness. Position back the transmission cooler tubes and install the nut.

    Torque: 106 lb.in (12 Nm)

    GFD272985Courtesy of FORD MOTOR COMPANY

    All vehicles

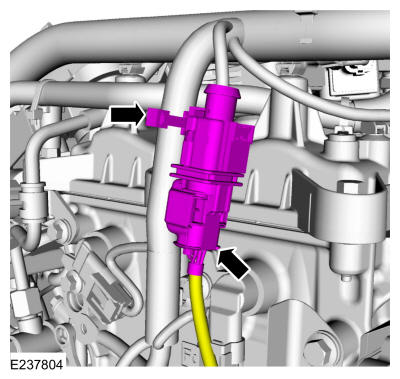

  44. Connect the RHHO2S electrical connector and the retainer.
    GFD272986Courtesy of FORD MOTOR COMPANY

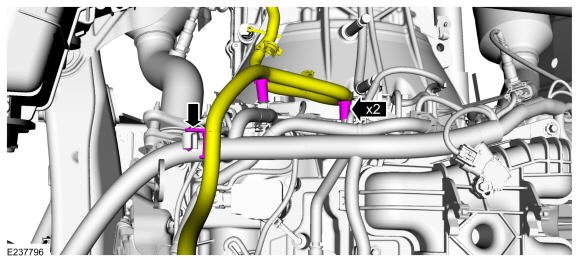

  45. Position back and connect the transmission wire harness retainers.
    GFD272987Courtesy of FORD MOTOR COMPANY

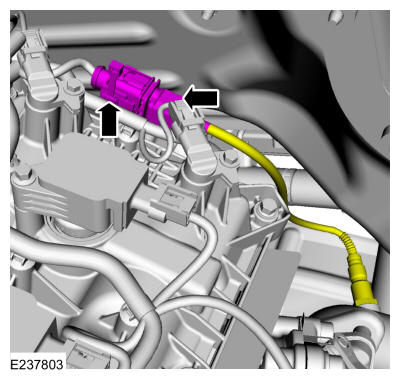

  46. Connect the LHHO2S electrical connector and the retainer.
    GFD272988Courtesy of FORD MOTOR COMPANY

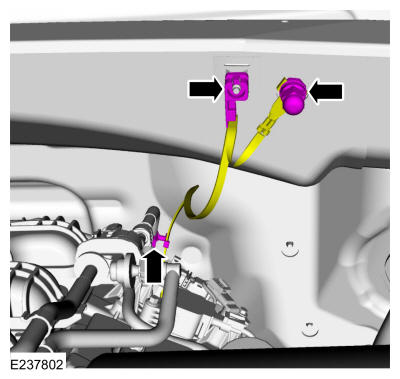

  47. Install the ground strap and the nut. Connect the ground strap retainers.

    Torque: 106 lb.in (12 Nm)

    GFD272989Courtesy of FORD MOTOR COMPANY

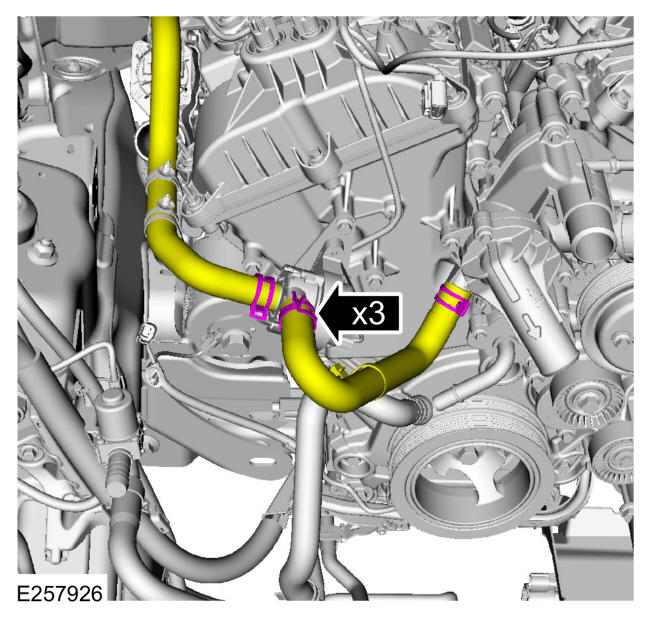

  48. Position back the cabin heater coolant pump hoses and the thermostat housing hose. Use the General Equipment: Hose Clamp Remover/Installer.
    GFD272990Courtesy of FORD MOTOR COMPANY

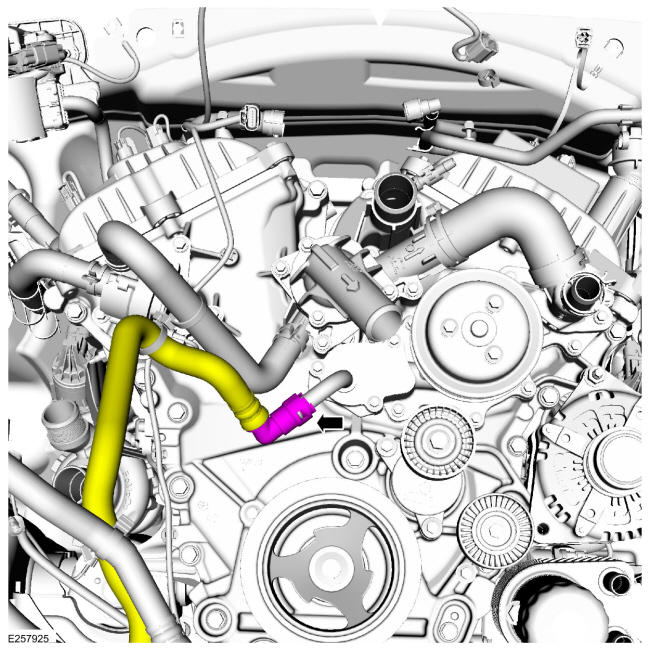

  49. Connect the lower coolant pump hose. Use the General Equipment: Hose Clamp Remover/Installer.
    GFD272991Courtesy of FORD MOTOR COMPANY

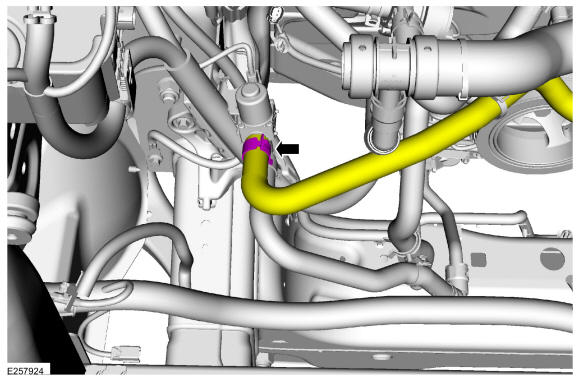

  50. Position back the coolant control valve hose. Use the General Equipment: Hose Clamp Remover/Installer.
    GFD272992Courtesy of FORD MOTOR COMPANY

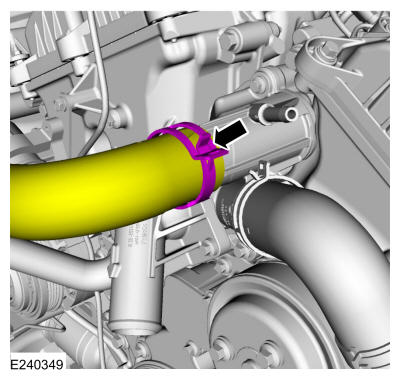

  51. Connect the radiator hose at the thermostat housing. Use the General Equipment: Hose Clamp Remover/Installer.
    GFD272993Courtesy of FORD MOTOR COMPANY

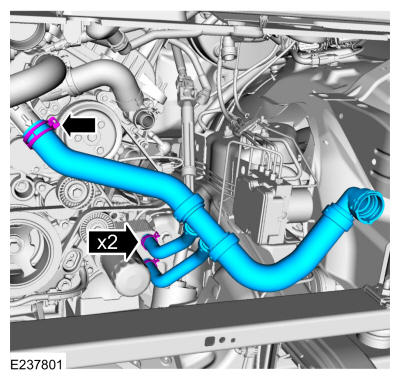

  52. Install the radiator hose. Connect the coolant hoses at the oil cooler. Use the General Equipment: Hose Clamp Remover/Installer.
    GFD272994Courtesy of FORD MOTOR COMPANY

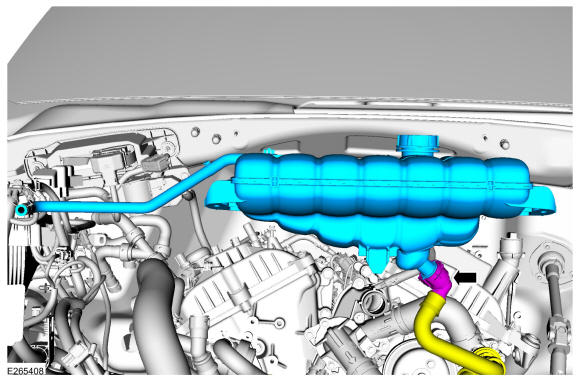

  53. Install the degas bottle hose and connect the coolant hose.
    GFD272995Courtesy of FORD MOTOR COMPANY

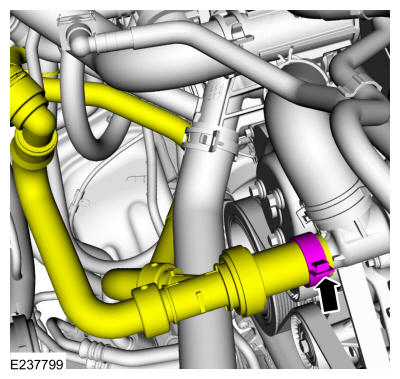

  54. Position back the degas bottle hose assembly and connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer.
    GFD272996Courtesy of FORD MOTOR COMPANY

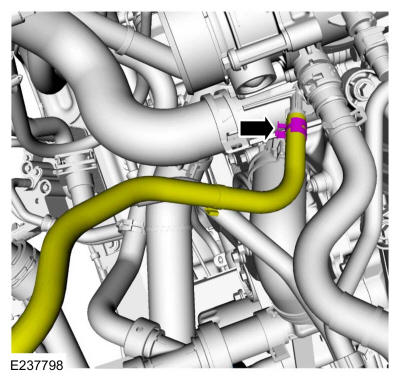

  55. Connect the degas bottle hose at the thermostat housing. Use the General Equipment: Hose Clamp Remover/Installer.
    GFD272997Courtesy of FORD MOTOR COMPANY

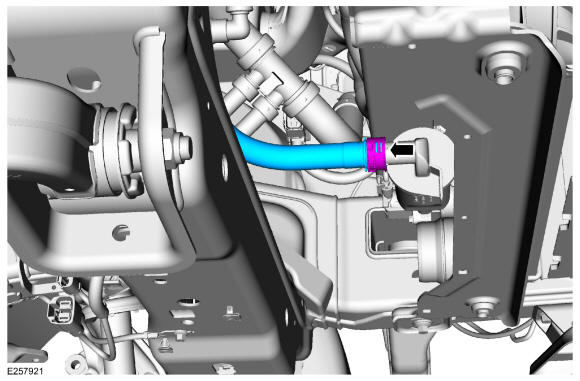

  56. Install the TC bypass valve tube. Use the General Equipment: Hose Clamp Remover/Installer.
    GFD272998Courtesy of FORD MOTOR COMPANY

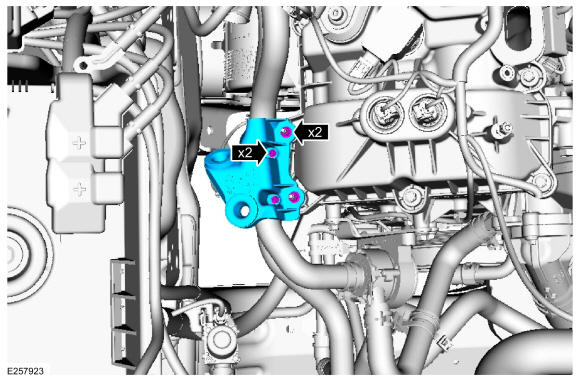

  57. Position back the CAC tube, install the pin-type retainers and the nuts.

    Torque: 53 lb.in (6 Nm)

    GFD272999Courtesy of FORD MOTOR COMPANY

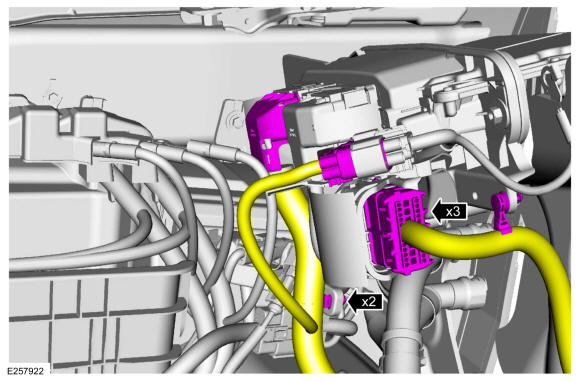

  58. Connect the PCM electrical connectors and the wire harness retainers.
    GFD273000Courtesy of FORD MOTOR COMPANY

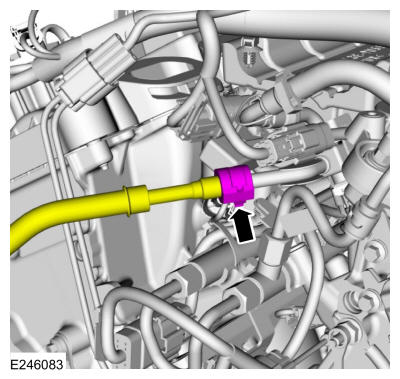

  59. Connect the fuel supply tube quick release coupling. Refer to: Quick Release Coupling .
    GFD273001Courtesy of FORD MOTOR COMPANY
  60. Install the intake manifold. Refer to: Intake Manifold .
    • Connect the electrical connector and the wire harness retainer.

    • Install the generator nut and position back the boot.

      Torque: 150 lb.in (17 Nm)

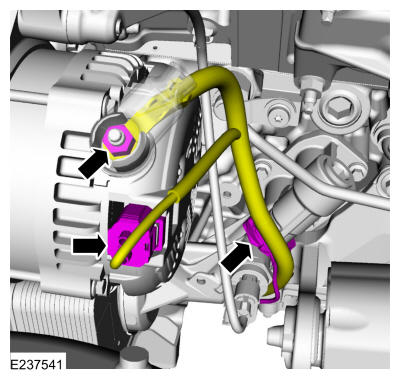

    GFD273002Courtesy of FORD MOTOR COMPANY
  61. Install the A/C compressor and tighten the bolts in the sequence shown.

    Torque: 18 lb.ft (25 Nm)

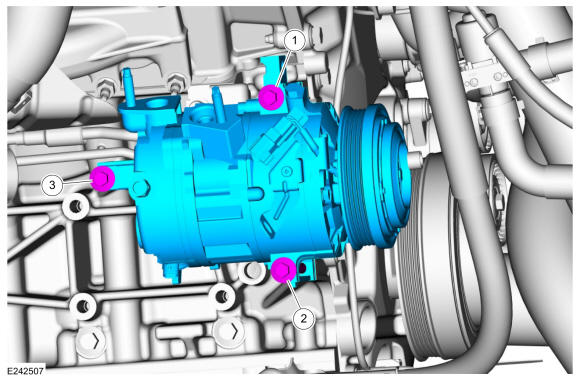

    GFD273003Courtesy of FORD MOTOR COMPANY

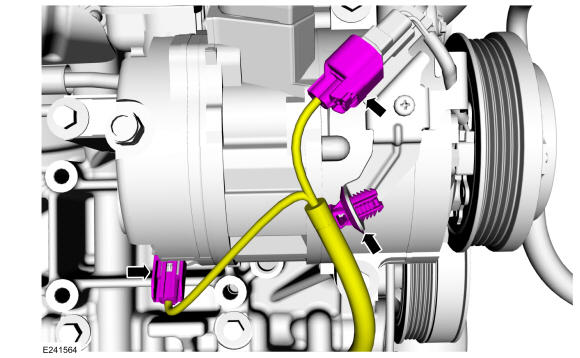

  62. Connect the A/C compressor electrical connectors and the wire harness retainer.
    GFD273004Courtesy of FORD MOTOR COMPANY

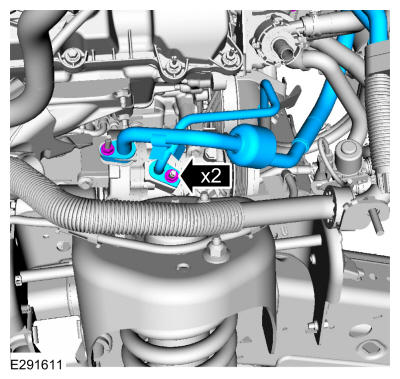

    • Install the new O-ring seals.

    • Install the A/C compressor lines.

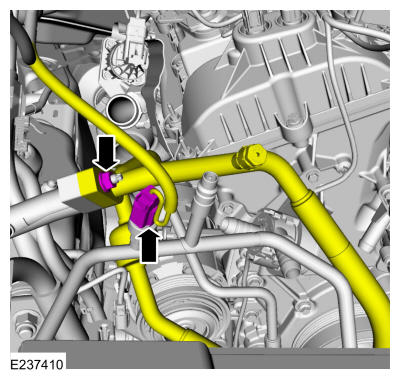

      Torque: 133 lb.in (15 Nm)

    GFD273005Courtesy of FORD MOTOR COMPANY
    • Connect the A/C pressure transducer electrical connector.

    • Install a new O-ring seal.

    • Connect the A/C compressor inlet line and install the nut.

      Torque: 133 lb.in (15 Nm)

    GFD273006Courtesy of FORD MOTOR COMPANY
  63. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
  64. If equipped

    1. Connect the wire harness retainer to the coolant hose.
    2. Connect the block heater electrical connector and the wire harness retainer.

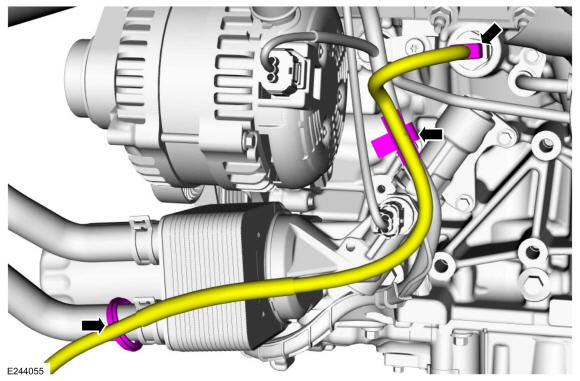

    GFD273007Courtesy of FORD MOTOR COMPANY
  65. Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
  66. Install the CAC inlet pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .

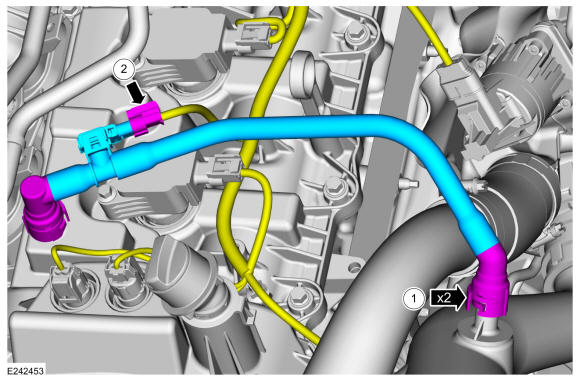

    1. Install the PCV tube and connect the quick release couplings. Refer to: Quick Release Coupling .
    2. Connect the crankcase pressure sensor electrical connector.
    GFD273008Courtesy of FORD MOTOR COMPANY
  67. Install the cooling module. Refer to: Cooling Module .
  68. Slide the engine appearance cover into the retaining bracket and install the retainers.

    Torque: 97 lb.in (11 Nm)

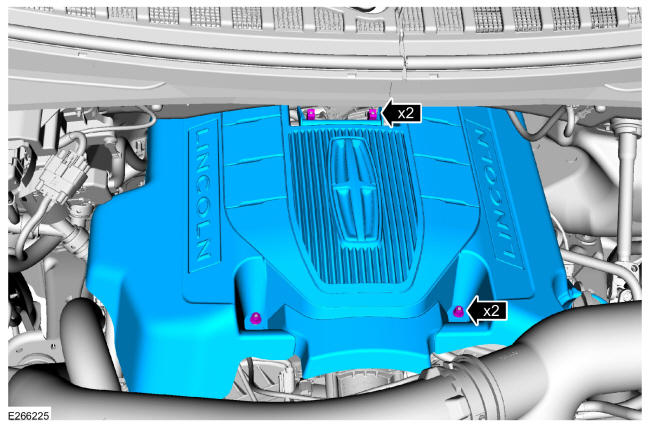

    GFD273009Courtesy of FORD MOTOR COMPANY

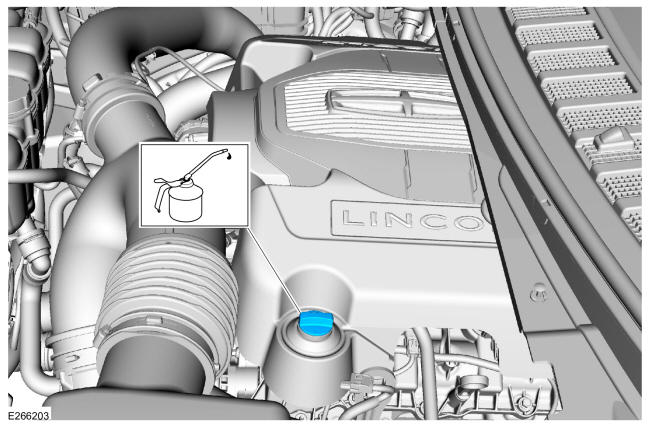

  69. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD273010Courtesy of FORD MOTOR COMPANY
  70. Connect the battery ground cable. Refer to: Battery Cables .
  71. If equipped.

    • Install the underbody shield and the bolts.

      Torque: 30 lb.ft (40 Nm)

    • Install the underbody shield and the bolts.

      Torque: 71 lb.in (8 Nm)

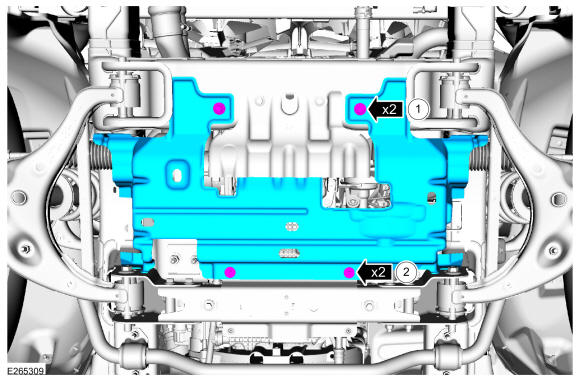

    GFD273011Courtesy of FORD MOTOR COMPANY

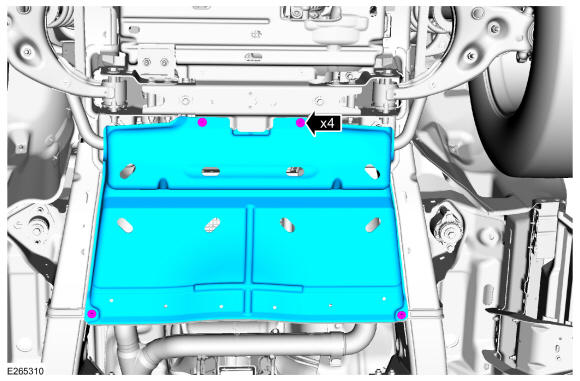

    • If equipped.Install the transmission housing cover and attach the retainer.

    • Install the bolts.

      Torque: 71 lb.in (8 Nm)

    GFD273012Courtesy of FORD MOTOR COMPANY

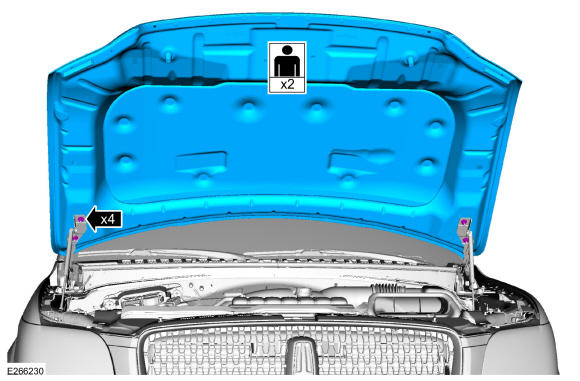

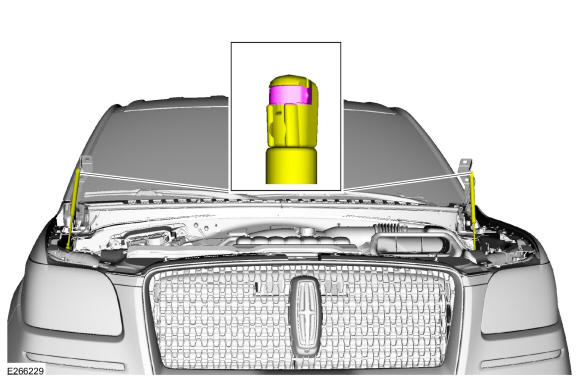

  72. Install the struts.
    GFD273013Courtesy of FORD MOTOR COMPANY
  73. NOTE: Align the index marks made during hood removal.

    Install the hood and the nuts.

    Torque: 18 lb.ft (25 Nm)

    GFD273014Courtesy of FORD MOTOR COMPANY
  74. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
  75. Start and check the exhaust system for leaks.
