Ignition Switch - Vehicles With: Keyless Vehicle System: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel center finish panel. Refer to: Instrument Panel Center Finish Panel .

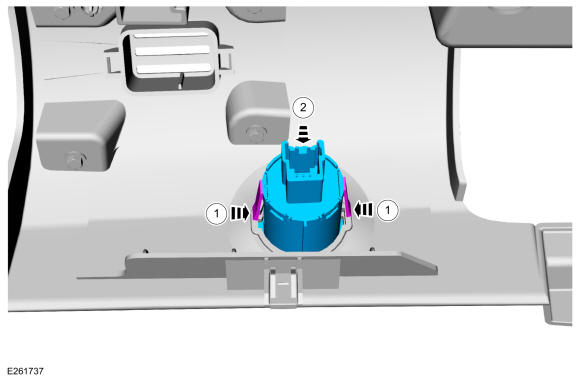

    1. Depress the tabs on the ignition switch.
    2. Remove the ignition switch.
GFD272145Courtesy of FORD MOTOR COMPANY
