Heated Steering Wheel Module (HSWM): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current HSWM installed. If the current HSWM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the HSWM following the on-screen instructions.
Remove the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the steering column reinforcement panel.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

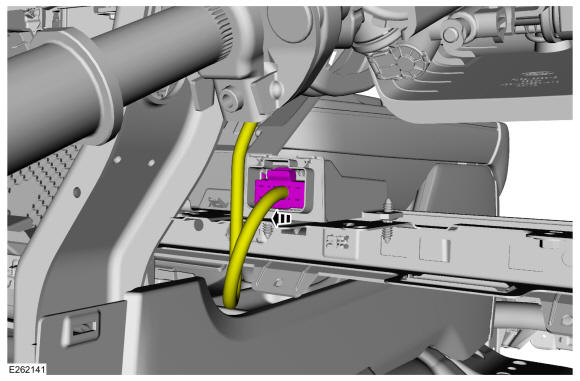

Disconnect the HSWM electrical connector.

Courtesy of FORD MOTOR COMPANY

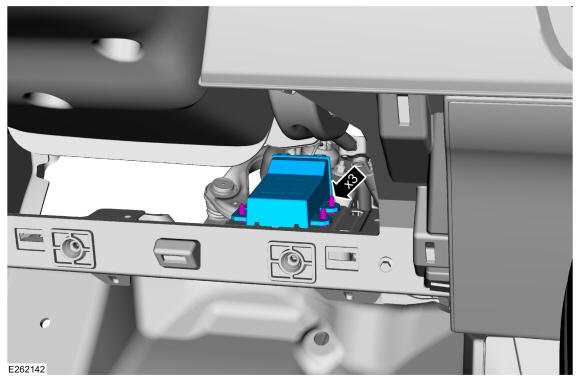

Remove the retainers and the HSWM.

Courtesy of FORD MOTOR COMPANY
