DTC P0201 Injector #1: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

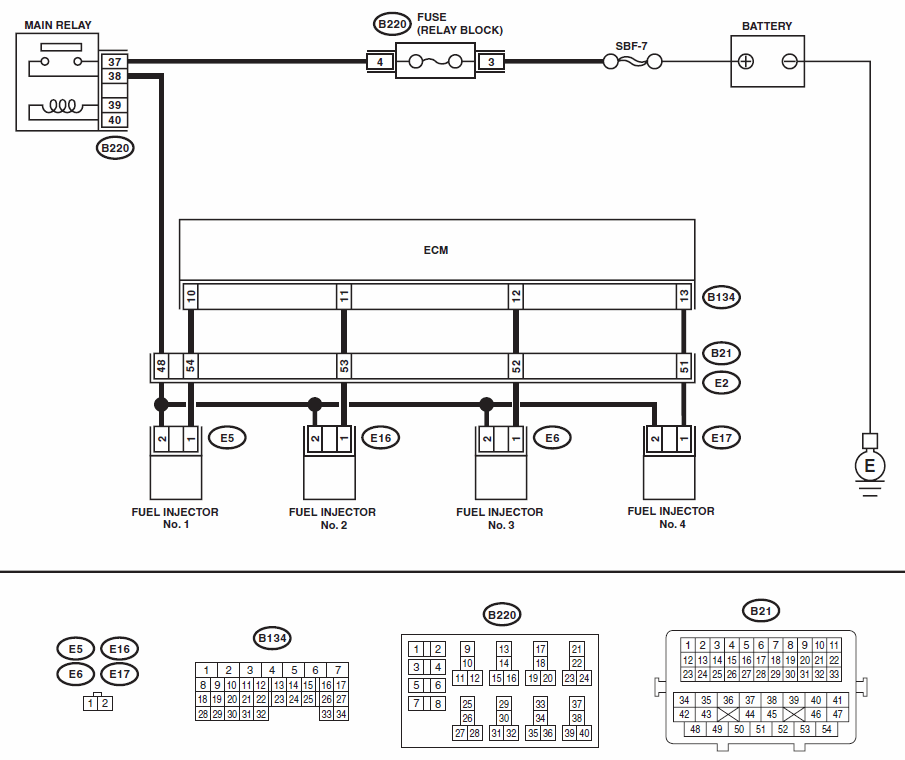

Fig 1: Fuel Injector #1, #2, #3, #4 - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSIS PROCEDURE

Step	Check	Yes	No
1 CHECK POWER SUPPLY TO FUEL INJECTOR. Turn the ignition switch to OFF. Disconnect the connector from fuel injector. Turn the ignition switch to ON. Measure the voltage between fuel injector connector and the engine ground. Connector & terminal DTC P0201; (E5) No. 2 (+) - Engine ground (-) DTC P0202; (E16) No. 2 (+) - Engine ground (-) DTC P0203; (E6) No. 2 (+) - Engine ground (-) DTC P0204; (E17) No. 2 (+) - Engine ground (-)	Is the voltage 10 V or more?	Go to step 2 .	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit in harness between main relay and fuel injector connector Poor contact of main relay connector Poor contact of coupling connector
2 CHECK HARNESS BETWEEN ECM AND FUEL INJECTOR CONNECTOR. Turn the ignition switch to OFF. Disconnect the connector from ECM. easure the resistance between fuel injector connector and engine ground. Connector & terminal DTC P0201; (E5) No. 1 - Engine ground DTC P0202; (E16) No. 1 - Engine ground DTC P0203; (E6) No. 1 - Engine ground C P0204; (E17) No. 1 - Engine ground	Is the resistance 1 MΩ or more?	Go to step 3 .	Repair the short circuit to ground in harness between ECM connector and fuel injector connector.
3 CHECK HARNESS BETWEEN ECM AND FUEL INJECTOR CONNECTOR. Measure the resistance of harness between ECM connector and fuel injector connector. Connector & terminal DTC P0201; (B134) No. 10 - (E5) No. 1 DTC P0202; (B134) No. 11 - (E16) No. 1 DTC P0203; (B134) No. 12 - (E6) No. 1 DTC P0204; (B134) No. 13 - (E17) No. 1	Is the resistance less than 1 Ω?	Go to step 4 .	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit in harness between ECM connector and fuel injector connector Poor contact of coupling connector
4 CHECK FUEL INJECTOR. Measure the resistance between fuel injector terminals on the corresponding cylinder. Terminals No. 1 - No. 2:	Is the resistance 5 - 20 Ω?	Go to step 5 .	Replace the fuel injector. Refer to FUEL INJECTOR
5 CHECK FOR POOR CONTACT. Check for poor contact of ECM connector.	Is there poor contact of ECM connector?	Repair the poor contact of ECM connector.	Go to step 6 .
6 CHECK FUEL INJECTOR OPERATION. Connect all connectors. Start the engine. Check if the corresponding fuel injector emits operating sound. NOTE: Use a sound scope to check the operating sound.	Does the fuel injector emit operating sound?	Even if DTC is detected, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again. NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.	Repair the poor contact of fuel injector connector.
