Steering Column Telescopic Motor: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the steering column. Refer to: Steering Column .

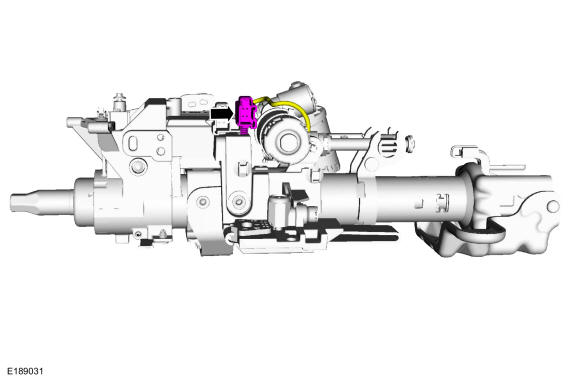

- Detach the telescopic motor electrical connector retainer from the steering column.

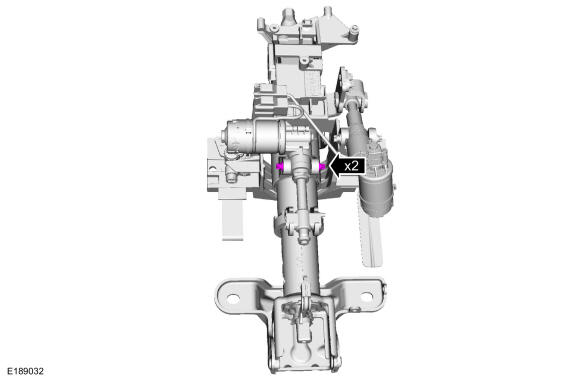

- Remove the telescopic motor screws.
Torque: 62 lb.in (7 Nm)

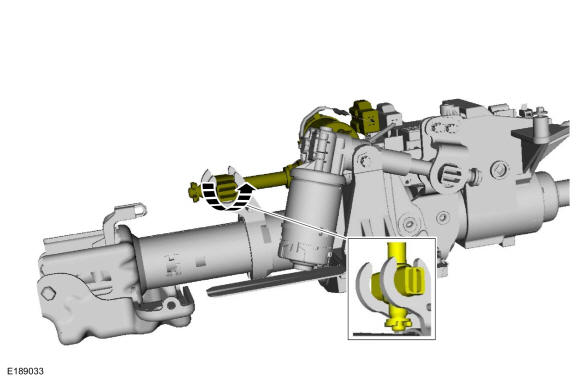

- Rotate the trunnion nut.

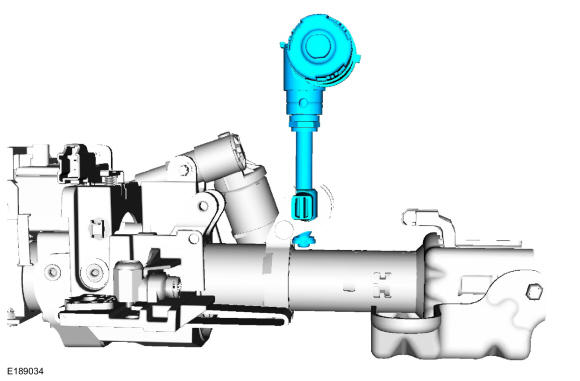

- Remove the telescopic motor.
