System Diagram - Adjustable Pedals
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

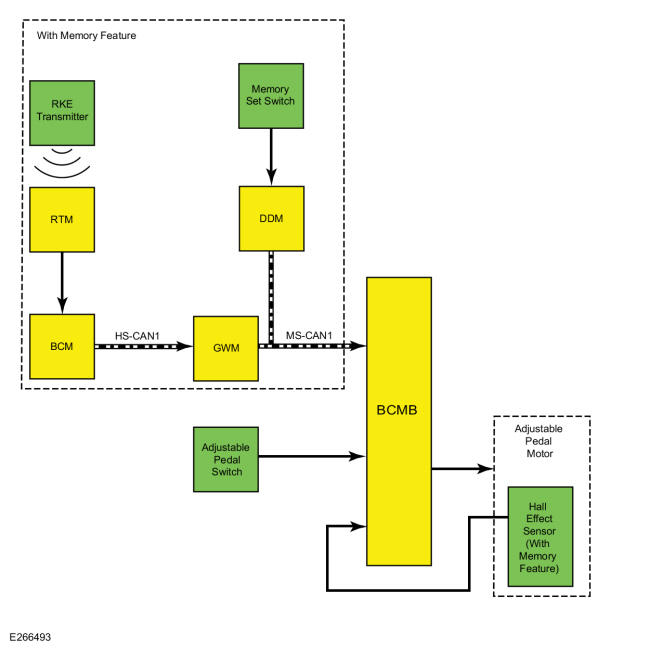

| Item |
Description |
| 1 |
BCMB |
| 2 |
MS-CAN1 |
| 3 |
HS-CAN1 |
| 4 |
Adjustable Pedal Motor |
| 5 |
Hall Effect Sensor (With Memory Feature) |
| 6 |
With Memory Feature |
| 7 |
RKE Transmitter |
| 8 |
Adjustable Pedal Switch |
| 9 |
BCM |
| 10 |
RTM |
| 11 |
GWM |
| 12 |
Memory Set Switch |
| 13 |
DDM |
